The HBP-1 from Demeter is a hand-wired preamp specifically designed for bass guitar that provides both tube and solid-state tones. It features a high voltage (250V) tube front end with preamp gain and passive tone controls, a two-band solid-state parametric equalizer tuned for bass, and an active effects loop with send and return level controls. In addition, there is a balanced XLR output switchable for a mic or line level signal to connect to a mixer/recording console or a power amp with an XLR input, as well as both balanced and unbalanced 1/4" TRS line level outputs for connection to an amplifier. A dedicated tuner output and a mute switch allow you to tune up silently.
If you own a Demeter bass amplifiers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Demeter HBP-1 H Series Tube Bass Preamplifier HBP-1 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Demeter HBP-1 H Series Tube Bass Preamplifier HBP-1:
Specifications
Inputs
1/4" Active Instrument x1 1/4" Passive Instrument x1 1/4" FX Return x1 IEC Power Cable x1
Outputs
1/4" Tuner x1 1/4" FX Send x1 1/4" Unbalanced Line Out x1 XLR Balanced Line Out x1
Controls

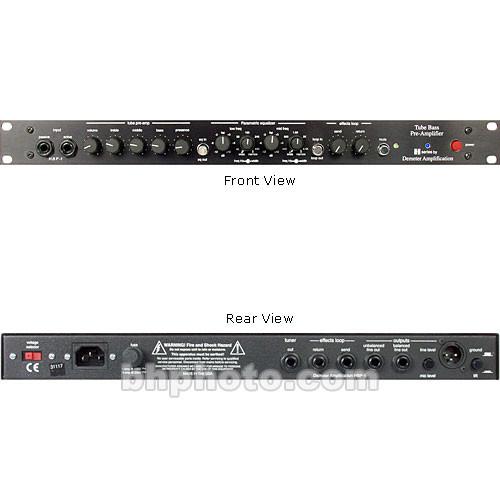

Front Panel: Volume Control x1 Treble Control x1 Middle Control x1 Bass Control x1 Presence Control x1 EQ In/Out Switch x1 EQ Low Frequency dB Level Control x1 EQ Low Frequency Hz Control x1 EQ Low Frequency Width Control x1 EQ Mid Frequency dB Level Control x1 EQ Mid Frequency Hz Control x1 EQ Mid Frequency Width Control x1 FX Loop In/Out Switch x1 FX Send Level Control x1 FX Return Level Control x1 Mute On/Off Switch x1 Power On/Off Switch x1
Rear Panel: Line Level/Mic Level Switch x1 Ground Lift Switch Voltage Selector Switch
Input Impedance
1 MOhm
Minimum Load Impedance
600 ohms
Maximum Output
+24 dBV @ 600 ohms + 28 dB
Gain
Adjustable to +10 dB Mid 440 Hz to 4 kHz EQ Gain: +/-15 dB
Signal to Noise Ratio
-80 dB
THD
0.5%
Frequency Response
10 Hz to 40 kHz
Tube
12AX7a x1
Parametric Equalizer
Q or width continuously variable Low 40 to 440 Hz Mid 440 Hz to 4.4 kHz
