User manual DeSisti LED Leonardo 120W Fresnel P.O. - Daylight LD321.110

Operating instructions and pdf manual for use - DeSisti LED Leonardo 120W Fresnel P.O. - Daylight LD321.110 User manual, User manual DeSisti LED Leonardo 120W Fresnel P.O. - Daylight LD321.110, DeSisti, LED, Leonardo, 120W, Fresnel, P.O., Daylight,


User manual for DeSisti LED Leonardo 120W Fresnel P.O. - Daylight LD321.110

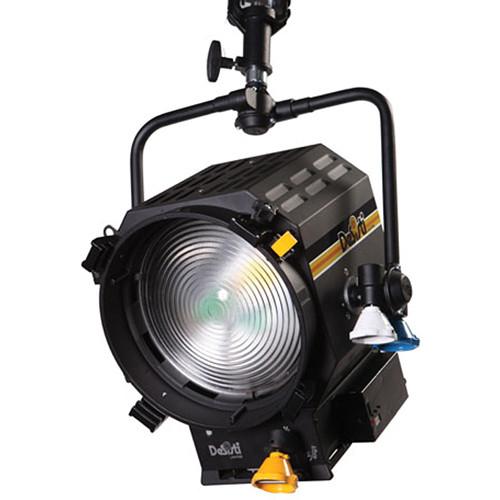

DeSisti LED Leonardo 120W Fresnel P.O. - Daylight LD321.110
  • Manufacturer: DeSisti
  • Basic description and contents of package
  • Product classification: Lighting & Studio - Continuous Lighting - LED Lights
  • Safety instructions
  • Startup and operation of the led lights
  • Tips for setting up your DeSisti
  • Settings and expert assistance
  • Contact DeSisti service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the DeSisti LED Leonardo 120W Fresnel P.O. - Daylight LD321.110, which address similar problems with connecting and setting up LED Lights DeSisti.



User manual for the DeSisti LED Leonardo 120W Fresnel P.O. - Daylight LD321.110

The user manual for the DeSisti LED Leonardo 120W Fresnel P.O. - Daylight LD321.110 provides necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - LED Lights.

Built on the foundation of their extremely popular Leonardo Fresnel, the DeSisti LED Leonardo 120W Fresnel M.O. - Daylight Balanced (120 VAC) offers the same silky controls, system compatibility and sturdy construction but with a twist. This is a 120W cool-running luminaire that provides high output with very low energy consumption in a lightweight form factor.
If you own a DeSisti led lights and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the DeSisti LED Leonardo 120W Fresnel P.O. - Daylight LD321.110 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for DeSisti LED Leonardo 120W Fresnel P.O. - Daylight LD321.110Download user manual for DeSisti LED Leonardo 120W Fresnel P.O. - Daylight LD321.110
(PDF file, 1.07 MB)
Additional parameters of the DeSisti LED Leonardo 120W Fresnel P.O. - Daylight LD321.110:
Light Source LED
Rating 120W
Color Temperature Daylight Balanced C.C.T. (Correlated Color Temperature)
Lens Fresnel and Plano Convex 9.8" (250 mm)
Photometrics Flood
8,337 lux/775 fc @ 3.3' (1.0 m)
926 lux/86 fc @ 9.8' (3.0 m)
333 lux/31 fc @ 16.4' (5.0 m)
83 lux/8.0 fc @ 32.8' (10 m)
Light beam diameter with beam angle (50% center value): 64°
4.1' (1.25 m) @ 3.3' (1.0 m)
12.3' (3.75 m) @ 9.8' (3.0 m)
20.5' (6.25 m) @ 16.4' (5.0 m)
41' (12.5 m) @ 32.8' (10 m)
Light beam diameter with beam angle (10% center value): 80°
5.5' (1.68 m) @ 3.3' (1.0 m)
16.5' (5.03 m) @ 9.8' (3.0 m)
27.5' (8.39 m) @ 16.4' (5.0 m)
55.1' (16.8 m) @ 32.8' (10 m)
Spot
112,140 lux/10,418 fc @ 3.3' (1.0 m)
12,460 lux/1,158 fc @ 9.8' (3.0 m)
4,486 lux/417 fc @ 16.4' (5.0 m)
1,121 lux/104 fc @ 32.8' (10 m)
Light beam diameter with beam angle (50% center value): 9.0°
0.5' (0.16 m) @ 3.3' (1.0 m)
1.5' (0.47 m) @ 9.8' (3.0 m)
2.6' (0.79 m) @ 16.4' (5.0 m)
5.2' (1.57 m) @ 32.8' (10 m)
Light beam diameter with beam angle (10% center value): 18°
1.0' (0.32 m) @ 3.3' (1.0 m)
3.1' (0.95 m) @ 9.8' (3.0 m)
5.2' (1.58 m) @ 16.4' (5.0 m)
10.4' (3.17 m) @ 32.8' (10 m)
Mounting 1 1/8" (28 mm) stud
DMX 512 Connectors Yes
Dimming Manually or via DMX
Beam Angle 6.0 - 60 degrees
Power Requirements 120 VAC
Dimensions 21.8 x 16.5 x 14.2" (55.5 x 42 x 36 cm) with stud
Weight 32.5 lb (14.8 kg)
The user manual for the DeSisti LED Leonardo 120W Fresnel P.O. - Daylight LD321.110 can be downloaded in .pdf format if it did not come with your new led lights, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other DeSisti users keep a unique electronic library for DeSisti led lightss, where you can use our link to download the user manual for the DeSisti LED Leonardo 120W Fresnel P.O. - Daylight LD321.110.

The user manual lists all of the functions of the DeSisti LED Leonardo 120W Fresnel P.O. - Daylight LD321.110, all the basic and advanced features and tells you how to use the led lights. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from DeSisti service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the DeSisti LED Leonardo 120W Fresnel P.O. - Daylight LD321.110. User manuals are also available on the DeSisti website under Lighting & Studio - Continuous Lighting - LED Lights.
