User manual Digigram Aqilim FIT/LE AH Encoding Platform for IPTV VB2146A0701

Operating instructions and pdf manual for use - Digigram Aqilim FIT/LE AH Encoding Platform for IPTV VB2146A0701 User manual, User manual Digigram Aqilim FIT/LE AH Encoding Platform for IPTV VB2146A0701, Digigram, Aqilim, FIT/LE, AH, Encoding, Plat


User manual for Digigram Aqilim FIT/LE AH Encoding Platform for IPTV VB2146A0701

Digigram Aqilim FIT/LE AH Encoding Platform for IPTV VB2146A0701
  • Manufacturer: Digigram
  • Basic description and contents of package
  • Product classification: Professional Video - Studio & EFP Equipment - Streaming Media Solutions & Servers
  • Safety instructions
  • Startup and operation of the streaming media solutions & servers
  • Tips for setting up your Digigram
  • Settings and expert assistance
  • Contact Digigram service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Digigram Aqilim FIT/LE AH Encoding Platform for IPTV VB2146A0701, which address similar problems with connecting and setting up Streaming Media Solutions & Servers Digigram.



User manual for the Digigram Aqilim FIT/LE AH Encoding Platform for IPTV VB2146A0701

The user manual for the Digigram Aqilim FIT/LE AH Encoding Platform for IPTV VB2146A0701 provides necessary instructions for the proper use of the product Professional Video - Studio & EFP Equipment - Streaming Media Solutions & Servers.

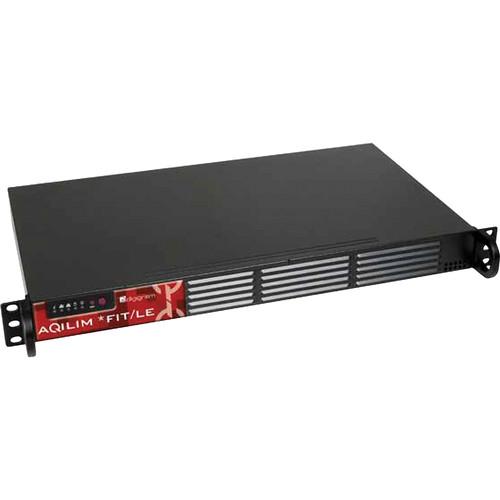

The 1RU Aqilim FIT/LE AH Encoding Platform for IPTV and Multi-Screen Distribution from Digigram is a professional video encoder that simplifies high-quality live event broadcasting over an IPTV network or the Internet. The Aqilim FIT/LE has flexible input options and encodes video up to 6 Mbps in H264/AVC. It is compatible with leading CDN providers.

This product is suitable for a range of new applications for live video, such as filmed radio, live distribution of corporate, sporting or news events, the creation of WebTV, live multi-screen video distribution, and live education via e-learning.
If you own a Digigram streaming media solutions & servers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Digigram Aqilim FIT/LE AH Encoding Platform for IPTV VB2146A0701 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Digigram Aqilim FIT/LE AH Encoding Platform for IPTV VB2146A0701:
Channels Number: Single input
Function: Encoding
Connectors 4 x USB, port
1 x PS2, port
1 x RJ45, Ethernet port ETH0
1 x RJ45, Ethernet port ETH1
1 x VGA, monitor output
1 x HDMI, input
1 x HDMI, monitoring output
1 x D-Sub, analog input
AC power jack, power input
Input Video Resolutions SD: 625i/50 PAL; 525i/59.94 NTSC
HD: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60
Video Output Format RTMP Streaming for Adobe Flash
MPEG Transport Stream over UDP-RTP/IP
Optional: Apple HTTP live streaming for Apple and Android devices (FTP, Webdav)
Video Specifications H264/AVC Baseline/Main/High Profile
VBR, CBR
4:2:0 8-bit
Video encoding rate: up to 6 Mb/s
Audio Specifications AAC Series
Characteristics Remote: Web-based management, XML API, NTP
Low noise, Easy to use, Compatible with CDNs protocols and authentications
Security: Fan and temperature control
Presets: Up to 100 different encoding/decoding profiles
Temperature Operating: 50 to 95°F (10 to 35°C)
Storage: -4 to 158°F (-20 to 70°C)
Compliance EMC: EN55022, EN55024
Safety: EN 60950
Power Supply 100 - 240 VAC, 50 W maximum consumption
Dimensions 19.00 x 1.75 x 9.80" (48.3 x 4.4 x 24.9 cm)
Weight 7.9 lb (3.6 kg)
The user manual for the Digigram Aqilim FIT/LE AH Encoding Platform for IPTV VB2146A0701 can be downloaded in .pdf format if it did not come with your new streaming media solutions & servers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Digigram users keep a unique electronic library for Digigram streaming media solutions & serverss, where you can use our link to download the user manual for the Digigram Aqilim FIT/LE AH Encoding Platform for IPTV VB2146A0701.

The user manual lists all of the functions of the Digigram Aqilim FIT/LE AH Encoding Platform for IPTV VB2146A0701, all the basic and advanced features and tells you how to use the streaming media solutions & servers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Digigram service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Digigram Aqilim FIT/LE AH Encoding Platform for IPTV VB2146A0701. User manuals are also available on the Digigram website under Professional Video - Studio & EFP Equipment - Streaming Media Solutions & Servers.
