User manual Digigram VX222HR - PCI Universal Digital Audio Card VB1826A0201

Operating instructions and pdf manual for use - Digigram VX222HR - PCI Universal Digital Audio Card VB1826A0201 User manual, User manual Digigram VX222HR - PCI Universal Digital Audio Card VB1826A0201, Digigram, VX222HR, PCI, Universal, Digital, Au


User manual for Digigram VX222HR - PCI Universal Digital Audio Card VB1826A0201

Digigram VX222HR - PCI Universal Digital Audio Card VB1826A0201
  • Manufacturer: Digigram
  • Basic description and contents of package
  • Product classification: Pro Audio - Computer Audio - Audio Interfaces & Systems
  • Safety instructions
  • Startup and operation of the audio interfaces & systems
  • Tips for setting up your Digigram
  • Settings and expert assistance
  • Contact Digigram service
  • Troubleshooting
  • Warranty information
  • Price: 580 USD
We recommend checking out our discussion threads on the Digigram VX222HR - PCI Universal Digital Audio Card VB1826A0201, which address similar problems with connecting and setting up Audio Interfaces & Systems Digigram.



User manual for the Digigram VX222HR - PCI Universal Digital Audio Card VB1826A0201

The user manual for the Digigram VX222HR - PCI Universal Digital Audio Card VB1826A0201 provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

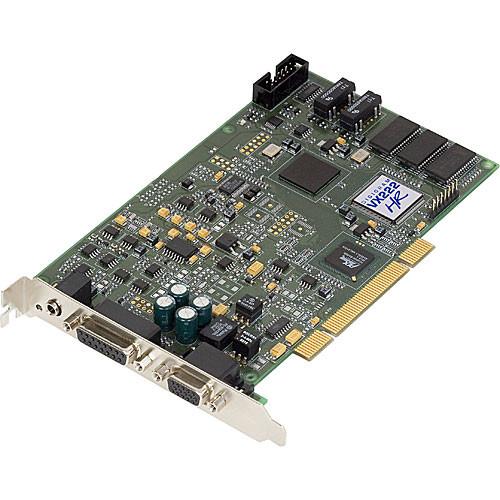

The VX222HR from Digigram is a short-form PCI card that provides 2 channels of analog or digital audio input, while simultaneously outputting a stereo digital output or 2 mono channels of analog audio. Useful for broadcast, post/music production, or for the theater, the card provides excellent audio performance with pristine sound quality and the ability to perform 24/7 in any demanding environment.
If you own a Digigram audio interfaces & systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Digigram VX222HR - PCI Universal Digital Audio Card VB1826A0201 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Digigram VX222HR - PCI Universal Digital Audio Card VB1826A0201Download user manual for Digigram VX222HR - PCI Universal Digital Audio Card VB1826A0201
(PDF file, 0.99 MB)
Additional parameters of the Digigram VX222HR - PCI Universal Digital Audio Card VB1826A0201:
Format Universal PCI
Converters 24-bit
Sample Rates Programmable from 32kHz to 192kHz
Analog Input 2 x XLR (on included breakout cable)
Analog Output 2 x XLR (on included breakout cable)
1 x 1/8" stereo mini Headphone (on card)
Digital Input 1 x XLR AES/EBU (on included breakout cable)

Can function as S/PDIF

Digital Output 1 x XLR AES/EBU (on included breakout cable)

Can function as S/PDIF

Other Connectors On card:
1 x 15pts SubD HD
1 x 15-pin SubD

On included breakout cable:
1 x RCA coaxial LTC In
1 x 9-pin SubD Female (GPIO)

MIDI In/Out No
Sync In/Out AES/EBU In
LTC In
Headphone Output Yes
THD + N Input: <-97dB, 1kHz @ -2.0dBfs
Output: <-95dB, 1kHz @ -2.0dBfs
Dynamic Range Input: >104dB, A-weighted
Output: >106dB, A-weighted
Frequency Response 20Hz to 20kHz, +0/-0.3dB @ 48kHz
20Hz to 40kHz, +0/-0.4dB @ 96kHz
20Hz to 80kHz, +0/-1.1dB @ 192kHz
Minimum System Requirements CPU power and memory required depend on the operating system and the audio application used
One free PCI (or PCI-X) slot
Windows XP/Server 2003 and Vista
Specialties Can be used in 32-bit/33MHz 5V PCI slots as well as in 64-bit/66MHz 3.3V keyed PCI slots
Packaging Info
Package Weight 1.45 lb
Box Dimensions (LxWxH) 8.6 x 5.7 x 3.3"
The user manual for the Digigram VX222HR - PCI Universal Digital Audio Card VB1826A0201 can be downloaded in .pdf format if it did not come with your new audio interfaces & systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Digigram users keep a unique electronic library for Digigram audio interfaces & systemss, where you can use our link to download the user manual for the Digigram VX222HR - PCI Universal Digital Audio Card VB1826A0201.

The user manual lists all of the functions of the Digigram VX222HR - PCI Universal Digital Audio Card VB1826A0201, all the basic and advanced features and tells you how to use the audio interfaces & systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Digigram service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Digigram VX222HR - PCI Universal Digital Audio Card VB1826A0201. User manuals are also available on the Digigram website under Pro Audio - Computer Audio - Audio Interfaces & Systems.
