User manual for the Digital Watchdog MEGApix MPTZ5XFM PTZ Dome Camera DWC-MPTZ5XFM

The user manual for the Digital Watchdog MEGApix MPTZ5XFM PTZ Dome Camera DWC-MPTZ5XFM provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

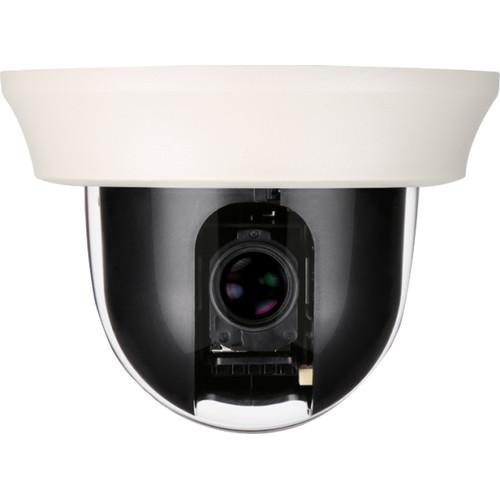

The MEGApix MPTZ5XFM PTZ Dome Camera from Digital Watchdog is a triple codec pan, tilt, zoom network camera that provides 1080p megapixel resolution at 30 frames per second. It supports panning for up to 350° and tilting for up to 90°. Thanks to functionalities such as true day-and-night, 3D-DNR, and WDR, the camera will deliver the best images in any type of environment. MPTZ5X's 5 to 25mm lens offers 5x optical zoom controlled from the camera's web-viewer without the need for additional cabling. It supports Power over Ethernet which allows a single cable to provide both data connection and electrical power. The camera also supports a microSD card for storing the recorded videos.
If you own a Digital Watchdog wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Digital Watchdog MEGApix MPTZ5XFM PTZ Dome Camera DWC-MPTZ5XFM in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Digital Watchdog MEGApix MPTZ5XFM PTZ Dome Camera DWC-MPTZ5XFM:
Specifications
Image Sensor 1/2.8" CMOS sensor
Total Pixels (H x V) 1920 x 1080
Minimum Illumination f/3.5 (30 IRE): 0.1 lux for color
f/3.5 (30 IRE): 0.01 lux for B/W
Lens
Focal Length 5 to 25 mm, f/3.5 to 3.7
Lens Type Auto-focus
Zoom Digital: 12x
Optical: 5x
Horizontal Angle of View Wide: 49.2°
Tele: 10.52°
Sensor In / Out 1 / 1
Audio
Compression G.711 (8 kHz)
Input / Output 1 x Line in / 1 x Line out; mono
Operational
Brightness 0 to 20
Shutter Modes Auto, Manual
Digital Slow Shutter Off, up to 8x
Digital Noise Reduction (DNR) Off / Level 1 / Level 2 / Level 3
AGC (Automatic Gain Control) Maximum 41 dB
BLC Off / On
WDR Mode Low / Mid / High
Sharpness 0 to 10
Flip / Mirror Off / On
Alarm Notifications Notifications via e-mail
PTZ
Range 350° pan, 90° tilt
Preset 255
Sequence 4 (approximately 5 minutes for each sequence)
Swing 8, 1.4° to 180°/sec
Tour 8 (maximum 20 entries per tour)
Speed Preset: 120°/sec
Manual: 120°/sec maximum
Network
Interface 802.3 compliance 10/100 LAN
Video Compression H.264, MJPEG, MJPEG (super fine to low)
Resolution 1920 x 1080 (16:9) to 320 x 240 (4:3)
Frame Rate Up to 30 fps at all resolutions
Protocol IPv4, IPv6, TCP/IP, HTTP, DHCP, PPPoE, ICMP, ARP, RARP, RTSP, NTP, UDP, Multicast, UPNP, SNMP, RTP/RTS, FTP
Maximum User Access 5 users
ONVIF Conformance Yes
Web Viewer OS: Windows XP / Vista / 7, MAC OS
Browser: Internet Explorer, Chrome, Firefox, Safari
Video Management Software DW Spectrum
Memory Slots 24 hours recording to microSDHC card (32 GB recommended)

Card not included

Environmental
Operating Temperature 14 to 131°F (-10 to 55°C)
Operating Humidity Less than 90% (non-condensing)
Certifications CE, FCC, RoHS
Electrical
Power Requirement 12 VDC, PoE (IEEE802.3af class 3), 700 mA maximum
Power Consumption PTZ Idle: 5 W, 430 mA
PTZ in Action: 8 W, 670 mA
Mechanical
Material Polycarbonate
Dimensions 4.3 x 5.9" (11.0 x 14.9 cm)
Weight 12.8 oz (362.9 g)
The user manual for the Digital Watchdog MEGApix MPTZ5XFM PTZ Dome Camera DWC-MPTZ5XFM can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Digital Watchdog users keep a unique electronic library for Digital Watchdog wired ip camerass, where you can use our link to download the user manual for the Digital Watchdog MEGApix MPTZ5XFM PTZ Dome Camera DWC-MPTZ5XFM.

The user manual lists all of the functions of the Digital Watchdog MEGApix MPTZ5XFM PTZ Dome Camera DWC-MPTZ5XFM, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Digital Watchdog service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Digital Watchdog MEGApix MPTZ5XFM PTZ Dome Camera DWC-MPTZ5XFM. User manuals are also available on the Digital Watchdog website under Surveillance - Surveillance Video - Wired IP Cameras.
