User manual for the Dorrough 280-DE Digital Loudness Meter-Horizontal Mount 280-DE

The user manual for the Dorrough 280-DE Digital Loudness Meter-Horizontal Mount 280-DE provides necessary instructions for the proper use of the product Pro Audio - General Accessories - Metering.

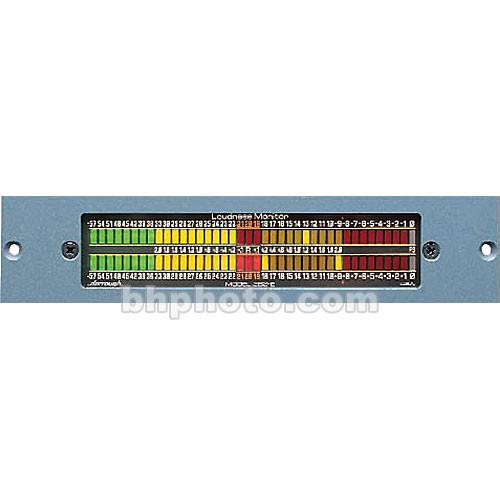

The Dorrough 280-DE Digital Double Scale Loudness Meter -57dB 32-96k is a two channel digital loudness meter in AES/EBU linear style, designed for insertion directly into the digital data-stream. It has a dual-channel, horizontal linear display, with -57dB headroom, and an external power supply. This model is designed for console mounting, rackmounting, or custom installations. It is built with XLR, DIP switch assignments, and mini DIN pin out. A mating connector is supplied, prewired to the power pack, also supplied. Wired remote control option is also available.
If you own a Dorrough metering and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Dorrough 280-DE Digital Loudness Meter-Horizontal Mount 280-DE in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Dorrough 280-DE Digital Loudness Meter-Horizontal Mount 280-DE:
Input Impedance 20k Ohm balanced, 10k Ohm single-ended, ± 2%
Common Mode Rejection Ratio 80dB at 60Hz, 60dB at 20KHz (balanced mode)
Input Sensitivity -10dB for full-scale display
Maximum Input Level +24dB before clipping
Signal Path Bandwidth 10Hz - 25KHz, ±.25dB
Signal Path Distortion Less than 1% THD at 1KHz, +24dB input
Sum Error Less than 0.1dB at 1KHz
Difference Error Less than 0.1dB at 1KHz
Display Resolution 40 LEDs, 1dB/LED except model 60D, ± 0.25dB.
Step Size Error ±0.25dB
Absolute Error Full Scale -39dBu: ±0.25dB model
Drift ±0.25dB
Average Time Constant 600mS, ±6%
Peak Acquisition Period 10uS, to full-scale, sine input 25KHz
Peak Attack Period Virtually Instantaneous
Peak Decay Period 180mS, from full-scale to all LEDs off
Display Update Rate Approximately 10mS
Display Duty Cycle Display Time, AVERAGE, PEAK HOLD - 75%; Display Time, PEAK - 100%
Power Supply Input Range 117/237VAC RMS, -20% to +10%, 50-60Hz
Calibration Controls None needed
User Controls Left/Right input sensitivity Option DIP Switch

A) Peak Auto [ON]

B) Difference Mode [ON/OFF]

C) Over Level Alarm [ENABLE]

D) Under Level Alarm [ENABLE]

E) Auto ARMP

User Port DB-9 Connector

A) Alarm relay closure contacts 1 form C, 1A, 30V AC or DC

B) Mode control switch (user supplied)

C) PEAK function switch (user supplied)
Dimensions (WxDxH) 5.0 x 7.0 x 1.5" (2.0 x 2.8 x 0.6cm)
Weight Not specified by the manufacturer
Packaging Info
Package Weight 2.25 lb
Box Dimensions (LxWxH) 22.0 x 10.5 x 4.5"
The user manual for the Dorrough 280-DE Digital Loudness Meter-Horizontal Mount 280-DE can be downloaded in .pdf format if it did not come with your new metering, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Dorrough users keep a unique electronic library for Dorrough meterings, where you can use our link to download the user manual for the Dorrough 280-DE Digital Loudness Meter-Horizontal Mount 280-DE.

The user manual lists all of the functions of the Dorrough 280-DE Digital Loudness Meter-Horizontal Mount 280-DE, all the basic and advanced features and tells you how to use the metering. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Dorrough service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Dorrough 280-DE Digital Loudness Meter-Horizontal Mount 280-DE. User manuals are also available on the Dorrough website under Pro Audio - General Accessories - Metering.
