User manual for the DPA Microphones d:vote 4099P Stereo Microphone System VO4099-P

The user manual for the DPA Microphones d:vote 4099P Stereo Microphone System VO4099-P provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Instrument.

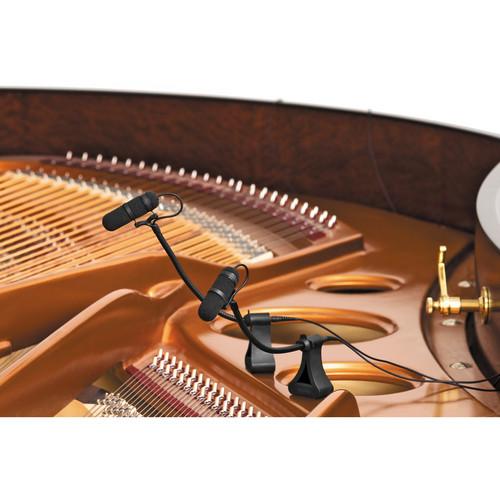

The DPA Microphones d:vote 4099P Stereo Microphone System for Piano is a piano miking solution that delivers a high level of isolation on stage while providing clean and transparent stereo sound quality with realistic dynamics. The system comes with everything you need including two mics, windscreens and shock mounts, magnet mounts and two XLR adapters. The mics and magnetic mounts afford realistic capture of a piano. Plus, they work for closed lid scenarios as well. The system provides stable and repeatable positioning. The mics can also be positioned at different angles. The mounts will work with magnetic surfaces on other instruments as well.
If you own a DPA Microphones instrument and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the DPA Microphones d:vote 4099P Stereo Microphone System VO4099-P in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the DPA Microphones d:vote 4099P Stereo Microphone System VO4099-P:
Specifications
    Directional Pattern Supercardioid
    Principle of Operation Pressure gradient
    Cartridge Type Pre-polarized condenser
    Frequency Range Regular: 20 Hz - 20 kHz
    ± 2 dB, 7.9" (20 cm) Distance: 80 Hz - 15 kHz (with 2 dB soft boost at 10 - 12 kHz)
    Sensitivity 6 mV/Pa
    -44.5 dB re. 1 V/Pa (nominal ± 3 dB at 1 kHz)
    Equivalent Noise A-weighted: typ. 23 dB(A) re. 20 µPa (max. 26 dB - A)
    Signal to Noise Ratio A-weighted re. 1 kHz at 1 Pa (94 dB SPL): 71 dB
    Total Harmonic Distortion <1% up to 123 dB SPL peak
    <1% up to 120 dB SPL RMS sine
    Dynamic Range 100 dB
    SPL 142 dB (max peak before clipping)
    Output Impedance From MicroDot: 30 - 40 ohms
    From DAD6001: 100 ohms
    Cable Drive Capability Up to 984' (300 m) with DAD6001 XLR adapter
    Output Balance Principle Signal balanced with DAD6001 XLR adapter
    Common Mode Rejection Ratio >60 dB from 50 Hz - 15 kHz with DAD6001 XLR adapter
    Power Supply Min. 5 V to max 50 V through DPA adapter for wireless systems, 48 V phantom power ± 4 V with DAD6001 XLR adapter (for full performance)
    Current Consumption Typ. 1.5 mA (microphone)
    3.5 mA with DAD6001 XLR adapter
    Connector MicroDot
    Color Black
    Polarity Positively increasing sound pressure produces positive-going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter)
    Sensitivity Selection ± 1 dB (tolerance at 1 kHz)
    Temperature Range 40 to 113°F (-40 to 45°C)
    Relative Humidity Up to 90%
    Length Gooseneck: 5.5" (40 mm)
    Microphone: 1.8" (45 mm)
    Cable: 6' (1.8 m)
    Diameter Capsule: 0.2" (5.4 mm)
    Weight Microphone: 1.62 oz (46 g)
    Packaging Info
    Package Weight 0.9 lb
    Box Dimensions (LxWxH) 7.8 x 4.6 x 2.1"
