User manual Draper 108410ENLP 60 x 96" Silhouette/Series E 108410ENLP

Operating instructions and pdf manual for use - Draper 108410ENLP 60 x 96" Silhouette/Series E 108410ENLP User manual, User manual Draper 108410ENLP 60 x 96" Silhouette/Series E 108410ENLP, Draper, 108410ENLP, 60, x, 96, Silhouette/Series, E, 10841


User manual for Draper 108410ENLP 60 x 96" Silhouette/Series E 108410ENLP

Draper 108410ENLP 60 x 96
  • Manufacturer: Draper
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projection Screens - Electric Screens (Wide Formats)
  • Safety instructions
  • Startup and operation of the electric screens (wide formats)
  • Tips for setting up your Draper
  • Settings and expert assistance
  • Contact Draper service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Draper 108410ENLP 60 x 96" Silhouette/Series E 108410ENLP, which address similar problems with connecting and setting up Electric Screens (Wide Formats) Draper.



User manual for the Draper 108410ENLP 60 x 96" Silhouette/Series E 108410ENLP

The user manual for the Draper 108410ENLP 60 x 96" Silhouette/Series E 108410ENLP provides necessary instructions for the proper use of the product A/V Presentation - Projection Screens - Electric Screens (Wide Formats).

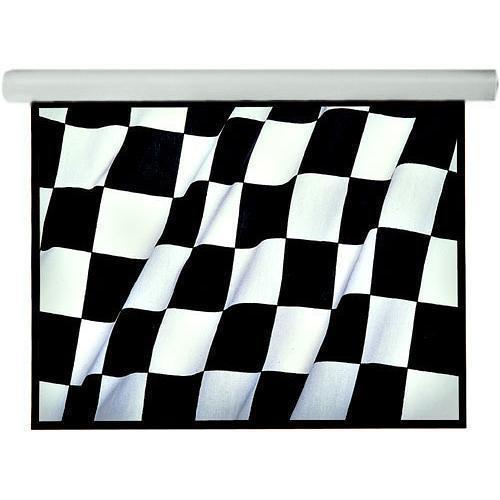

The 108410ENLP 60 x 96" Silhouette/Series E Screen from Draper is housed in a white, curved aluminum case, and can be mounted on the wall or ceiling. The screen and dowel retract completely inside the case. An included three-position wall switch provides up, down, and stop controls. The low voltage controller is built into the motor, simplifying installation. The LVC is compatible with IR and RF transmitters and receivers (sold separately), which can be used to control the screen from your couch or even from another room. The included 3-button wall switch operates the screen and sets limit switches. A 25' data cable is included to connect the switch to the LVC. With Plug n Play, a 10' extension cord connects from the screen's junction box to your electrical outlet, keeping you from having to hire an electrician to do the wiring.

Ecomatt XT700E is PVC-free, as it's made of 100% polyester yarn. As a part of Draper's OptiView family of screen surfaces, Ecomatt is self-supporting and does not require tensioning to lay flat. The surface provides an accurate color balance over a full 180° field. Gain at 0° is 0.7. Draper recommends this surface in rooms where ambient light can be reasonably controlled. The surface can be cleaned with a feather duster and is fully recyclable. Ecomatt is GREENGUARD Children and Schools certified and Cradle to Cradle Silver certified. It is also flame-retardant to NFPA-701 standards.
If you own a Draper electric screens (wide formats) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Draper 108410ENLP 60 x 96" Silhouette/Series E 108410ENLP in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Draper 108410ENLP 60 x 96" Silhouette/Series E 108410ENLP:
Specifications
    Type
    Front/Rear Projection Front
    Style Wall and ceiling
    Dimensions
    Viewing Area 60.0 x 96.0" / 152.4 x 243.8 cm
    Diagonal 113.0" / 287.0 cm
    Overall HxW 72.0 x 100.0 " / 182.9 x 254.0  cm
    Extra Top Drop 12" / 30.5 cm
    Surface
    Gain 0.7
    Viewing Angle 180 degrees
    Masking All four sides
    Black Backing Yes
    Controls
    Motor Standard
    Low Voltage Control Yes
    Included Controls Wall switch
    Casing
    Finish Aluminum
    Length 112.0" / 284.5 cm
    General
    Voltage 120 VAC/60 Hz
    Weight 45.0 lb / 20.4 kg , approximate
    The user manual for the Draper 108410ENLP 60 x 96" Silhouette/Series E 108410ENLP can be downloaded in .pdf format if it did not come with your new electric screens (wide formats), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Draper users keep a unique electronic library for Draper electric screens (wide formats)s, where you can use our link to download the user manual for the Draper 108410ENLP 60 x 96" Silhouette/Series E 108410ENLP.

    The user manual lists all of the functions of the Draper 108410ENLP 60 x 96" Silhouette/Series E 108410ENLP, all the basic and advanced features and tells you how to use the electric screens (wide formats). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Draper service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Draper 108410ENLP 60 x 96" Silhouette/Series E 108410ENLP. User manuals are also available on the Draper website under A/V Presentation - Projection Screens - Electric Screens (Wide Formats).
