User manual Drobo 20TB (4 x 5TB) 4-Bay USB 3.0 Storage Array Kit

Operating instructions and pdf manual for use - Drobo 20TB (4 x 5TB) 4-Bay USB 3.0 Storage Array Kit User manual, User manual Drobo 20TB (4 x 5TB) 4-Bay USB 3.0 Storage Array Kit, Drobo, 20TB, 4, x, 5TB, 4-Bay, USB, 3.0, Storage, Array, Kit,


User manual for Drobo 20TB (4 x 5TB) 4-Bay USB 3.0 Storage Array Kit

Drobo 20TB (4 x 5TB) 4-Bay USB 3.0 Storage Array Kit
  • Manufacturer: Drobo
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - Hard Drive Arrays
  • Safety instructions
  • Startup and operation of the hard drive arrays
  • Tips for setting up your Drobo
  • Settings and expert assistance
  • Contact Drobo service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Drobo 20TB (4 x 5TB) 4-Bay USB 3.0 Storage Array Kit, which address similar problems with connecting and setting up Hard Drive Arrays Drobo.



User manual for the Drobo 20TB (4 x 5TB) 4-Bay USB 3.0 Storage Array Kit

The user manual for the Drobo 20TB (4 x 5TB) 4-Bay USB 3.0 Storage Array Kit provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Hard Drive Arrays.

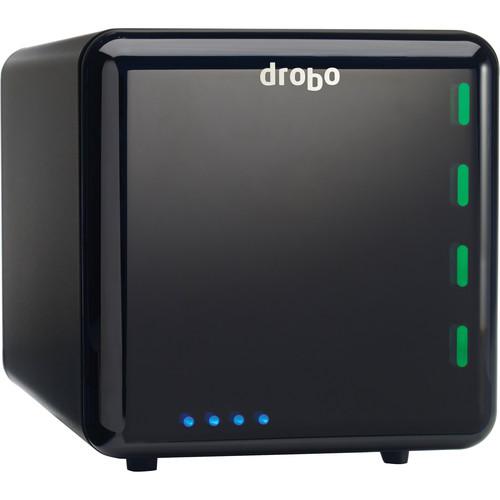

This B&H Kit includes the 3rd generation Drobo 4-Bay USB 3.0 Storage Array and four 5TB 3.5" SATA Hard Drives to provide 20TB of storage capacity for your Windows or Mac computer. This large amount of storage space allows you to back up your photos, movies, music, and files with room to spare. These hard drives can be quickly installed into Drobo's drive bays without the need for tools. Furthermore, these drives can be configured to protect your data against one or two simultaneous drive failures with BeyondRAID technology. This storage array comes equipped with one USB 3.0 and multiple indicator lights to ensure your Drobo is functioning properly.
If you own a Drobo hard drive arrays and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Drobo 20TB (4 x 5TB) 4-Bay USB 3.0 Storage Array Kit in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Drobo 20TB (4 x 5TB) 4-Bay USB 3.0 Storage Array Kit:
Specifications
    • Drobo 4-Bay USB 3.0 Storage Array (3rd Generation)
      Drives Up to four 3.5" SATA I/II/III hard disk drives or solid state drives
      Drives of any manufacturer, capacity, spindle speed, or cache
      No carriers or tools required
      Expandable by adding drives or hot-swapping drives with larger ones
      (Drives sold separately)
      Connectivity 1 x USB 3.0
      Operating System Support Mac OS X 10.7. or higher
      Windows 8/8.1 32 and 64 bit
      Windows 7 32 and 64 bit
      File System Support Mac OS X: HFS+
      Windows: NTFS
      Management Drive bay indicator lights, capacity gauge, status lights
      Drobo Dashboard version 2.6 or later
      BeyondRAID Features Thin provisioning
      Instant expansion
      Mixed drive size utilization
      Automatic protection levels
      Dual disk redundancy
      Virtual hot spare
      Data aware
      Drive re-ordering
      Power Requirements External power supply
      AC Input: 100-240 VAC-2A, 50/60 Hz
      DC Output: 12 V, 12.5 A, 150 W max
      Fan Single, fixed, variable speed cooling fan
      Additional Software Features Drive spin down
      Dim lights
      Hardware Features Carrier-less drive bays
      Power fail protection
      Kensington lock port for security (lock not included)
      Dimensions (WxHxD) 5.0 x 6.3 x 10.7" / 152.4 x 160.0 x 271.8 mm
      Packaging Info
      Box Dimensions (LxWxH) 13.9 x 12.0 x 10.1"
    • 4 x WD 5TB Network HDD Retail Kit (WD50EFRX, Red Drive)
      Capacity 5TB
      Cache 64MB
      Interface SATA 6Gb/s
      Rotational Speed IntelliPower
      Formatted Capacity 5TB
      User Sectors per Drive Not specified by manufacturer
      MTBF 1,000,000 hours
      Operating Systems Supported Windows/Mac
      Environmental Requirements
      Shock Operating Shock (Read): 65G, 2ms
      Non-Operating Shock: 250G, 2ms
      Acoustics Idle Mode: 25dBA (average)
      Seek Mode 0: 28dBA (average)
      Operating Temperature 32 to 158°F / 0 to 70°C
      Non-Operating Temperature -40 to 158°F -40 to 70°C
      Operating Humidity 5 to 95% non-condensing
      Vibration Operating: 0.004 g²/Hz (10 to 300 Hz)
      Non-operating: 0.05 g²/Hz (10 to 300 Hz)
      Operating
      Linear: 20-300 Hz, 0.75G (0 to peak)
      Electrical Specifications
      12 VDC 1.75 ± 10% A (peak)
      5 VDC Read/Write: 5.3 W
      Idle: 3.4 W
      Standby/Sleep: 0.4 W
      Other Specifications
      Dimensions (HxWxD) 1.028 x 4.00 x 5.787" / 26.1 x 101.6 x 147 mm
      Weight 1.65 lb / 0.75 kg
      Packaging Info
      Box Dimensions (LxWxH) 7.5 x 5.0 x 2.7"
    The user manual for the Drobo 20TB (4 x 5TB) 4-Bay USB 3.0 Storage Array Kit can be downloaded in .pdf format if it did not come with your new hard drive arrays, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Drobo users keep a unique electronic library for Drobo hard drive arrayss, where you can use our link to download the user manual for the Drobo 20TB (4 x 5TB) 4-Bay USB 3.0 Storage Array Kit.

    The user manual lists all of the functions of the Drobo 20TB (4 x 5TB) 4-Bay USB 3.0 Storage Array Kit, all the basic and advanced features and tells you how to use the hard drive arrays. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Drobo service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Drobo 20TB (4 x 5TB) 4-Bay USB 3.0 Storage Array Kit. User manuals are also available on the Drobo website under Computers & Solutions - Drives & Storage - Hard Drive Arrays.
