User manual Electro-Voice ETX-10P Portable Powered Loudspeaker F.01U.287.359

Operating instructions and pdf manual for use - Electro-Voice ETX-10P Portable Powered Loudspeaker F.01U.287.359 User manual, User manual Electro-Voice ETX-10P Portable Powered Loudspeaker F.01U.287.359, Electro-Voice, ETX-10P, Portable, Powered, L


User manual for Electro-Voice ETX-10P Portable Powered Loudspeaker F.01U.287.359

Electro-Voice ETX-10P Portable Powered Loudspeaker F.01U.287.359
  • Manufacturer: Electro-Voice
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - PA Speakers
  • Safety instructions
  • Startup and operation of the pa speakers
  • Tips for setting up your Electro-Voice
  • Settings and expert assistance
  • Contact Electro-Voice service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Electro-Voice ETX-10P Portable Powered Loudspeaker F.01U.287.359, which address similar problems with connecting and setting up PA Speakers Electro-Voice.



User manual for the Electro-Voice ETX-10P Portable Powered Loudspeaker F.01U.287.359

The user manual for the Electro-Voice ETX-10P Portable Powered Loudspeaker F.01U.287.359 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

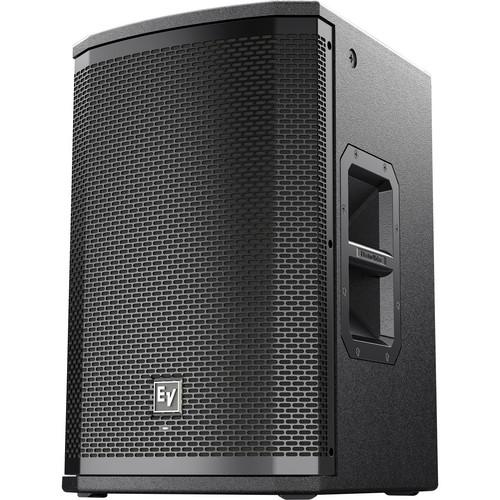

The ETX-10P Portable Powered Loudspeaker from Electro-Voice is a portable powered Class-D loudspeaker that can be used as a floor monitor, mounted on a tripod, or suspended from the ceiling. It is capable of up to 2,000-watts of output for a peak SPL rating of up to 134dB and features a 10-inch woofer and a 1.25-inch titanium high-frequency driver. The speaker's integrated DSP can be controlled via the rear panel LCD as provides EQ, boundary compensation, a limiting function, delay, and more.

Featuring Electro-Voice's SST waveguide, the EXT-10P has a uniform beamwidth, allowing for even distribution of sound thanks to the time-alignment of the high and low-frequency transducers. Sturdy construction is provided in the form of the die-cast aluminum chassis, pole cup, and handles.
If you own a Electro-Voice pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Electro-Voice ETX-10P Portable Powered Loudspeaker F.01U.287.359 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Electro-Voice ETX-10P Portable Powered Loudspeaker F.01U.287.359Download user manual for Electro-Voice ETX-10P Portable Powered Loudspeaker F.01U.287.359
(PDF file, 7.16 MB)
Additional parameters of the Electro-Voice ETX-10P Portable Powered Loudspeaker F.01U.287.359:
Specifications
    Frequency Response 85 Hz to 20 kHz (-3 dB)
    65 Hz to 20 kHz (-10 dB)
    Maximum SPL 134 dB, peak
    Coverage 90° x 60° (H x V)
    Power Rating 2,000 W
    Transducer LF: 10" (254 mm)
    HF: 1.25" (31.75 mm) titanium compression driver
    Crossover 1700 Hz
    Connectors 2x Combo XLR/TRS jacks
    1x XLR Link output
    Enclosure 0.7" (18 mm), 13-ply birch plywood with EVCoat
    Grille 16 AWG steel with powdercoat
    Suspension 8x M10 suspension points
    Power Consumption 100 - 240 V, 50 - 60 Hz, 1.6 - 0.8 A
    Dimensions (HxWxD) 21 x 13 x 14" (526 x 330 x 365 mm)
    Weight 44.8 lb (20.3 kg)
    Packaging Info
    Package Weight 51.0 lb
    Box Dimensions (LxWxH) 22.0 x 16.5 x 14.3"
    The user manual for the Electro-Voice ETX-10P Portable Powered Loudspeaker F.01U.287.359 can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Electro-Voice users keep a unique electronic library for Electro-Voice pa speakerss, where you can use our link to download the user manual for the Electro-Voice ETX-10P Portable Powered Loudspeaker F.01U.287.359.

    The user manual lists all of the functions of the Electro-Voice ETX-10P Portable Powered Loudspeaker F.01U.287.359, all the basic and advanced features and tells you how to use the pa speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Electro-Voice service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Electro-Voice ETX-10P Portable Powered Loudspeaker F.01U.287.359. User manuals are also available on the Electro-Voice website under Pro Audio - Live Sound - PA Speakers.
