User manual Electro-Voice RE-2 Wireless UHF Microphone System F.01U.139.540

Operating instructions and pdf manual for use - Electro-Voice RE-2 Wireless UHF Microphone System F.01U.139.540 User manual, User manual Electro-Voice RE-2 Wireless UHF Microphone System F.01U.139.540, Electro-Voice, RE-2, Wireless, UHF, Microphone


User manual for Electro-Voice RE-2 Wireless UHF Microphone System F.01U.139.540

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Electro-Voice RE-2 Wireless UHF Microphone System F.01U.139.540
  • Manufacturer: Electro-Voice
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Wireless Systems
  • Safety instructions
  • Startup and operation of the wireless systems
  • Tips for setting up your Electro-Voice
  • Settings and expert assistance
  • Contact Electro-Voice service
  • Troubleshooting
  • Warranty information
  • Price: 459 USD
We recommend checking out our discussion threads on the Electro-Voice RE-2 Wireless UHF Microphone System F.01U.139.540, which address similar problems with connecting and setting up Wireless Systems Electro-Voice.



User manual for the Electro-Voice RE-2 Wireless UHF Microphone System F.01U.139.540

The user manual for the Electro-Voice RE-2 Wireless UHF Microphone System F.01U.139.540 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Systems.

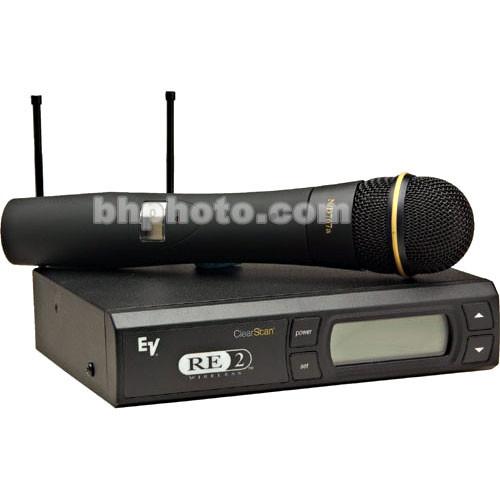

The Electrovoice RE-2 Series wireless microphone systems provide true professional wireless technology featuring UHF transmission, diversity reception and rugged, road worthy design. The RE-2 handheld system features the RE-2 receiver and HTU-TD handheld transmitter with N/D267 cardioid microphone head.
If you own a Electro-Voice wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Electro-Voice RE-2 Wireless UHF Microphone System F.01U.139.540 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Electro-Voice RE-2 Wireless UHF Microphone System F.01U.139.540Download user manual for Electro-Voice RE-2 Wireless UHF Microphone System F.01U.139.540
(PDF file, 0.47 MB)
Additional parameters of the Electro-Voice RE-2 Wireless UHF Microphone System F.01U.139.540:
System
Type of System UHF Frequency Agile Diversity
RF Carrier Frequency Range Band A - 648 - 676MHz (TV Channels 43 - 48)
Approx. Working Range 300'
Overall Frequency Response 50 - 15kHz +/- 2dB
Signal-to-Noise Ratio > 100dB (A)
# Of Channels 1,112 - programmable in 25kHz steps across 24MHz bandwidth
# Of Simultaneous Systems 16 - for additional consult with EV about custom programmed frequency groups
Receiver
Type of Receiver Synthesized PLL Agile UHF
Type of Outputs Balanced: 3-pin XLR - mic level
Unbalanced: 1/4" Phone - adjustable line level
Headphone Monitoring No
Power Requirements 12V AC/DC 300mA
Battery Type/Approx. Life AC powered only
Display Backlit LCD
Mounting Options Rack Mountable
Antenna Type Detachable 1/4 wave
Dimensions 1.72 x 7.50 x 5.90" (43.69 x 190.50 x 150.00mm) (H x W x D)
Weight not specified by manufacturer
Handheld Transmitter
Type of Transmitter UHF Frequency Agile Handheld
Type of Input Connector not applicable
Type of Microphone N/D 267A - Dynamic
Polar Pattern Cardioid
Interchangeable Mic Heads No
Battery Type/Approx. Life 8 hours with 9-Volt alkaline battery (typical)
Mute Switch On / Off & Mute Switch (combined)
Level Control Gain Adjustment: 40dB range
Microphone / Instrument Switch: 0, -20dB
Antenna Type Internal 1/4 wave detachable
Display Backlit LCD
Displays - Group, Channel, Frequency and Low Battery Level
Red LED
Low Battery Indicator
Dimensions 10.5" (26.8cm) (Long)
Weight not specified by manufacturer
Packaging Info
Package Weight 5.7 lb
Box Dimensions (LxWxH) 16.8 x 11.9 x 4.4"
The user manual for the Electro-Voice RE-2 Wireless UHF Microphone System F.01U.139.540 can be downloaded in .pdf format if it did not come with your new wireless systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Electro-Voice users keep a unique electronic library for Electro-Voice wireless systemss, where you can use our link to download the user manual for the Electro-Voice RE-2 Wireless UHF Microphone System F.01U.139.540.

The user manual lists all of the functions of the Electro-Voice RE-2 Wireless UHF Microphone System F.01U.139.540, all the basic and advanced features and tells you how to use the wireless systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Electro-Voice service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Electro-Voice RE-2 Wireless UHF Microphone System F.01U.139.540. User manuals are also available on the Electro-Voice website under Pro Audio - Live Sound - Wireless Systems.
