User manual for Electro-Voice RE410 Cardioid Microphone F.01U.169.061
- Manufacturer: Electro-Voice
- Basic description and contents of package
- Product classification: Pro Audio - Live Sound - Handheld Performance
- Safety instructions
- Startup and operation of the handheld performance
- Tips for setting up your Electro-Voice
- Settings and expert assistance
- Contact Electro-Voice service
- Warranty information
- Price: 199 USD
We recommend checking out our discussion threads on the Electro-Voice RE410 Cardioid Microphone F.01U.169.061,
which address similar problems with connecting and setting up Handheld Performance Electro-Voice.
User manual for the Electro-Voice RE410 Cardioid Microphone F.01U.169.061
The user manual for the Electro-Voice RE410 Cardioid Microphone F.01U.169.061 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Handheld Performance.

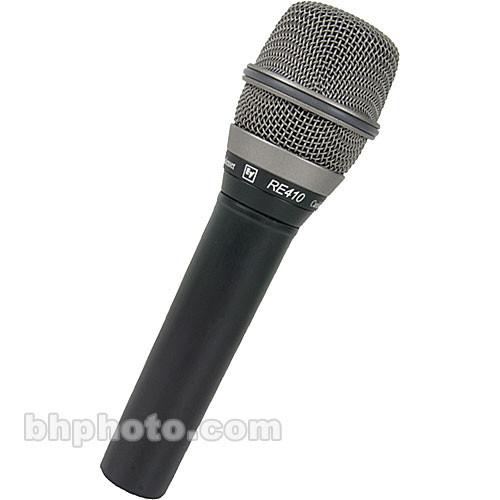

The Electro-Voice RE410 combines the benefits associated with condenser elements with the versatility of a rugged handheld design. The RE410 is primarily designed for vocal capturing in performances, halls, restaurants, bars, houses-of-worship and more. The condenser element delivers the sensitivity and response to accurately capture instruments as well. The capsule features a cardioid polar pattern that effectively rejects off-axis noise and ambiance that can cause feedback. The wide frequency response is optimized for vocal capturing while reducing low frequency noise. The rugged design features a hardened grille screen and a multistage pop filter eliminates plosive and breath noise. The RE410 features a Warm-Grip handle for a comfortable feel.
If you own a Electro-Voice handheld performance and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Electro-Voice RE410 Cardioid Microphone F.01U.169.061 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Electro-Voice RE410 Cardioid Microphone F.01U.169.061:
| Transducer || Self-Biased Condenser |
| Polar Pattern || Cardioid |
| Frequency Response || 50Hz to 20kHz |
| Dynamic Range (Typical) || > 114dB |
| Signal-to-Noise Ratio || 68dB (@ 94dB SPL) |
| Maximum Input Sound Level || not specified by manufacturer |
| Power Requirements || 24 to 48 VDC Phantom Power |
| Output Impedance || 250 Ohms |
| Output Connectors || 3-pin XLR |
| Pad || No |
| Low Frequency Roll-Off || No |
| Dimensions || 7.15 x 2.0" (182 x 51mm) (Length x Diameter) |
| Weight || 9.2 oz (260 grams) |
| Package Weight || 1.14 lb |
| Box Dimensions (LxWxH) || 10.0 x 5.25 x 2.75" |
The user manual for the Electro-Voice RE410 Cardioid Microphone F.01U.169.061 can be downloaded in .pdf
format if it did not come with your new handheld performance, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Electro-Voice users keep a unique electronic library
for Electro-Voice handheld performances,
where you can use our link to download the user manual for the Electro-Voice RE410 Cardioid Microphone F.01U.169.061.
The user manual lists all of the functions of the Electro-Voice RE410 Cardioid Microphone F.01U.169.061,
all the basic and advanced features and tells you how to use the handheld performance.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Electro-Voice service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Electro-Voice RE410 Cardioid Microphone F.01U.169.061. User manuals are also
available on the Electro-Voice website under Pro Audio - Live Sound - Handheld Performance.
