User manual Electro-Voice SB122 - 400W 12" Passive F.01U.265.572

Operating instructions and pdf manual for use - Electro-Voice SB122 - 400W 12" Passive F.01U.265.572 User manual, User manual Electro-Voice SB122 - 400W 12" Passive F.01U.265.572, Electro-Voice, SB122, 400W, 12, Passive, F.01U.265.572,


User manual for Electro-Voice SB122 - 400W 12" Passive F.01U.265.572

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Electro-Voice SB122 - 400W 12
  • Manufacturer: Electro-Voice
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - PA Speakers
  • Safety instructions
  • Startup and operation of the pa speakers
  • Tips for setting up your Electro-Voice
  • Settings and expert assistance
  • Contact Electro-Voice service
  • Troubleshooting
  • Warranty information
  • Price: 489 USD
We recommend checking out our discussion threads on the Electro-Voice SB122 - 400W 12" Passive F.01U.265.572, which address similar problems with connecting and setting up PA Speakers Electro-Voice.



User manual for the Electro-Voice SB122 - 400W 12" Passive F.01U.265.572

The user manual for the Electro-Voice SB122 - 400W 12" Passive F.01U.265.572 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

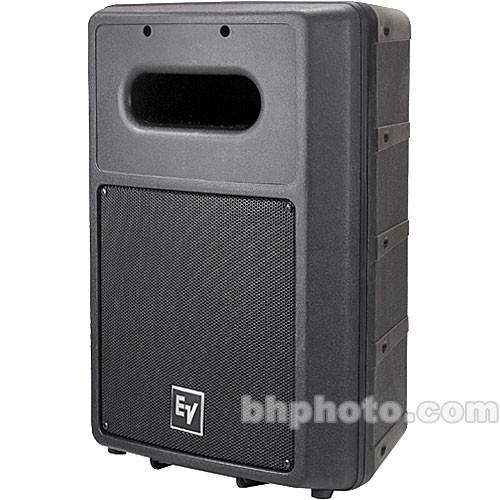

The SB122 from Electro-Voice is not only compact and lightweight, but powerful as well. Designed to enhance Sx and Zx series speaker systems, the SB122 has a long-throw 12-inch driver in a composite enclosure with a large vent for less compression and turbulence, resulting in increased low frequency output. The SB122 has 400W of continuous output power for strong, thumping bass.

The SB122 can be connected in parallel with a full-range speaker without the need for an additional amplifier and processor, thanks to a built-in low-pass filter. Below 160Hz the filter is transparent, so the subwoofer may be used in biamp situations without disabling the filter. The rear panel offers parallel Neutrik Speakon input connectors, while the top of the cabinet has a pole mount socket. The SB122 also has a built-in handle for easy positioning.
If you own a Electro-Voice pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Electro-Voice SB122 - 400W 12" Passive F.01U.265.572 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Electro-Voice SB122 - 400W 12Download user manual for Electro-Voice SB122 - 400W 12" Passive F.01U.265.572
(PDF file, 0.19 MB)
Additional parameters of the Electro-Voice SB122 - 400W 12" Passive F.01U.265.572:
Driver 12" (305mm) High-Excursion Woofer
Crossover 80-160Hz
Frequency Range 43-200Hz (-10dB)
52-145Hz (-3dB)
Impedance 8 ohms
Maximum Power Handling 400W (Continuous)
1600W (Peak)
Maximum Sound Pressure Level (SPL) 131dB
Controls and Indicators None
Connectors 2 x Parallel Speakon Inputs
Shielded Not Specified by Manufacturer
Enclosure Material Composite
Dimensions (HxWxD) 23.1 x 16.9 x 12.3" (586 x 429 x 312 mm)
Weight 33 lbs (15 kg)
Packaging Info
Package Weight 38.0 lb
Box Dimensions (LxWxH) 24.5 x 22.0 x 14.0"
The user manual for the Electro-Voice SB122 - 400W 12" Passive F.01U.265.572 can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Electro-Voice users keep a unique electronic library for Electro-Voice pa speakerss, where you can use our link to download the user manual for the Electro-Voice SB122 - 400W 12" Passive F.01U.265.572.

The user manual lists all of the functions of the Electro-Voice SB122 - 400W 12" Passive F.01U.265.572, all the basic and advanced features and tells you how to use the pa speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Electro-Voice service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Electro-Voice SB122 - 400W 12" Passive F.01U.265.572. User manuals are also available on the Electro-Voice website under Pro Audio - Live Sound - PA Speakers.
