User manual Electro-Voice Sx-300PI - 2-Way12" F.01U.265.563

Operating instructions and pdf manual for use - Electro-Voice Sx-300PI - 2-Way12" F.01U.265.563 User manual, User manual Electro-Voice Sx-300PI - 2-Way12" F.01U.265.563, Electro-Voice, Sx-300PI, 2-Way12, F.01U.265.563,


User manual for Electro-Voice Sx-300PI - 2-Way12" F.01U.265.563

Electro-Voice Sx-300PI - 2-Way12
  • Manufacturer: Electro-Voice
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - PA Speakers
  • Safety instructions
  • Startup and operation of the pa speakers
  • Tips for setting up your Electro-Voice
  • Settings and expert assistance
  • Contact Electro-Voice service
  • Troubleshooting
  • Warranty information
  • Price: 710 USD
We recommend checking out our discussion threads on the Electro-Voice Sx-300PI - 2-Way12" F.01U.265.563, which address similar problems with connecting and setting up PA Speakers Electro-Voice.



User manual for the Electro-Voice Sx-300PI - 2-Way12" F.01U.265.563

The user manual for the Electro-Voice Sx-300PI - 2-Way12" F.01U.265.563 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

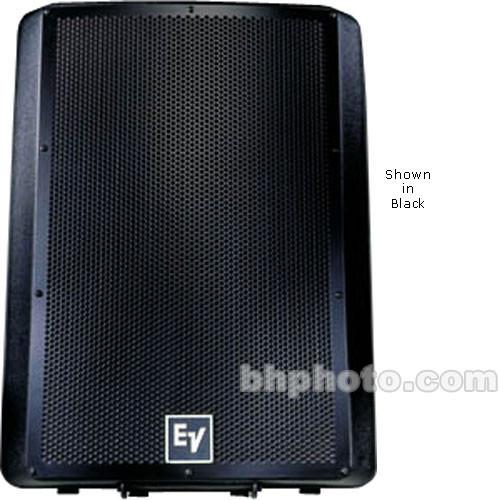

The Electro-Voice Sx-300PI is a 2-way, very high output, full-range loudspeaker with a 300-watt power handling capacity, designed for permanent institutional and commercial installations. The speaker features a ported, trapezoidal, weather-resistant enclosure, housing a 12" woofer and a 1" compression driver loaded into a constant-directivity horn.
If you own a Electro-Voice pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Electro-Voice Sx-300PI - 2-Way12" F.01U.265.563 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Electro-Voice Sx-300PI - 2-Way12Download user manual for Electro-Voice Sx-300PI - 2-Way12" F.01U.265.563
(PDF file, 0.27 MB)
Additional parameters of the Electro-Voice Sx-300PI - 2-Way12" F.01U.265.563:
Active or Passive Passive
Frequency Response 80 Hz - 25 kHz (open port)
90 Hz - 25 kHz (closed port)
Power Capacity 300 Watts
Maximum Sound Pressure Level (SPL) 131dB @ 1m
Nominal Sensitivity 99.5dB SPL, 1W/1m
Impedance 8 Ohms
Crossover 1.5kHz, 12dB/oct Slope
Low Frequency Driver 12" woofer
High Frequency Driver 1" horn-loaded compression driver
Enclosure Material Black injection-molded high-impact polystyrene
Black powder-coated stainless steel grille
Input Connections Paralleled Neutrik Speakon
Dimensions 23.1 x 16.9 x 12.3" (586 x 429 x 312mm)
Weight 40 lb (17.7 kg)
Packaging Info
Package Weight 39.7 lb
Box Dimensions (LxWxH) 24.5 x 22.0 x 13.8"
The user manual for the Electro-Voice Sx-300PI - 2-Way12" F.01U.265.563 can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Electro-Voice users keep a unique electronic library for Electro-Voice pa speakerss, where you can use our link to download the user manual for the Electro-Voice Sx-300PI - 2-Way12" F.01U.265.563.

The user manual lists all of the functions of the Electro-Voice Sx-300PI - 2-Way12" F.01U.265.563, all the basic and advanced features and tells you how to use the pa speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Electro-Voice service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Electro-Voice Sx-300PI - 2-Way12" F.01U.265.563. User manuals are also available on the Electro-Voice website under Pro Audio - Live Sound - PA Speakers.
