User manual for Electro-Voice ZX3-60B 12" 2-Way Passive F.01U.265.585
- Manufacturer: Electro-Voice
- Basic description and contents of package
- Product classification: Pro Audio - Live Sound - PA Speakers
- Safety instructions
- Startup and operation of the pa speakers
- Tips for setting up your Electro-Voice
- Settings and expert assistance
- Contact Electro-Voice service
- Warranty information
- Price: 899 USD
We recommend checking out our discussion threads on the Electro-Voice ZX3-60B 12" 2-Way Passive F.01U.265.585,
which address similar problems with connecting and setting up PA Speakers Electro-Voice.
User manual for the Electro-Voice ZX3-60B 12" 2-Way Passive F.01U.265.585
The user manual for the Electro-Voice ZX3-60B 12" 2-Way Passive F.01U.265.585 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

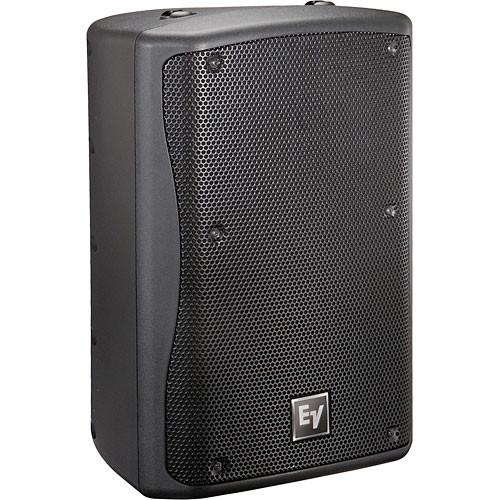

The Electro-Voice ZX3-60B is a 2-way P.A. passive loudspeaker with a 600-watt continuous power handling capacity and a 60x60° coverage angle, for long-throw and cluster applications. The high-tech, high-impact polypropylene enclosure houses a 12" woofer and a 1" Neodymium compression driver with a large 2" voice-coil.
The ZX3-60B cabinet is equipped with 10 integral suspension points for permanent suspension or bracketing, and 3 Anchor Plates for single-stud fittings, with an additional pair of Anchor Plate attachment points on the bottom of the speaker.
If you own a Electro-Voice pa speakers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Electro-Voice ZX3-60B 12" 2-Way Passive F.01U.265.585 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Electro-Voice ZX3-60B 12" 2-Way Passive F.01U.265.585:
| Active or Passive || Passive |
| Frequency Response || -10dB:48-20,000Hz |
| Power Capacity || 600W |
| Maximum Sound Pressure Level (SPL) || 131dB |
| Nominal Sensitivity || 97dB |
| Impedance || 8 ohms |
| Crossover || 2KHz |
| Low Frequency Driver || DVX3121, 12" (305mm) Driver |
| High Frequency Driver || ND2, 1" (25.4mm) exit Neodymium |
| Enclosure Material || Polypropylene Structural Foam |
| Input Connections || Neutrik Speakon NL4's x 2 |
| Mounting Options || Enclosure has locations for 4 Single-StudAttachment Plates and 10 Forged SteelEyebolts - 2 on Top, 2 on Bottom, 2 onSide, and 1 on Rear of Enclosure |
| Dimensions || 24.14 x 15.64 x 14.26" (613 x 397 x 362mm) |
| Weight || 43.7 lbs (19.8kg) |
The user manual for the Electro-Voice ZX3-60B 12" 2-Way Passive F.01U.265.585 can be downloaded in .pdf
format if it did not come with your new pa speakers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Electro-Voice users keep a unique electronic library
for Electro-Voice pa speakerss,
where you can use our link to download the user manual for the Electro-Voice ZX3-60B 12" 2-Way Passive F.01U.265.585.
The user manual lists all of the functions of the Electro-Voice ZX3-60B 12" 2-Way Passive F.01U.265.585,
all the basic and advanced features and tells you how to use the pa speakers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Electro-Voice service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Electro-Voice ZX3-60B 12" 2-Way Passive F.01U.265.585. User manuals are also
available on the Electro-Voice website under Pro Audio - Live Sound - PA Speakers.
