User manual Elmo QBiC Panorama X Camera System MS-1 XP

Operating instructions and pdf manual for use - Elmo QBiC Panorama X Camera System MS-1 XP User manual, User manual Elmo QBiC Panorama X Camera System MS-1 XP, Elmo, QBiC, Panorama, X, Camera, System, MS-1, XP, Video

User manual for Elmo QBiC Panorama X Camera System MS-1 XP

Elmo QBiC Panorama X Camera System MS-1 XP
  • Manufacturer: Elmo
  • Basic description and contents of package
  • Product classification: Camcorders - Sports & Action Cameras
  • Safety instructions
  • Startup and operation of the sports & action cameras
  • Tips for setting up your Elmo
  • Settings and expert assistance
  • Contact Elmo service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Elmo QBiC Panorama X Camera System MS-1 XP, which address similar problems with connecting and setting up Sports & Action Cameras Elmo.


User manual for the Elmo QBiC Panorama X Camera System MS-1 XP

The user manual for the Elmo QBiC Panorama X Camera System MS-1 XP provides necessary instructions for the proper use of the product Camcorders - Sports & Action Cameras.

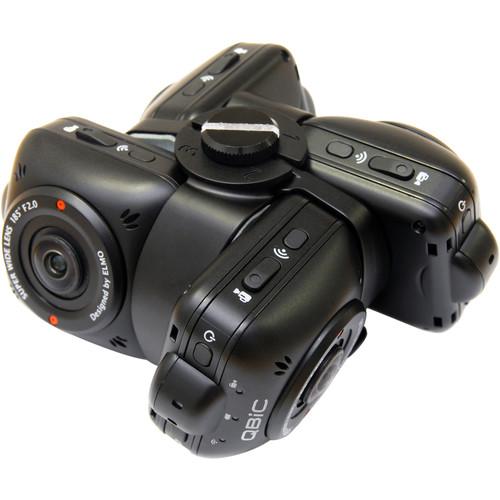

The QBiC Panorama X from Elmo is a camera system that features four individual QBiC MS-1 XP cameras and a specially designed rig to capture 180° vertical and 360° horizontal panoramic video. Each camera supports 1080p video recording at up to 60 fps as well as 5MP photo capture and is equipped with an ultra wide lens with a 185° diagonal angle of view, which makes capturing 360° panoramic video possible with only four cameras. And because the cameras don't use dome lens covers like some other 360° options, they are less prone to unsightly reflections or glare. Footage is recorded internally within each camera to microSD cards up to 64GB, with simultaneous record triggering of all four cameras possible using the QBiC app for iOS and Android devices. The resulting footage is then stitched together using a separately available third-party editing software.
If you own a Elmo sports & action cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Elmo QBiC Panorama X Camera System MS-1 XP in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Elmo QBiC Panorama X Camera System MS-1 XP:
Specifications
Camera
Sensor 1/2.3"  CMOS
Effective Pixels 4,769,856
Optics
Maximum Aperture f/ 2
Focusing Distance 11.8" / 30.0 cm
Angle of View 185°
Recording
Recording Media microSD/HC/XC Up To 64 GB
Video Format High Definition
MP4
1920 x 1080p / 60 fps / 30 fps
High Definition
MP4
1280 x 720p / 120 fps / 60 fps / 30 fps
Standard Definition
MP4
848 x 480p / 240 fps
800 x 480p
400 x 240p

No audio in 720p / 120 fps and WVGA / 240 fps modes
Still Image Resolution JPEG: 5 Megapixel
Audio Format AAC
Exposure Control
Exposure Modes Modes: Auto, Manual
Features
White Balance Modes Manual
Built-in Mic Yes
Built-in Speaker Yes
Wi-Fi Yes
Tripod Mount 1/4" - 20
Input/Output Connectors
Outputs 1x HDMI D (Micro)
1x USB Micro-B
General
Battery Rechargeable Lithium-polymer Battery Pack Batteries, 3.7 VDC, 1000 mAh,
Providing up to 1.7 Hours per Charge
Charging Method USB
Dimensions (WxHxD) 3.2 x 3.2 x 2.6" / 81.1 x 81.1 x 65.0 mm with four cameras mounted on the rig
Weight 1.53 lb / .694 kg with four cameras mounted on the rig
Packaging Info
Package Weight 3.2 lb
Box Dimensions (LxWxH) 12.1 x 10.4 x 10.1"
ELMO QBiC Panorama - 360°-Global-View-Video
ELMO QBiC panorama X test
The user manual for the Elmo QBiC Panorama X Camera System MS-1 XP can be downloaded in .pdf format if it did not come with your new sports & action cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Elmo users keep a unique electronic library for Elmo sports & action camerass, where you can use our link to download the user manual for the Elmo QBiC Panorama X Camera System MS-1 XP.

The user manual lists all of the functions of the Elmo QBiC Panorama X Camera System MS-1 XP, all the basic and advanced features and tells you how to use the sports & action cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Elmo service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Elmo QBiC Panorama X Camera System MS-1 XP. User manuals are also available on the Elmo website under Camcorders - Sports & Action Cameras.
