User manual for the EnGenius EPE-4818G Gigabit PoE Injector for EAP900H, EPE-4818G

The user manual for the EnGenius EPE-4818G Gigabit PoE Injector for EAP900H, EPE-4818G provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired Networking - Power over Ethernet (PoE).

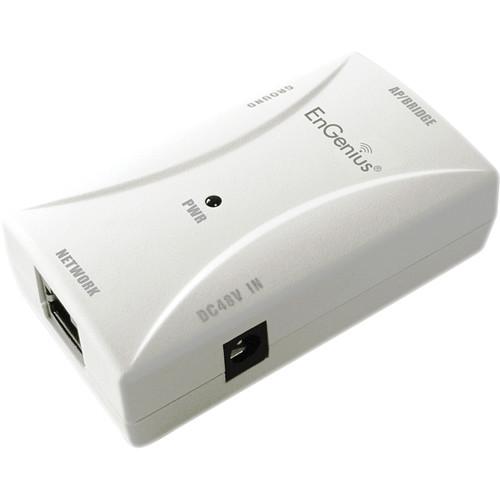

The EnGenius EPE-4818G Gigabit PoE Injector is designed to supply power and transmit data to EAP900H, EAP1750H, and ECB1750 PoE Access Points and other PoE client devices through an Ethernet cable from either a non-PoE or PoE gigabit Ethernet switch or port.

The EPE-4818G PoE Injector features 2 gigabit Ethernet (10/100/1000 Mb/s) ports; one port for connecting to an Ethernet switch and the other for connecting to a PoE-enabled device. The injector gives network administrators, IT managers, and installers the option to place PoE-client devices on or near ceilings or in crawl-spaces where power outlets may not be available or accessible, while at the same time, being able to connect them to the company’s network.

The EPE-4818G Injector uses standard IEEE pin definition to power devices and comes with a 48V/0.5A power supply. Pins 1, 2, and 3, 6 are used for data transmission while pins 4, 5, and 7, 8 are used for sending power to the device via the center tap. The EPE-4818G Injector generates power over CAT6, CAT5, and CAT5e cabling of up to 300’. By sending out 48V/0.5A, Ethernet terminals such as wireless LAN access points can be powered remotely from an Ethernet switch.
If you own a EnGenius power over ethernet (poe) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the EnGenius EPE-4818G Gigabit PoE Injector for EAP900H, EPE-4818G in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the EnGenius EPE-4818G Gigabit PoE Injector for EAP900H, EPE-4818G:
Specifications
    Compatible With EAP900H, EAP1750H, and ECB1750 Wireless Indoor Access Points
    Standard IEEE 802.3 10Base-T
    IEEE 802.3u 100Base-T
    IEEE 802.3ab Gigabit Ethernet
    Protocol CSMA/CD
    Ports Data-in, PoE out, DC jack
    Data Lines Pair 1: Pin1 (Rx+)/Pin2 (Rx-)
    Pair 2: Pin3 (Tx+)/Pin6 (Tx-)
    Pair 3: Pin4 (VDC)/Pin5 (VDC-)
    Pair 4: PIn7 (VDC-)/Pin8 (VDC-)
    Power Line Pair 3: 4/5
    Pair 4: 7/8
    Diagnostic LED Power: Green
    Power Output Provides up to 24 W
    Input: 100 to 240 VAC, 50 to 60 Hz
    Output: 48 VDC/0.5 A (maximum output)
    Reliability 25000 hours
    Temperature Range Operating: 32 to 140ºF (0 to 60ºC)
    Storage: -22 to 176ºF (-30 to 80ºC)
    Humidity (Non-condensing) Operating: 5 to 90%
    Storage: 5 to 90%
    Dimensions (W x L x H) 1.8 x 3.2 x 0.8" (4.6 x 8.1 x 2.0 cm)
    Weight 0.14 lb (0.06 kg)
    Packaging Info
    Package Weight 0.7 lb
    Box Dimensions (LxWxH) 7.0 x 6.2 x 2.4"
