User manual for the EOTech Model 558 Holographic Weapon Sight 2015 edition 558.A65
The user manual for the EOTech Model 558 Holographic Weapon Sight 2015 edition 558.A65 provides
necessary instructions for the proper use of the product Optics - Riflescopes & Sights - Red Dot/Holographic Sights.

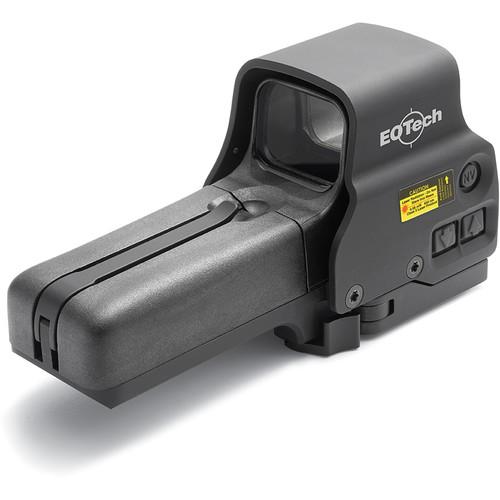

The 2015 edition of EOTech's black Model 558 Holographic Sight (HWS) is designed for fast and easy target acquisition and tracking, with small to medium caliber platforms, for close to medium encounters in all lighting conditions. It is also compatible with magnifiers to extend the sight's reach for further accuracy. The 558 features an illuminated holographic red dot reticle, anti-reflection multicoated optics, and 30 brightness levels: 20 for all lighting conditions from dawn to dusk, and another 10 that are compatible with Gen I/II/II night vision devices for nighttime operations. This versatile usability, coupled with its 90' field of view at 100 yards and an unlimited eye relief, helps to ensure that users maintain their situational awareness, especially when moving quickly.
If you own a EOTech red dot/holographic sights and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the EOTech Model 558 Holographic Weapon Sight 2015 edition 558.A65 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the EOTech Model 558 Holographic Weapon Sight 2015 edition 558.A65:
Specifications
Magnification
1x
Objective Lens Diameter
1.2" x 0.85" / 3.0 x 2.3 cm
Field of View
90' @ 100 yd / 30 m @ 100 m, at a 3" eye relief
Exit Pupil Diameter
N/A
Mounting System
Picatinny/Weaver rail
Impact Point Correction
0.5 MOA per click
Maximum Windage/Elevation Adjustment
±40 MOA
Weatherproofing
Submersible to 33' / 10.0 m Fog resistant
Battery
2 x AA Lithium, Alkaline, or Rechargeable
Runtime
Lithium: 1000 hr, continuous at setting #12 Alkaline: 600 hr, continuous at setting #12
The user manual for the EOTech Model 558 Holographic Weapon Sight 2015 edition 558.A65 can be downloaded in .pdf
format if it did not come with your new red dot/holographic sights, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other EOTech users keep a unique electronic library
for EOTech red dot/holographic sightss,
where you can use our link to download the user manual for the EOTech Model 558 Holographic Weapon Sight 2015 edition 558.A65.
The user manual lists all of the functions of the EOTech Model 558 Holographic Weapon Sight 2015 edition 558.A65,
all the basic and advanced features and tells you how to use the red dot/holographic sights.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from EOTech service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the EOTech Model 558 Holographic Weapon Sight 2015 edition 558.A65. User manuals are also
available on the EOTech website under Optics - Riflescopes & Sights - Red Dot/Holographic Sights.
