User manual Epiphan Pearl Live Streaming & Recording Device ESP0700

Operating instructions and pdf manual for use - Epiphan Pearl Live Streaming & Recording Device ESP0700 User manual, User manual Epiphan Pearl Live Streaming & Recording Device ESP0700, Epiphan, Pearl, Live, Streaming, Recording, Device, ESP0700,


User manual for Epiphan Pearl Live Streaming & Recording Device ESP0700

Epiphan Pearl Live Streaming & Recording Device ESP0700
  • Manufacturer: Epiphan
  • Basic description and contents of package
  • Product classification: Professional Video - Studio & EFP Equipment - Production Switchers
  • Safety instructions
  • Startup and operation of the production switchers
  • Tips for setting up your Epiphan
  • Settings and expert assistance
  • Contact Epiphan service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Epiphan Pearl Live Streaming & Recording Device ESP0700, which address similar problems with connecting and setting up Production Switchers Epiphan.



User manual for the Epiphan Pearl Live Streaming & Recording Device ESP0700

The user manual for the Epiphan Pearl Live Streaming & Recording Device ESP0700 provides necessary instructions for the proper use of the product Professional Video - Studio & EFP Equipment - Production Switchers.

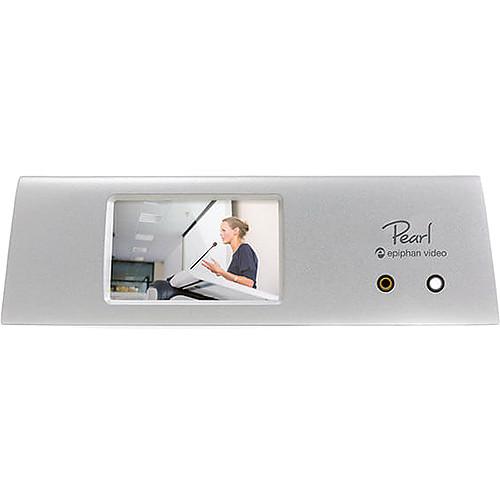

Epiphan Pearl is a live production video mixer that lets you to capture, record, and stream video anytime, anywhere. With advanced automatic channel creation and a front panel touch screen, setup is very simple. Simply plug in power and one or two sources to see your captured stream on the touchscreen. Control the video recorder and video switcher capabilities via the same touchscreen. Connect to a network and start streaming right away.
If you own a Epiphan production switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Epiphan Pearl Live Streaming & Recording Device ESP0700 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Epiphan Pearl Live Streaming & Recording Device ESP0700Download user manual for Epiphan Pearl Live Streaming & Recording Device ESP0700
(PDF file, 5.62 MB)
Additional parameters of the Epiphan Pearl Live Streaming & Recording Device ESP0700:
Specifications
Video Input 2 x SDI
2 x HDMI (DVI support via optional adapter cable)
2 x VGA (Component support via optional adapter cable)
Resolutions VESA Modes: 640 x 480 to 2048 x 2048 (or 2650 x 1600)
Custom HDMI/VGA modes
HDMI/DVI/SDI up to 1920 x 1200
HD Video Format Options 3G-SDI
HD-SDI
SD-SDI
DVI single link
HDMI
RGB plus separate HSync and VSync signals
RGB plus CSYNC signal
RGB with Sync-on-Green synchronization
Audio Input 2 x 1/4" left/right TRS audio (balanced or unbalanced), SDI audio, HDMI audio
Video Output Video monitoring through on-board touchscreen
Audio Output 3.5 mm audio jack for audio monitoring with speakers or headphones
Built-In Display Front touchscreen display for live switching, monitoring, quick configuration, system information, and recording control
Video Switching Layout switching during live streaming and recording using the touchscreen or the web UI
Video Codecs H.264, MPEG-4, MJPEG
Video Bit Rates 100 - 9,999 Kb/s
Keyframe Intervals Programmable
Sampling 4:2:0
Output Frame Size Configurable up to 3840 x 2160
Frame Rates Capacity for four simultaneous 1080p output streams at 30 fps, or three simultaneous output streams where two are at 60 fps at 1080p and one 30 fps at 1080p. 4K frame size at a lower frame rate per output stream.
Audio Codecs Stereo or Mono:
MP3 at 64-192 Kb/s bit rate and 22/44/48 kHz frequencies
PCM at 22/44/48 kHz frequencies
AAC at 64-192 Kb/s bitrate and 16/22/44/48 kHz frequencies
Network Interface 1 x 10/100/1000 Ethernet RJ45
Streams FLV, ASF, MJPEG, MPEG-TS
RTSP over TCP/UDP
Publish to Streaming Server / CDN (RTMP, RTSP)
HLS - Native Apple HTTP stream for iPad, iPhone, and iPod Touch
Multicast Streams RTP, MPEG-TS, RTP, and MPEG-TS over UDP
Network Discovery / Announce UPnP, SAP
Internal Storage 1 TB (provides approximately 900 GB of space for recording)
Automatically removes oldest recordings from internal storage as space is required
File maintenance through admin interface (Web UI)
Local Storage Automatic or manual copy to local USB drives via the two USB 2.0 ports
Network Storage FTP server and FTP client capabilities (automatic and manual)
SFTP/SCP/RSYNC/CIFS synchronization
Playback and Recorded Formats Download recorded videos (AVI, MP4, MOV or MPEG-TS) using the Web UI and playback through any compatible player
Administration Web UI for full administration
On-screen display and mobile UI for monitoring and simple administration
API Integration Included API for integration into existing environments (executed via HTTP or RS-232)
RS-232 API integration requires optional USB to RS-232 adapter
Time Synchronization NTP, TIME (RFC 868), PTP v1 (IEEE-1588-2002 V1)
Dimensions 10.6 x 3.2 x 7.4" (27 x 8.2 x 19 cm)
Weight 3.4 lb (1.54 kg)
Packaging Info
Package Weight 11.4 lb
Box Dimensions (LxWxH) 14.7 x 12.1 x 6.7"
The user manual for the Epiphan Pearl Live Streaming & Recording Device ESP0700 can be downloaded in .pdf format if it did not come with your new production switchers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Epiphan users keep a unique electronic library for Epiphan production switcherss, where you can use our link to download the user manual for the Epiphan Pearl Live Streaming & Recording Device ESP0700.

The user manual lists all of the functions of the Epiphan Pearl Live Streaming & Recording Device ESP0700, all the basic and advanced features and tells you how to use the production switchers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Epiphan service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Epiphan Pearl Live Streaming & Recording Device ESP0700. User manuals are also available on the Epiphan website under Professional Video - Studio & EFP Equipment - Production Switchers.
