User manual Epiphan VGADVI Broadcaster ESP0440

Operating instructions and pdf manual for use - Epiphan VGADVI Broadcaster ESP0440 User manual, User manual Epiphan VGADVI Broadcaster ESP0440, Epiphan, VGADVI, Broadcaster, ESP0440, Video


User manual for Epiphan VGADVI Broadcaster ESP0440

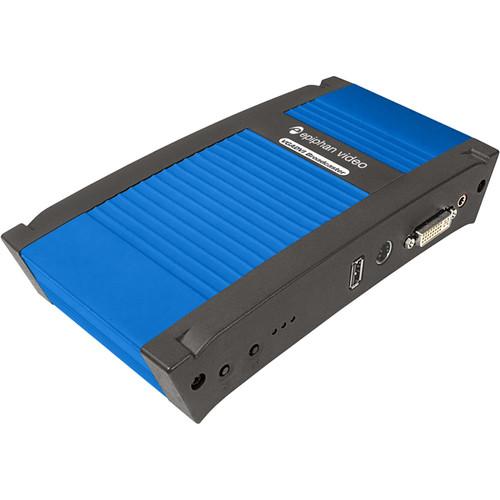

Epiphan  VGADVI Broadcaster ESP0440
  • Manufacturer: Epiphan
  • Basic description and contents of package
  • Product classification: Professional Video - Studio & EFP Equipment - Streaming Media Solutions & Servers
  • Safety instructions
  • Startup and operation of the streaming media solutions & servers
  • Tips for setting up your Epiphan
  • Settings and expert assistance
  • Contact Epiphan service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Epiphan VGADVI Broadcaster ESP0440, which address similar problems with connecting and setting up Streaming Media Solutions & Servers Epiphan.



User manual for the Epiphan VGADVI Broadcaster ESP0440

The user manual for the Epiphan VGADVI Broadcaster ESP0440 provides necessary instructions for the proper use of the product Professional Video - Studio & EFP Equipment - Streaming Media Solutions & Servers.

The Epiphan VGADVI Broadcaster captures, combines, records, and streams audio, Full HD video, and SD video. This quiet, portable recording and streaming device can stream directly to a handful of viewers or reach a broad audience via multicast or a content distribution network (CDN). The VGADVI Broadcaster can also provide content to your set-top boxes and digital signs via UPnP and SAP network announce protocols.

The VGADVI Broadcaster captures HD video from sources such as computer monitors, RADAR displays, or ultrasound monitors, as well as SD video signals such as from a camera feed. The VGADVI Broadcaster can stream these sources as two synchronized, time-stamped streams or a multi-source layout with customized branding. Streams can be remotely accessed through web browsers, media players, mobile devices, or set-top boxes. Streams can be recorded to local storage and downloaded at a later date. The VGADVI Broadcaster is easy to setup and use, and works straight out of the box. Once configured, it does not require the use of a computer or any additional equipment -- simply power it on to start encoding and streaming.
If you own a Epiphan streaming media solutions & servers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Epiphan VGADVI Broadcaster ESP0440 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Epiphan VGADVI Broadcaster ESP0440:
Specifications
Video Input 1 x DVI (Convertible to HDMI or VGA using supplied adapters)
1 x S-Video (NTSC/PAL) (Convertible to Composite using supplied adapters)
*Component input requires optional VGA to Component adapters
*EDIDs can be uploaded to the device
Resolutions VESA Modes: 640 x 480 to 1920 x 1200
Custom VGA/DVI modes
HD Video Format Options RGB plus separate HSync and VSync signals
RGB plus CSYNC signal
RGB with Sync-on-Green synchronization
DVI single link
Audio Input 3 x 1/8" (3.5 mm) stereo analog audio
Audio Input Levels Mic and line-in
Video Output 1 x DVI-I (pass-through)
*This output performs as a splitter/converter. Analog and Digital versions are always output with automatic D/A or A/D applied.
Audio Output 1 x 3.5 mm stereo audio
Video Codec H.264, MPEG-4, Motion JPEG
Video Bit Rates Configurable from 100 - 9999 kbit/sec
Key Frame Intervals Programmable
Color Resolution YUV 4:2:0
Frame Size Configurable to up to 1920 x 1200
Frame Rates 30 fps at 1920 x 1080p (or smaller), 25 fps at 1920 x 1200
Audio Codec MP3 at 32-192 kbps bit rate and 22/44 kHz frequencies
PCM at 22/44 kHz frequencies
AAC at 32-192 kbps bit rate and 16/22/44 kHz frequencies
G.711 at 8 kHz (a-Law) and 8 kHz (µ-Law)
Audio Channels 1 stereo channel
Network Interface 1 x Ethernet RJ45 10/100 (PoE - spec: IEEE 802.3af class 0)
Streams FLV, ASF, and MJPEG over HTTP
RTSP over TCP/UDP
Multicast Streams RTP, MPEG-TS, and MPEG-TS/RTP over UDP
Publish to Streaming Server / CDN RTMP, RTSP
Network Discovery / Announce UPnP, SAP
Internal Storage 8 GB (solid state)
No recorded file size limits when configured with local or network attached storage, enabling 24/7 recording
Automatically removes oldest recordings from internal storage as space is required
File maintenance through admin interface (Web UI)
Local Storage Automatic copy to local USB drives via two USB 2.0 ports
Network Storage FTP server and FTP client capabilities (automatic and manual)
Copy to USB drive (automatic and manual)
RSYNC/CIFS synchronization
Playback and Recorded Formats Download recorded videos (AVI, MPEG-TS, or MOV) using the Web UI and playback through any compatible player
Administration Web UI allows for full administrative capabilities and includes multiple user accounts/passwords
Included API for integration into existing environments (executed via HTTP or RS-232); RS-232 API integration requires a USB to RS-232 adapter (not included)
Time Synchronization NTP, TIME (RFC 868), PTP v1 (IEEE-1588-2002 V1)
Dimensions 8 x 4.1 x 1.4" (20 x 10.5 x 3.5 cm)
Weight 1.4 lb (0.64 kg)
Packaging Info
Package Weight 4.1 lb
Box Dimensions (LxWxH) 12.3 x 9.0 x 2.5"
The user manual for the Epiphan VGADVI Broadcaster ESP0440 can be downloaded in .pdf format if it did not come with your new streaming media solutions & servers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Epiphan users keep a unique electronic library for Epiphan streaming media solutions & serverss, where you can use our link to download the user manual for the Epiphan VGADVI Broadcaster ESP0440.

The user manual lists all of the functions of the Epiphan VGADVI Broadcaster ESP0440, all the basic and advanced features and tells you how to use the streaming media solutions & servers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Epiphan service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Epiphan VGADVI Broadcaster ESP0440. User manuals are also available on the Epiphan website under Professional Video - Studio & EFP Equipment - Streaming Media Solutions & Servers.
