User manual Epson ELPCB02 PowerLite Pilot 2 Projector AV V12H614020

Operating instructions and pdf manual for use - Epson ELPCB02 PowerLite Pilot 2 Projector AV V12H614020 User manual, User manual Epson ELPCB02 PowerLite Pilot 2 Projector AV V12H614020, Epson, ELPCB02, PowerLite, Pilot, 2, Projector, AV, V12H614020


User manual for Epson ELPCB02 PowerLite Pilot 2 Projector AV V12H614020

Epson ELPCB02 PowerLite Pilot 2 Projector AV V12H614020
  • Manufacturer: Epson
  • Basic description and contents of package
  • Product classification: A/V Presentation - Multimedia Projector Accessories - Projector Accessories
  • Safety instructions
  • Startup and operation of the projector accessories
  • Tips for setting up your Epson
  • Settings and expert assistance
  • Contact Epson service
  • Troubleshooting
  • Warranty information
  • Price: 249 USD
We recommend checking out our discussion threads on the Epson ELPCB02 PowerLite Pilot 2 Projector AV V12H614020, which address similar problems with connecting and setting up Projector Accessories Epson.



User manual for the Epson ELPCB02 PowerLite Pilot 2 Projector AV V12H614020

The user manual for the Epson ELPCB02 PowerLite Pilot 2 Projector AV V12H614020 provides necessary instructions for the proper use of the product A/V Presentation - Multimedia Projector Accessories - Projector Accessories.

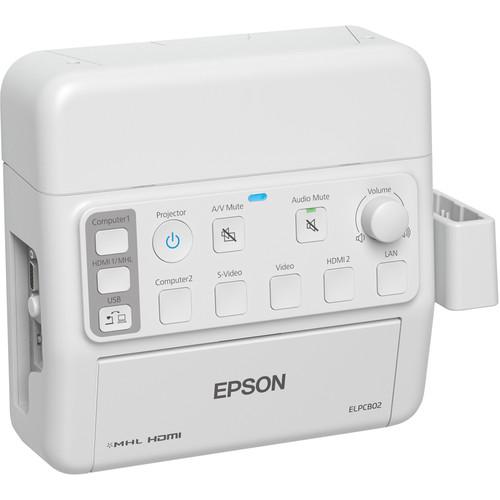

The Epson ELPCB02 PowerLite Pilot 2 is a convenient wall-mounted AV control box for Epson short-throw and ultra-short-throw projectors. It supports an array of devices, and makes it easy to operate your audio/video sources, computer, iPod, and more. It also supports display of content from high-definition and popular MHL-enabled mobile devices. And, with greater flexibility, consolidated cable management, and intuitive buttons, it is suitable for simple, streamlined control of classroom multimedia devices.
If you own a Epson projector accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Epson ELPCB02 PowerLite Pilot 2 Projector AV V12H614020 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Epson ELPCB02 PowerLite Pilot 2 Projector AV V12H614020:
Specifications
    I/O Connections
    Video Input 2 x VGA
    1 x Composite video
    1 x S-Video
    2 x HDMI
    1 x USB-A
    1 x USB-B
    Video Output 2 x VGA
    1 x Composite video
    1 x S-Video
    2 x HDMI
    1 x USB-A
    1 x USB-B
    Audio Input 4 x Stereo mini jack (3.5 mm)
    RCA connector (L & R)
    1 x Mic in (6.3 mm)
    Audio Output 2 x Stereo mini jack (3.5 mm)
    Control 1 x RS-232C (9-pin crossover/null modem type)
    Compatibility
    Compatible Projectors BrightLink Series: 575Wi, 585Wi, and 595Wi Interactive WXGA 3LCD projectors
    PowerLite Series: 420 XGA, 425W WXGA, 430 XGA, 435W WXGA, 570 XGA, 575W WXGA, 580 XGA, 585W WXGA projectors
    Speakers ELPSP02 Active Speakers
    Accessories ELPCK01 On Wall Cable Management Kit
    Functions
    Controls Projector: Power on/off, Source selection (computer 1/computer 2/video/S-Video/USB[A/B]/HDMI1/HDMI2/LAN), A/V mute

    Audio: Audio mute (for all sources), Volume adjustments (except for AUX in/Mic Input/Rec out), Mic volume control
    Power
    Supply Voltage 100 to 240 VAC
    AC Adapter Output 12 VDC; adapter included
    Environmental
    Compliance RoHS
    Recycle / Disposal Recyclable
    Operating Temperature 41 to 95°F (5 to 35°C)
    Operating Humidity 20 to 80% RH
    Dimensions & Weight
    Dimensions (W x D x H) 9.1 x 3.6 x 8.9" (23.1 x 9.1 x 22.6 cm) with cover
    9.1 x 3.6 x 7.1" (23.1 x 9.1 x 18.0 cm) without cover
    Weight 2.7 lb (1.2 kg)
    Packaging Info
    Package Weight 5.85 lb
    Box Dimensions (LxWxH) 12.284 x 11.26 x 6.221"
    The user manual for the Epson ELPCB02 PowerLite Pilot 2 Projector AV V12H614020 can be downloaded in .pdf format if it did not come with your new projector accessories, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Epson users keep a unique electronic library for Epson projector accessoriess, where you can use our link to download the user manual for the Epson ELPCB02 PowerLite Pilot 2 Projector AV V12H614020.

    The user manual lists all of the functions of the Epson ELPCB02 PowerLite Pilot 2 Projector AV V12H614020, all the basic and advanced features and tells you how to use the projector accessories. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Epson service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Epson ELPCB02 PowerLite Pilot 2 Projector AV V12H614020. User manuals are also available on the Epson website under A/V Presentation - Multimedia Projector Accessories - Projector Accessories.
