User manual for the Epson PowerLite 575W WXGA 3LCD Ultra-Short-Throw V11H603020

The user manual for the Epson PowerLite 575W WXGA 3LCD Ultra-Short-Throw V11H603020 provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

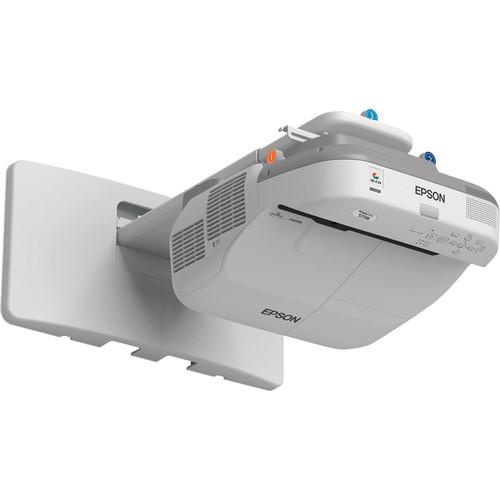

The PowerLite 575W WXGA 3LCD Ultra-Short-Throw Projector from Epson is designed for use in classroom settings, and is an ideal companion for digital whiteboards and document cameras. It outputs 2700 lumens and features a 1280 x 800 (WXGA) native resolution and a 16:10 native aspect ratio - through pillaring and scaling can accept a range of other input resolutions up to 1600 x 900 (WXGA++), though loss of quality may result. Falling into the ultra-short-throw category, the PowerLite 575W features a throw ratio of 0.27 to 0.37:1 (digital zoom only) - this means, for example, at 12" from the screen or whiteboard it can throw a 100" diagonal image.

The projector features a number of inputs for the greatest flexibly. There is a VGA input paired with a mirrored VGA loop-out for computers with analog graphics cards and analog document cameras. Two HDMI inputs are provided for newer computers, Blu-ray players, and other HDTV-compatible equipment. And there is a Composite and S-Video input for use with standard definition analog devices such as VCRs and camcorders. A USB type A port allows the projector to show "PC-less" presentations from a USB storage device and is compatible with many document cameras that have USB output. A USB type B port allows the projector to be connected to a computer, as an alternative to using VGA or HDMI - using USB may impact the quality of video because of bandwidth limitations.

The projector can be controlled directly from surface buttons. However, since it will typically be wall or ceiling mounted, an IR remote is included which can be picked up from the back or front of the projector. For remote operation, even from another location, there is an Ethernet port and an RS-232 serial port. With Ethernet the projector can be accessed through a Web browser, and it is possible to stream presentations to it using the iProjection App or use the Multi-PC Collaboration feature. RS-232, meanwhile, allows it to be controlled from automaton systems such as Crestron RoomView.
If you own a Epson multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Epson PowerLite 575W WXGA 3LCD Ultra-Short-Throw V11H603020 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Epson PowerLite 575W WXGA 3LCD Ultra-Short-Throw V11H603020Download user manual for Epson PowerLite 575W WXGA 3LCD Ultra-Short-Throw V11H603020
(PDF file, 3.77 MB)
Additional parameters of the Epson PowerLite 575W WXGA 3LCD Ultra-Short-Throw V11H603020:
Specifications
    Image Display
    Display System 3-Chip Polysilicon TFT LCD
    Native Resolution WXGA - 1280 x 800
    Supported Resolutions VGA - 640 x 580
    SVGA - 800 x 600
    XGA - 1024 x 768
    SXGA - 1152 x 864
    SXGA2 - 1280 x 960
    SXGA3 - 1280 x 1024
    WXGA - 1360 x 768
    WXGA+ - 1440 x 900
    SXGA+ - 1400 x 1050
    WXGA++ - 1600 x 600
    Supported Formats Photo: BMP, JPG, PNG
    Video: AVI, GIF

    Up to 8192 x 8192 for .jpg; Up to 1280 x 800 for .png and .gif; up to 1280 x 720 for .avi.

    Format NTSC
    NTSC 4.43
    PAL
    PAL M
    PAL N
    PAL 60
    SECAM
    Brightness 2700 Lumens
    Aspect Ratio Native: 4:3
    Supported: 16:9
    Supported: 16:10
    Supported: 1.1:1
    Dynamic Contrast Ratio 10000:1

    Depending on projector settings, screen surface, presence of ambient light and other factors.

    Lens
    Focus Fixed
    Lens F 1.8 (f = 3.71 mm)
    Lens Shift None
    Zoom Digital: 1-1.35x
    Throw Ratio .27 - 0.37:1
    Projection Size 60 - 100" / 152.40 - 254.00 cm
    Features
    Keystone Correction Manual: Yes, Vertical: ± 3°
    Manual: Yes, Horizontal: ± 3°
    Ceiling Mountable Yes
    Rear Screen Projection Yes
    Built-in Speaker Yes, 16 W (Mono)
    Input/Output Connectors
    Inputs/Outputs 1x 15-pin VGA Video (Input)
    2x HDMI Audio/Video (Input)
    1x S-Video Video (Input)
    1x RCA Composite Video (Input)
    1x USB Type-A Female (Input)
    1x RS-232C Control (Input)
    1x Ethernet Control/Service (Input)
    2x 1/8" (3.5 mm) Mini Audio (Input)
    1x 1/8" (3.5 mm) Mini Microphone (Input)
    1x 15-pin VGA Video (Output)
    1x 1/8" (3.5 mm) Mini Audio (Output)
    1x USB Type-B Female (Output)
    General
    Lamp (Bulb) 1x E-TORL
    Watts 245 W
    Life Eco Mode: 6000 Hours
    Normal Mode: 4000 Hours
    Fan Noise Eco Mode: 28 dB
    Normal Mode: 35 dB
    Remote Control Yes

    Up to 19.7' (6 m) line-of-sight; front or rear.

    Security Cable Lock Slot
    Password Protection
    System Requirements Windows
    • 2000
      XP
      7
      8

    Mac
    • OS X

    For connection via USB only - connection to a computer through any other input does not require a driver.

    Power Requirements 100-240 VAC +/- 10%, 50/60 Hz
    Power Consumption Eco Mode: 280 W
    Normal Mode: 376 W
    Communication on Mode: 4.3 W
    Communication off Mode: .3 W
    Temperature Operating
    41 to 95°F (5 to 35°C)
    Dimensions (WxHxD) 14.4 x 7.6 x 14.8" / 36.6 x 19.3 x 37.6 cm
    14.4 x 6.1 x 14.8" / 36.6 x 15.5 x 37.6 cm without feet
    Weight 11.7 lb / 5.31 kg
    Packaging Info
    Package Weight 42.75 lb
    Box Dimensions (LxWxH) 31.75 x 20.5 x 13.0"
