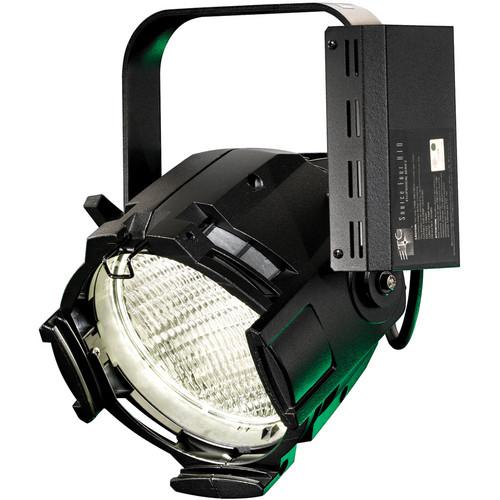

The Source Four HID 70W PARNel Washlight Fixture - Twistlock Connector (Black) by ETC is an extremely efficient and multi-functional fixture that combines the soft edged floodlight beam of a PAR with the built-in focusing of a Fresnel fixture. Featuring a patented wave-lens design and easy focusing knob, the PARNel lets you quickly access a focus range of 25-45° with a smooth, soft, symmetrical field that may be spotted or flooded as needed.
Source Four HID's use a long-life 12,000-hour lamp, which means low maintenance and less lamp change-out, and that's perfect for positions that can't be reached often or easily, such as tall museum ceilings or vaulted church areas. However being compact and power-efficient means these lights are also ideal for touring or other portable applications.
When fitted with a 70 watt, 3000° Ceramic Metal Halide bulb, this short-throw fixture will provide 76 footcandles with a 11.7' (3.6 m) field diameter from a distance of 30' (9.1 m). This fixture is available in black or white finishes with four optional factory-fitted connectors: Edison, Stage-pin, Twistlock, and Pigtail.
If you own a ETC architectural lights and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the ETC Source Four HID 70W PARNel Washlight Fixture - 7061A1047-0XC in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ETC Source Four HID 70W PARNel Washlight Fixture - 7061A1047-0XC:
Based on 70W HID PARNel - Spot: Field Lumens: 2,648 Beam Lumens: 1,213 Lumens per Watt: 37.8
Mounting
Yoke-mounted
Yoke
Steel yoke with two mounting positions with positive locking yoke clutch
Cable
6' (1.8 m) included lead with four optional factory-fitted connectors
Weight
10.9 lb (4.9 kg)
Dimensions (HxDxW)
15.9 x 10.8 x 10.3" (404 x 274 x 262mm) including yoke and optional c-clamp
