User manual ETC Source Four LED Series 2 Daylight HD 7461A1071-1

Operating instructions and pdf manual for use - ETC Source Four LED Series 2 Daylight HD 7461A1071-1 User manual, User manual ETC Source Four LED Series 2 Daylight HD 7461A1071-1, ETC, Source, Four, LED, Series, 2, Daylight, HD, 7461A1071-1,


User manual for ETC Source Four LED Series 2 Daylight HD 7461A1071-1

ETC Source Four LED Series 2 Daylight HD 7461A1071-1
  • Manufacturer: ETC
  • Basic description and contents of package
  • Product classification: Lighting & Studio - Continuous Lighting - LED Lights
  • Safety instructions
  • Startup and operation of the led lights
  • Tips for setting up your ETC
  • Settings and expert assistance
  • Contact ETC service
  • Troubleshooting
  • Warranty information
ETC Source Four LED Series 2 Daylight HD 7461A1071-1 ETC Source Four LED Series 2 Daylight HD 7461A1071-1 ETC Source Four LED Series 2 Daylight HD 7461A1071-1 ETC Source Four LED Series 2 Daylight HD 7461A1071-1 ETC Source Four LED Series 2 Daylight HD 7461A1071-1
Click to enlarge image

We recommend checking out our discussion threads on the ETC Source Four LED Series 2 Daylight HD 7461A1071-1, which address similar problems with connecting and setting up LED Lights ETC.



User manual for the ETC Source Four LED Series 2 Daylight HD 7461A1071-1

The user manual for the ETC Source Four LED Series 2 Daylight HD 7461A1071-1 provides necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - LED Lights.

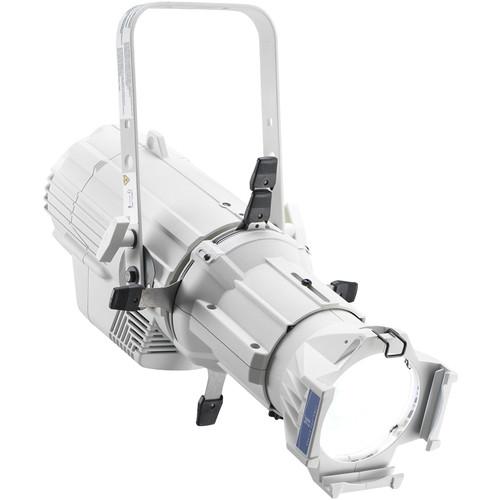

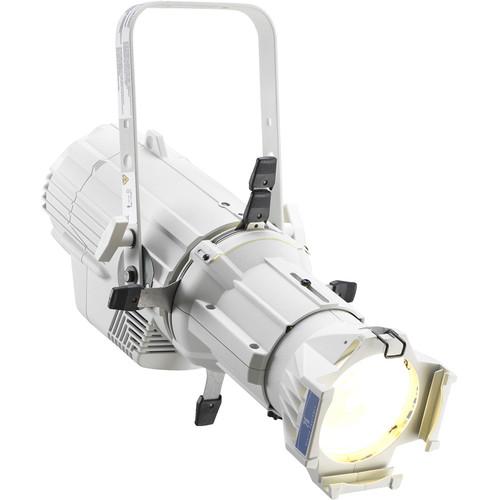

The white Source Four LED Series 2 Daylight HD with Shutter Barrel from ETC is an LED fixture offering a flicker-free output ideal for broadcast and stage lighting applications. The Daylight HD model uses a mixture of 60 LED emitters to produce a variable cool-white color temperature output, with ideal performance between 4,000-6,500K, to imitate natural daylight sources. Color tint control is also offered for fine-tuning to match different skin tones. This light engine is capable of CRIs up to 95 when balanced to 4,500K, and the LEDs have a long lifetime of 20,000 hours before dropping to 70% intensity. Also, there is a 15-bit virtual dimming engine for smooth transitions without color shifts.

The Series 2 Daylight HD has remote control with DMX512 using 5-pin XLR connectors. Multiple lights can be linked for synchronization, and there is also RDM functionality. The physical characteristics of the light include a quiet fan cooling system and a durable die-cast aluminum construction. It is IP20- and UL1573-certified and comes with a hanging yoke mount. Additionally, it has a universal 100-240 VAC power supply.
If you own a ETC led lights and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ETC Source Four LED Series 2 Daylight HD 7461A1071-1 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ETC Source Four LED Series 2 Daylight HD 7461A1071-1:
Rating At 4,500K: 95
At 5,600K: 92
LED Array 60 Luxeon Rebel LEDs
LED Lifetime 20,000 hours to 70% brightness
Brightness 9,700 lumens at 4,500K
Dimming 15-bit non-linear scaling with incandescent, standard, linear, and quick curve options
Drive System Pulse-Width Modulation
Remote Control Interface USITT DMX512A via In and Thru 5-pin XLR connectors
ANSI RDM E1.20 standard
Construction Die-cast aluminum alloy
Ingress Protection Rating IP20
Certifications UL1573
Mount Hanging yoke with C-clamp
Operating Temperature 32 to 104°F (0 to 40°C)
Power Requirements 100-240 VAC, 50/60 Hz
Power Consumption 171 W, 1.44 A at 120 VAC
Dimensions 17.1 x 13.3 x 24.8" (43.4 x 33.8 x 63.1 cm)
Weight 18.3 lb (8.3 kg)
The user manual for the ETC Source Four LED Series 2 Daylight HD 7461A1071-1 can be downloaded in .pdf format if it did not come with your new led lights, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ETC users keep a unique electronic library for ETC led lightss, where you can use our link to download the user manual for the ETC Source Four LED Series 2 Daylight HD 7461A1071-1.

The user manual lists all of the functions of the ETC Source Four LED Series 2 Daylight HD 7461A1071-1, all the basic and advanced features and tells you how to use the led lights. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ETC service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ETC Source Four LED Series 2 Daylight HD 7461A1071-1. User manuals are also available on the ETC website under Lighting & Studio - Continuous Lighting - LED Lights.
