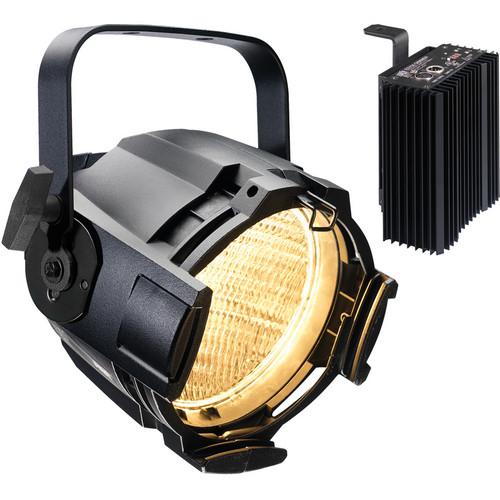

This White Source Four PAR Metal Cold Mirror with Dimmer and Stage Pin Connector from ETC features the power of a PAR and the cool beam of the Source Four. It has a rugged, die-cast aluminum construction and features Source Four's optical technology. The reflector coating ensures that only light and not heat goes out of the front of the fixture, thereby making the Source Four PAR MCM suitable for orchestra lighting or other performance situations where on-stage comfort is needed.
If you own a ETC stage & studio and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ETC Source Four PAR Metal Cold Mirror with Dimmer 7061A1703-1XB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ETC Source Four PAR Metal Cold Mirror with Dimmer 7061A1703-1XB:
Specifications
    Light Fixture
    Socket (Lampholder) HPL Quick eXchange Socket.
    750W Maximum
    Power Connector Two-pin and ground, 20A connector (Stage Pin)
    Voltage 115 to 240 V, 50/60 Hz
    Photometrics For VNSP:

    Candela: 343,440
    Field Lumens: 7,798
    Beam Lumens: 4,203
    Efficiency: 47.2%
    Lumens Per Watt: 13.6

    Illuminance:

    4,108 lux (382 fc) @ 30.0' (9.1 m) throw distance and 8.2' (2.5 m) field diameter
    1,479 lux (137 fc) @ 50.0' (15.2 m) throw distance and 13.7' (4.2 m) field diameter
    754 lux (70 fc) @ 70.0' (21.3 m) throw distance and 19.2' (5.8 m) field diameter
    512 lux (48 fc) @ 85.0' (25.9 m) throw distance and 23.3' (7.1 m) field diameter

    For NSP:

    Candela: 297,851
    Field Lumens: 7,997
    Beam Lumens: 4,604
    Efficiency: 48.4%
    Lumens Per Watt: 13.9

    Illuminance:

    5,130 lux (477 fc) @ 25.0' (7.6 m) throw distance and 7.0' (2.1 m) field diameter
    1,583 lux (147 fc) @ 45.0' (13.7 m) throw distance and 12.7' (3.9 m) field diameter
    759 lux (70 fc) @ 65.0' (19.8 m) throw distance and 18.3' (5.6 m) field diameter
    501 lux (47 fc) @ 80.0' (24.4 m) throw distance and 22.5' (6.9 m) field diameter

    For MFL:

    Candela: 104,708
    Field Lumens: 8,151
    Beam Lumens: 4,808
    Efficiency: 49.3%
    Lumens Per Watt: 14.2

    Illuminance:

    5,009 lux (465 fc) @ 15.0' (4.6 m) throw distance and 6.1 / 8.4' (1.9 / 2.5 m) field diameter
    1,803 lux (168 fc) @ 25.0' (7.6 m) throw distance and 10.2 / 13.9' (3.1 / 4.2 m) field diameter
    704 lux (65 fc) @ 40.0' (12.2 m) throw distance and 16.3 / 22.3' (5.0 / 6.8 m) field diameter
    451 lux (42 fc) @ 50.0' (15.2 m) throw distance and 20.4 / 27.8' (6.2 / 8.5 m) field diameter

    For WFL:

    Candela: 34,656
    Field Lumens: 7,628
    Beam Lumens: 4,546
    Efficiency: 46.2%
    Lumens Per Watt: 13.3

    Illuminance:

    5,829 lux (542 fc) @ 8.0' (2.4 m) throw distance and 5.4 / 7.8' (1.7 / 2.4 m) field diameter
    1,457 lux (135 fc) @ 16.0' (4.9 m) throw distance and 10.8 / 15.7' (3.3 / 4.8 m) field diameter
    648 lux (60 fc) @ 24.0' (7.3 m) throw distance and 16.3 / 23.5' (5.0 / 7.2 m) field diameter
    414 lux (39 fc) @ 30.0' (9.1 m) throw distance and 20.3 / 29.4' (6.2 / 9.0 m) field diameter
    Dimensions (HxWxD) 15.9" x 10.3" x 10.8" (404 x 262 x 274 mm)
    Weight 7.5 lb (3.4 kg)
    Dimmer
    Sizing Suggested Breaker Sizing: 20 A
    Voltage Range 85 to 140 V, 180 to 260 V
    Frequency Range 47 to 63 Hz
    Regulations Input: 208 V
    Output: 115 V
    Maximum Output 750 W
    Connectors DMX In and thru
    DMX thru is not self-terminating
    DMX512A/RDM In and Thru via 5-Pin XLR connectors
    Ambient Temperature 104°F (40°C) maximum
    Humidity Between 10 to 95%, non-condensing
    Cooling Convection-cooled, optimum cooling when mounted with heat sink fins in vertical position
    Dimensions (HxWxL) 6.50 x 3.57 x 7.35" (165.10 x 90.68 x 186.69 mm)
    Weight 4.0 lb (1.8 kg)
