User manual EverFocus NeVio Super Low Lux Network Camera EAN850A

Operating instructions and pdf manual for use - EverFocus NeVio Super Low Lux Network Camera EAN850A User manual, User manual EverFocus NeVio Super Low Lux Network Camera EAN850A, EverFocus, NeVio, Super, Low, Lux, Network, Camera, EAN850A,


User manual for EverFocus NeVio Super Low Lux Network Camera EAN850A

EverFocus NeVio Super Low Lux Network Camera EAN850A
  • Manufacturer: EverFocus
  • Basic description and contents of package
  • Product classification:
  • Safety instructions
  • Startup and operation of the
  • Tips for setting up your EverFocus
  • Settings and expert assistance
  • Contact EverFocus service
  • Troubleshooting
  • Warranty information
  • Price: 370 USD
We recommend checking out our discussion threads on the EverFocus NeVio Super Low Lux Network Camera EAN850A, which address similar problems with connecting and setting up EverFocus.



User manual for the EverFocus NeVio Super Low Lux Network Camera EAN850A

The user manual for the EverFocus NeVio Super Low Lux Network Camera EAN850A provides necessary instructions for the proper use of the product .

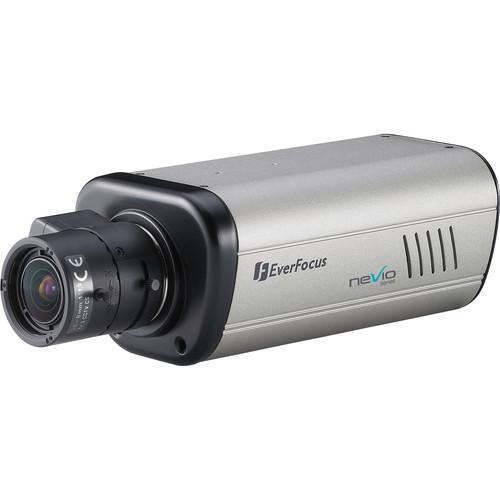

The EverFocus EAN850A NeVio Super Low Lux Network Camera combines traditional CCTV box camera features with advanced network functionality. Video can be captured using the H.264, MPEG-4, MJPEG compression schemes at frame rates of up to 30 FPS at D1 resolution. Up to 4 video streams can be sent simultaneously, with each video stream independently adjustable for frame rates and resolution to suit various recording and viewing requirements.

A built-in memory card slot can be used for local storage as well as to maintain recording functionality during a network failure. An internal motion detection function, adjustable for size and sensitivity, can be used to trigger recording to the SD card or to a PC's hard drive. Motion detection events can also be sent over the network in the form of an email alert along with an attached image of the affected scene.

The EAN850A utilizes a Sony Super HAD CCD to deliver clear and bright images of the surveillance area. In low light levels, the camera activates its Day/Night function to achieve a 0.002 lux sensitivity (sens-up 128x) level. Dynamic Noise Reduction (DNR) is also employed by the camera to reduce noise in the picture, particularly for low light scenes. Because noise is construed as data by the camera, DNR, by removing this information, reduces storage requirements by up to 70 percent.

Included with the camera is EverFocus' NeVio Express software for managing the viewing and recording of up to 16 NeVio series IP cameras. This user-friendly software offers, among other features, simultaneous live viewing/playback/recording, remote alarm/event management, and the ability to record to a local PC.

PoE technology makes it possible to power the camera via its Ethernet cable, eliminating the need to have an AC outlet close to the installation point. There's also an auxiliary BNC analog output for monitoring on site camera and lens adjustments. A built-in microphone along with audio I/O ports can be used for monitoring sound and for 2-way voice communication over the network.
If you own a EverFocus and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the EverFocus NeVio Super Low Lux Network Camera EAN850A in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the EverFocus NeVio Super Low Lux Network Camera EAN850A:
Specifications
    Camera
    Signal System NTSC (for analog output)
    Image Sensor 1/3" Color Sony Super HAD Interlaced CCD
    Horizontal Resolution 560 TVL
    Lens C/CS Mount (manual/DD control supported)
    Iris Operation Support DC drive auto iris lens
    Minimum Illumination 0.25 Lux at F1.2
    0.002 Lux sens-up x128
    IR Illumination None
    Built-In Microphone Yes
    Audio Input x1
    Audio Output x1
    Controls Day/Night: IR cut filter
    E-Shutter: auto/manual
    BLC: on/off
    Mirror: on/off
    AGC/Brightness/Contrast/Color: adjustable
    Alarm I/O 1 Alarm input, 1 alarm output
    Control Port RS-485 interface half-duplex
    Network
    Compression Format H.264/MPEG4/MJPEG
    Supported Protocols HTTP, TCP / IP, UDP, RTP, RTSP, FTP, SMTP, DHCP, DNS, DDNS, NTP
    Picture Size D1, VGA, CIF, QVGA, QCIF - NTSC: 720 x 480, 640 x 480, 352 x 240, 320 x 240, 176 x 144
    Frame Rate Up to 30 FPS
    Built-In SD Card Slot SD/SDHC
    Alarm Events Trigger: Alarm Input, Manual Trigger, Motion Detection and Schedule Recording

    Notification: Trigger alarm output, email notification, upload video to FTP, record video to SD card, record video to PC and network alarm
    Motion Detection Built-in
    Network Interface RJ-45 10BASE-T/100BASE-TX
    Simultaneous Client Access 32 clients simultaneously
    General
    Power Requirements 12VDC or PoE
    Power Consumption 5W max. (12VDC)
    Operating Temperature (for indoor use)
    32 - 104°F (0 - 40°C)
    Dimensions (WxHxD) 2.7 x 2.2 x 5.4" (69 x 57 x 136mm)
    Weight 1.2 lbs (550g)
    Packaging Info
    Package Weight 1.75 lb
    Box Dimensions (LxWxH) 8.1 x 6.0 x 3.3"
    The user manual for the EverFocus NeVio Super Low Lux Network Camera EAN850A can be downloaded in .pdf format if it did not come with your new , although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other EverFocus users keep a unique electronic library for EverFocus s, where you can use our link to download the user manual for the EverFocus NeVio Super Low Lux Network Camera EAN850A.

    The user manual lists all of the functions of the EverFocus NeVio Super Low Lux Network Camera EAN850A, all the basic and advanced features and tells you how to use the . The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from EverFocus service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the EverFocus NeVio Super Low Lux Network Camera EAN850A. User manuals are also available on the EverFocus website under .
