User manual Ewa-Marine VFSX Underwater Housing for Sony PXW-FS7 4K EM VFSX
Operating instructions and pdf manual for use - Ewa-Marine VFSX Underwater Housing for Sony PXW-FS7 4K EM VFSX User manual, User manual Ewa-Marine VFSX Underwater Housing for Sony PXW-FS7 4K EM VFSX, Ewa-Marine, VFSX, Underwater, Housing, Sony, PXW
User manual for Ewa-Marine VFSX Underwater Housing for Sony PXW-FS7 4K EM VFSX
Startup and operation of the camcorders & housings
Tips for setting up your Ewa-Marine
Settings and expert assistance
Contact Ewa-Marine service
Troubleshooting
Warranty information
Price: 945 USD
Click to enlarge image
We recommend checking out our discussion threads on the Ewa-Marine VFSX Underwater Housing for Sony PXW-FS7 4K EM VFSX,
which address similar problems with connecting and setting up Camcorders & Housings Ewa-Marine.
User manual for the Ewa-Marine VFSX Underwater Housing for Sony PXW-FS7 4K EM VFSX
The user manual for the Ewa-Marine VFSX Underwater Housing for Sony PXW-FS7 4K EM VFSX provides
necessary instructions for the proper use of the product Camcorders - Underwater Equipment - Camcorders & Housings.

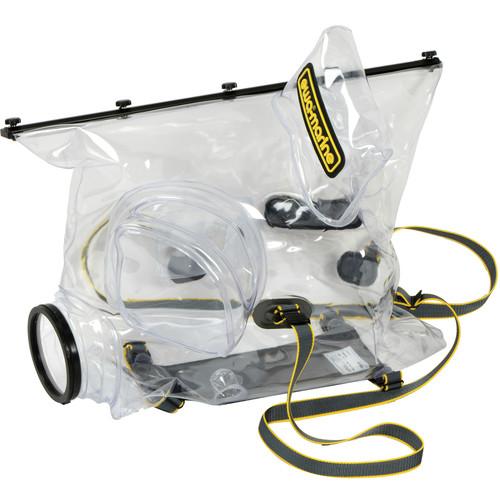

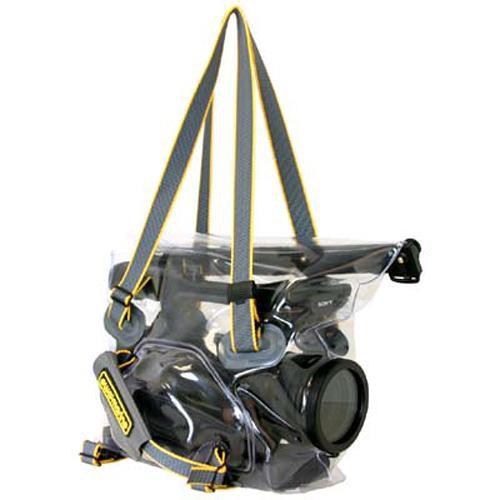

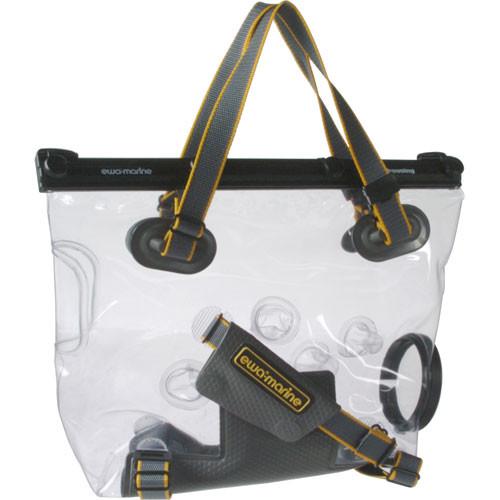

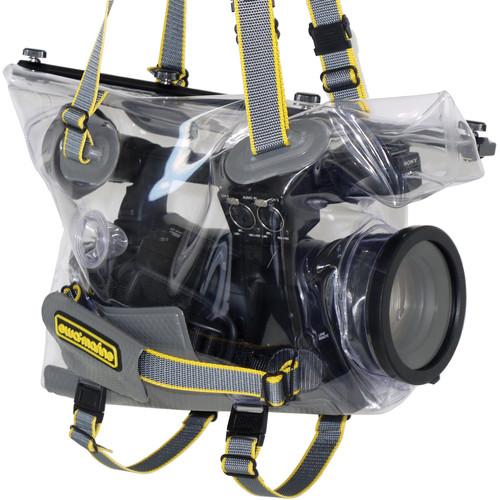

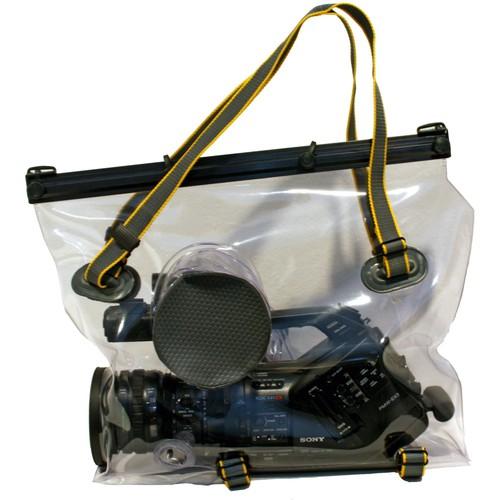

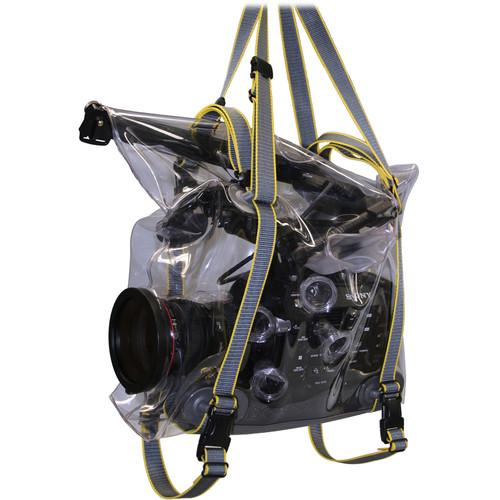

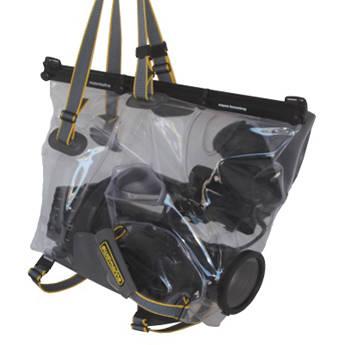

Protect your Sony camcorder underwater at depths of up to 32.8' or when snorkeling or shooting in sandy, dusty, humid, or foul weather conditions with Ewa-Marine'sVFSX Underwater Housing for the Sony PXW-FS7 4K Super 35mm XDCAM. Made of clear, double-laminated PVC, the VFSX supports manual control of the camcorder's menu functions via seven PVC finger pockets built into the housing's flexible skin, which allow easy access to camera functions such as power, iris, white balance and lens. A 3.9" (100mm) integrated, optically-neutral flat glass lens port at the side of the housing attaches to the camcorder lens using Ewa-Marine's CA-adapter ring system and the supplied 82mm threaded aluminum filter ring. This ring fits camera lenses with 82mm filter thread diameters. Mount the adapter onto your front lens element and attach it to the interior of the port to hold the lens securely in place and prevent reflections or other optical disturbances between the two glass surfaces. A RA77-82 reduction adapter is also supplied to adapt lenses with 77mm threads. A large monitor window is integrated into the housing to allow you to move the monitor into the ideal position for the desired application. A pair of corrosion-resistant clamping rails secures the housing to form a waterproof seal at the top via knurled thumb screws, while the camera is cushioned inside by an included foam pad, which also serves as an air reservoir. The unit can be carried by nylon webbing handles. Additional straps can be tightened around the camera to remove excess air when working near or above the water's surface. They also allow for the attachment of weights at the bottom of the housing to adjust buoyancy underwater. Since the volume of air in the housing decreases and the water-pressure increases as you descend underwater, more air is required inside the housing to balance the outside water pressure the deeper you dive. This item also includes a carrying case with a waterproof interior and zippered side-pocket, an initial supply of CD5 drying agent to absorb moisture/condensation, and foam padding to fill empty space when shooting above water.
If you own a Ewa-Marine camcorders & housings and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Ewa-Marine VFSX Underwater Housing for Sony PXW-FS7 4K EM VFSX in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Ewa-Marine VFSX Underwater Housing for Sony PXW-FS7 4K EM VFSX:
Specifications
Depth Rating
32.8' / 10 m
Control Type
Manually controlled from outside housing through flexible skin
Controls
All available camera controls
Material of Construction
Double-laminated PVC Aluminum closing rails, nylon screws with plastic heads 82mm aluminum CA-adapter ring RA77-82 reduction adapter Nylon handle and strapping
External Connectors
None
Port
Integrated, optically neutral flat glass port Port diameter: 3.9" / 100mm
Buoyancy
Depends on air in the housing and attachment of optional weights to straps on bottom
The user manual for the Ewa-Marine VFSX Underwater Housing for Sony PXW-FS7 4K EM VFSX can be downloaded in .pdf
format if it did not come with your new camcorders & housings, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Ewa-Marine users keep a unique electronic library
for Ewa-Marine camcorders & housingss,
where you can use our link to download the user manual for the Ewa-Marine VFSX Underwater Housing for Sony PXW-FS7 4K EM VFSX.
The user manual lists all of the functions of the Ewa-Marine VFSX Underwater Housing for Sony PXW-FS7 4K EM VFSX,
all the basic and advanced features and tells you how to use the camcorders & housings.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Ewa-Marine service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Ewa-Marine VFSX Underwater Housing for Sony PXW-FS7 4K EM VFSX. User manuals are also
available on the Ewa-Marine website under Camcorders - Underwater Equipment - Camcorders & Housings.
