User manual for the Ewa-Marine VMW2 Underwater Housing for Sony PMW-200 EM VMW2 TR

The user manual for the Ewa-Marine VMW2 Underwater Housing for Sony PMW-200 EM VMW2 TR provides necessary instructions for the proper use of the product Camcorders - Underwater Equipment - Camcorders & Housings.

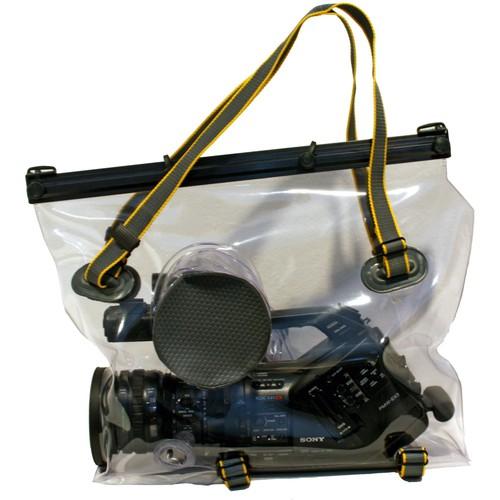

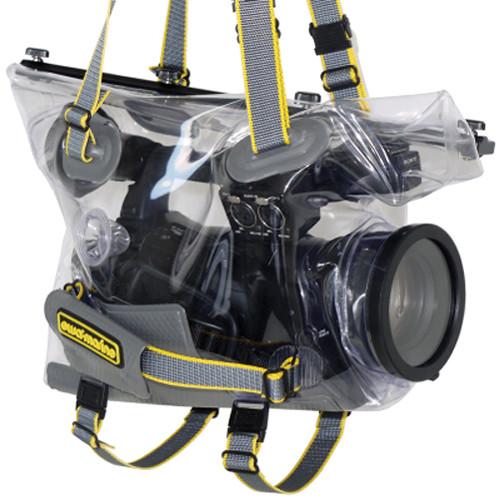

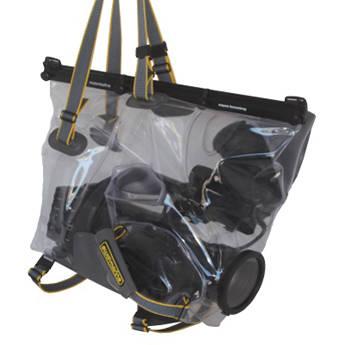

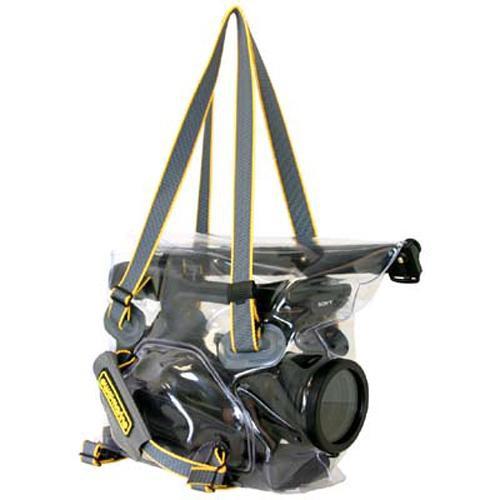

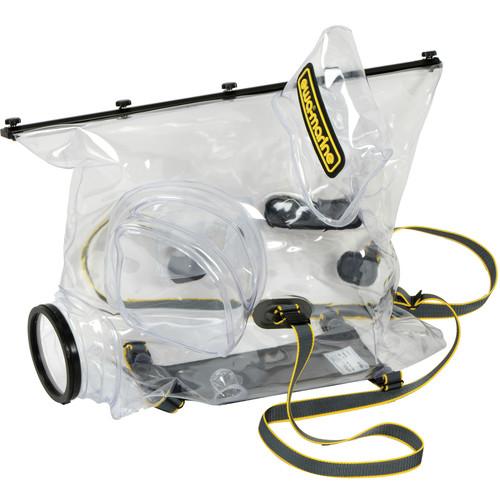

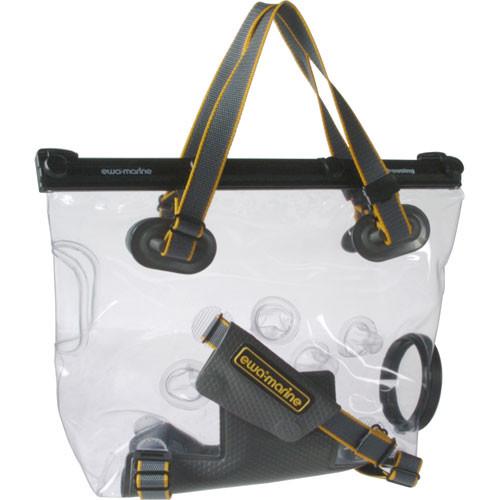

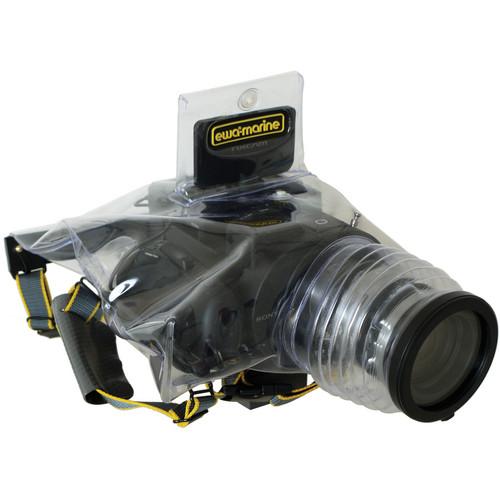

Protect your Sony camcorder underwater at depths of up to 32.8' or when snorkeling or shooting in sandy, dusty, humid, or foul weather conditions with Ewa-Marine's VMW2 Underwater Housing for the Sony PMW-200 or PMW-150 XDCAM. Made of clear, double-laminated PVC, the VMW2TR supports manual control of the camcorder's menu functions via a few PVC finger pockets built into the housing's flexible skin, which allow easy access to camera functions such as power, iris, white balance and lens.

A 3.7" (95mm) integrated, optically-neutral flat glass lens port at the side of the housing attaches to the camcorder lens using Ewa-Marine's CA-adapter ring system and the supplied 77mm threaded aluminum filter ring. This ring fits camera lenses with 77mm filter thread diameters. Mount the adapter onto your front lens element and attach it to the interior of the port to hold the lens securely in place and prevent reflections or other optical disturbances between the two glass surfaces. The camera's viewfinder and monitor are both accessible at the rear of the housing.

A pair of corrosion-resistant clamping rails secures the housing to form a waterproof seal at the top via knurled thumb screws, while the camera is cushioned inside by an included foam pad, which also serves as an air reservoir. The unit can be carried by nylon webbing handles. Additional straps can be tightened around the camera to remove excess air when working near or above the water's surface. They also allow for the attachment of weights at the bottom of the housing to adjust buoyancy underwater. Since the volume of air in the housing decreases and the water-pressure increases as you descend underwater, more air is required inside the housing to balance the outside water pressure the deeper you dive.

This item also includes a carrying case with a waterproof interior and zippered side-pocket, an initial supply of CD5 drying agent to absorb moisture/condensation, foam padding to fill empty space when shooting above water, and a tripod connector with mounting plates for 1/4"-20 and 3/8"-16 threads and a quick-release head.
If you own a Ewa-Marine camcorders & housings and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Ewa-Marine VMW2 Underwater Housing for Sony PMW-200 EM VMW2 TR in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Ewa-Marine VMW2 Underwater Housing for Sony PMW-200 EM VMW2 TR:
Specifications
    Depth Rating 32.8' / 10 m
    Control Type Manually controlled from outside housing through flexible skin
    Controls All available camera controls
    Material of Construction Double-laminated PVC
    Aluminum closing rails, nylon screws with plastic heads
    77mm aluminum CA-adapter ring
    Nylon handle and strapping
    External Connectors None
    Port Integrated, optically neutral flat glass port
    Port diameter: 3.7" / 95mm
    Buoyancy Depends on air in the housing and attachment of optional weights to straps on bottom
    Microphone No
    Moisture Alarm No
    Mounting Tripod Connector with anodized aluminum mounting plate to accomodate 1/4"-20 and 3/8"-16 screw threads and a quick-release head
    Color Clear
    Dimensions Overall: 13.8 x 4.7 x 13" / 35 x 12 x 33 cm
    Front port diameter: 3.75" / 9.5 cm
    Weight (without Camcorder) 1.8 lb / 0.8 kg
    Packaging Info
    Package Weight 3.35 lb
    Box Dimensions (LxWxH) 17.0 x 11.5 x 5.9"
    The user manual for the Ewa-Marine VMW2 Underwater Housing for Sony PMW-200 EM VMW2 TR can be downloaded in .pdf format if it did not come with your new camcorders & housings, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Ewa-Marine users keep a unique electronic library for Ewa-Marine camcorders & housingss, where you can use our link to download the user manual for the Ewa-Marine VMW2 Underwater Housing for Sony PMW-200 EM VMW2 TR.

    The user manual lists all of the functions of the Ewa-Marine VMW2 Underwater Housing for Sony PMW-200 EM VMW2 TR, all the basic and advanced features and tells you how to use the camcorders & housings. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Ewa-Marine service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Ewa-Marine VMW2 Underwater Housing for Sony PMW-200 EM VMW2 TR. User manuals are also available on the Ewa-Marine website under Camcorders - Underwater Equipment - Camcorders & Housings.
