Fat Shark  DominatorV2 VGA FPV Headset FSV2400
  • Manufacturer: Fat Shark
  • Basic description and contents of package
  • Product classification: Camcorders - Aerial Imaging & Drones - FPV (First Person View) Components
  • Safety instructions
  • Startup and operation of the fpv (first person view) components
  • Tips for setting up your Fat Shark
  • Settings and expert assistance
  • Contact Fat Shark service
  • Troubleshooting
  • Warranty information
  • Price: 399 USD
We recommend checking out our discussion threads on the Fat Shark DominatorV2 VGA FPV Headset FSV2400, which address similar problems with connecting and setting up FPV (First Person View) Components Fat Shark.



User manual for the Fat Shark DominatorV2 VGA FPV Headset FSV2400

The user manual for the Fat Shark DominatorV2 VGA FPV Headset FSV2400 provides necessary instructions for the proper use of the product Camcorders - Aerial Imaging & Drones - FPV (First Person View) Components.

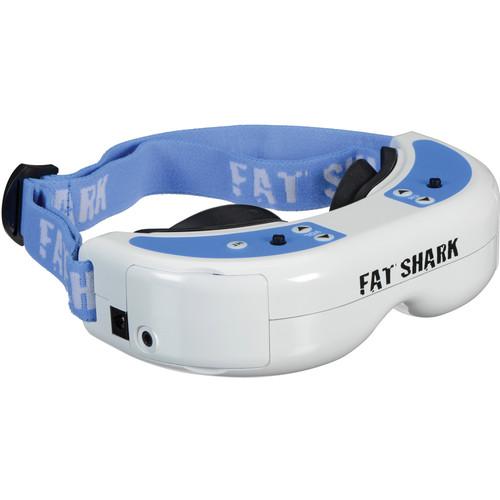

The DominatorV2 VGA FPV Headset from Fat Shark allows for first-person viewing (FPV) of the video downlink from the wireless transmitter on your RC aircraft for a truly immersive flying experience. It features an VGA (600 x 480) resolution image with a 35° field of view, and an integrated DVR which records the video downlink to microSD/SDHC cards up to 32GB in size.

The DominatorV2 uses a modular design, meaning that additional modules and accessories must be added for functionality of the unit. In order to receive the video downlink from your wireless video transmitter, a receiver module is required. Receiver modules are available in 1.3GHz, 2.4GHz, or 5.8GHz options. Please note that Fat Shark only guarantees compatibility with NexwaveRF modules from Fat Shark for ImmersionRC. To install the receiver module, simply remove the door panel on the side of the headset, insert the module, and snap the door panel back in place.

For the most immersive experience, the optional 3-Axis Trinity Head Tracker module can be inserted into a slot on the opposite side of the headset, accessed through a second removable door panel. The head tracker lets you control pan, tilt, and roll of your aircraft-mounted FPV camera (sold separately) using the motion of the headset.

Power is provided to the headset using the included DC power cable, or the optional "dog bone" shaped 1000mA battery pack, which securely fits in a head strap pocket on the headset. The battery pack includes a 3 pole balance lead for charging off standard RC type chargers. Also included with the headset is a DC power cable, AV cable, and carry case.
