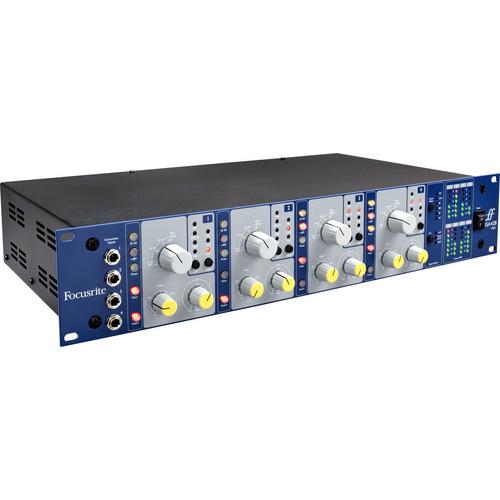

The ISA428 MkII from Focusrite is a four-channel microphone preamp featuring Focusrite's transformer-based preamps. With selectable input impedance, direct instrument inputs and an optional eight channels of high-quality analog to digital conversion, the unit is a perfect front end for the audio professional, whether utilizing digital or analog recording.
If you own a Focusrite microphone preamps and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Focusrite ISA428 MkII - Microphone Preamp ISA428MK2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Focusrite ISA428 MkII - Microphone Preamp ISA428MK2:
Number of Channels 4
Inputs 4 x XLR Microphone (rear panel)
4 x 1/4" TS phone Instrument (front panel)
4 x 1/4" TRS phone Line (rear panel)
4 x 1/4" TRS phone Insert Return (front Panel)
4 x XLR ADC Input for optional AD converter card (rear panel)
Output 4 x XLR Line (rear panel)
4 x 1/4" TRS phone Insert Send (rear panel)
Phantom Power +48V individually switchable
Multi Function Has provision for optional analog to digital converter
Gain Range Microphone: 0dB to +60dB in 10dB steps, plus 0dB to +20dB continuously variable trim
Line: -20dB to +10dB in 10dB steps, plus 0dB to +20dB continuously variable trim
Instrument: +10dB to +40dB continuously variable
Input Impedance Microphone: 600Ω, 1.4kΩ, 2.4kΩ, 6.8kΩ
Line: 10kΩ
Instrument: >1MΩ
Maximum Output Level Microphone: +7.4dBu
Line: +25.4dBu
Instrument: +11.5dBu
Frequency Response Microphone: -0.35dB at 20Hz and -3.0dB at 122kHz (0dB gain) and -2.5dB at 20Hz and -3.0dB at 103kHz (60dB gain)
Line: -0.3dB at 20Hz and -3dB at 94kHz (0dB gain)
Instrument: -0.2dB at 20Hz and 0dB at 200kHz (+10dB gain) and -3.0dB at 20Hz and -3.0dB at 38.4kHz (+40dB gain)
THD + N Microphone: 0.0009% (measured at 1kHz, -20dBu input signal, at 30dB gain setting, with a 20Hz/22kHz bandpass filter)
Line: 0.002% (measured with +4dBu input signal, 0dB gain setting, with a 20Hz/22kHz bandpass filter)
Instrument: 0.006% (measured with -20dBu input signal, at minimum gain (+10dB), with a 20Hz/22kHz bandpass filter)
Noise Microphone:

  • Noise EIN: -126dB (measured at 60dB of gain with 150Ω termination and 20Hz/22kHz bandpass filter)
  • Noise at main output with unity gain: -98dBu (measured with a 20Hz/22kHz bandpass filter)
  • SNR: 123dB (relative to max output 25dBu)
  • SNR: 120dB (relative to 0dBFS (+22dBu)

Line:

  • Noise at main output with unity gain: -91dBu (measured with a 20Hz/22kHz bandpass filter)
  • SNR: 116dB (relative to max output 25dBu)
  • SNR: 113dB (relative to 0dBFS +22dBu)

Instrument:

  • Noise at main output with minimum gain (+10dB): -95dBu (measured with a 20Hz/22kHz bandpass filter)
CMRR Microphone: 88dB
Meters Each 6-LED meter is calibrated 0dBFS = +22dBu (the maximum level which can be correctly converted by the optional internal A/D converter before overload occurs). The meter calibration points are as follows:

Meter panel calibration value in dBFS / Equivalent dBu value:

  • 0dBFS / +22dBu
  • -2dBFS / +20dBu
  • -6dBFS / +16dBu
  • -12dBFS / +10dBu
  • -18dBFS / +4dBu
  • -42dBFS / -20dBu
Power Requirements 100VAC~240VAC
Dimensions (WxDxH) 19 x 11 x 3.5" (483 x 279 x 89mm)
Weight 12.2 lbs (5.5kg)
Specialties High Pass Filter
Roll off = 18dB per octave 3 pole filter
Frequency range: 16Hz to 420Hz (continuously variable, measured at the 3.0dB down point)
Packaging Info
Package Weight 17.55 lb
Box Dimensions (LxWxH) 25.0 x 18.0 x 9.0"
