User manual for the Focusrite iTrack Solo (Lightning) - USB ITRACK-SOLO-LIGHTNING

The user manual for the Focusrite iTrack Solo (Lightning) - USB ITRACK-SOLO-LIGHTNING provides necessary instructions for the proper use of the product Pro Audio - iOS/iPad - Audio Interfaces.

The iTrack Solo (Lightning) from Focusrite is a 2 input/2 output USB audio interface that provides an easy way to record instruments and vocals to a Lightning compatible iPad, or a Mac or Windows based computer. Featuring a Focusrite microphone preamp, the interface is housed in a compact, rugged but lightweight aluminum case, and is an excellent companion for any singer-songwriter who wants to record their creations or practice.

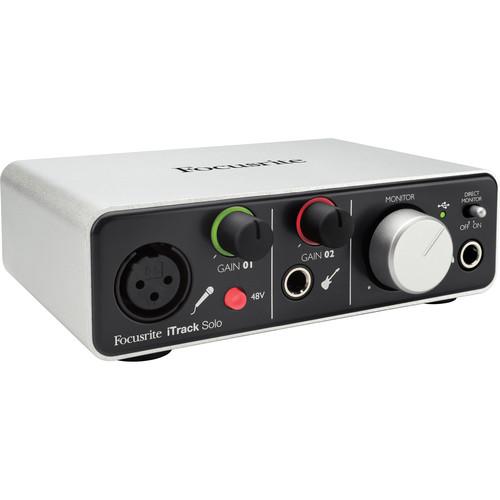

The front panel has an input for a microphone, along with an input for an instrument such as an electric guitar, bass guitar, or the output of an electro-acoustic guitar. Signal halos around the gain knobs provide feedback for setting optimal audio levels for recording. The headphone output includes a Direct Monitor Switch for eliminating any latency during recording and a pair of RCA line outputs allow for connectivity to other monitoring solutions.

The unit supports a digital resolution of up to 24-bit/96 kHz and includes Ableton Live Lite music making software and the Focusrite Scarlett Plug-In Suite, the latter providing several audio processing tools including gate and reverb, compression, and EQ.
If you own a Focusrite audio interfaces and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Focusrite iTrack Solo (Lightning) - USB ITRACK-SOLO-LIGHTNING in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Focusrite iTrack Solo (Lightning) - USB ITRACK-SOLO-LIGHTNING:
System
Type USB 2.0 audio interface
Conversion Up to 24-bit/96 kHz
Mic Preamps 1 x Focusrite microphone preamplifier
Front Panel 1 x XLR microphone input
1 x 1/4" TS instrument input (unbalanced)
2 x Gain knobs with gain halo signal indicators
1 x 1/4" TRS headphone out
48V phantom power switch
Direct monitor switch
Monitor level dial (controls headphone and line level outputs)
USB connection LED indicator
Rear Panel 2 x RCA phono line out, unbalanced
DEVICE LINK port (to connect iTrack Solo to iPad)
USB 2.0 port
Kensington Lock slot
Analog Performance
Mic Input Performance Frequency Response: 20 Hz to 20 kHz, +/-0.2 dB
THD+N: <0.002 (minimum gain, -1 dBFS input with 22 Hz/22 kHz band-pass filter)
Equivalent Input Noise (EIN): < -120 dB measured at minimum gain with, -1 dBFS (20 Hz/22 kHz band-pass filter)
Gain Range: +10 to +55 dB
Max Input Level: -3 dBu
Instrument Input Performance Frequency Response: 20 Hz to 20 kHz, +/-0.2 dB
THD+N: 0.003% (measured with -1 dBFS input and 22 Hz/22 kHz band-pass filter)
Noise: -87 dBu (22 Hz/22 kHz band-pass filter)
Gain Range: -10 to +55 dB
Maximum Input Level: -3 dBu
Analog Output Performance Nominal Output Level: 0 dBFS = 10 dBu (unbalanced)
Frequency Response: 20 Hz to 20 kHz (+/-0.2 dB)
THD+N: <0.001% (measured with 0 dBFS input 22 Hz/22 kHz band-pass filter, unweighted)
Digital AD/DA Performance
Clock Sources Internal only
Dynamic Range A-D Dynamic Range: 105 dB A-weighted (all inputs)
Converter Chipset A-D Dynamic Range: 114 dB
D-A Dynamic Range: 105 dB A-weighted (all outputs)
Converter Chipset D-A Dynamic Range: 114 dB
Sample Rates Mac and PC: 44.1, 48, 88.2 and 96 kHz
iPad: 44.1 and 48 kHz
General
Crosstalk Input to Input: <90 dB
Output to Output: <90 dB
Input to Output: <85 dB
Input Metering Ring LED (Lit Green): Signal present (-24 dBFS)
Ring LED (Lit Red): Signal overload (0 dBFS), peak held for approximately 1 sec
Download Ableton Live Lite software
Focusrite Scarlett Plug-In Suite
Power Requirements For iPad, USB power from AC adapter
When using computer, bus power from the computer
System Requirements Mac: Mac OS X 10.7.3 (Lion) and 10.8 (Mountain Lion)
PC: Windows 7 (32-bit/64-bit) and Windows 8
Apple iPad: iPad Air, iPad with Retina Display, iPad mini with Retina Display, iPad mini
iOS 6 and above
Dimensions (WxDxH) 6.0 x 4.0 x 1.75" (150 x 100 x 45 mm)
Weight 1 lb (500 g)
Packaging Info
Package Weight 1.8 lb
Box Dimensions (LxWxH) 9.0 x 6.7 x 3.9"
