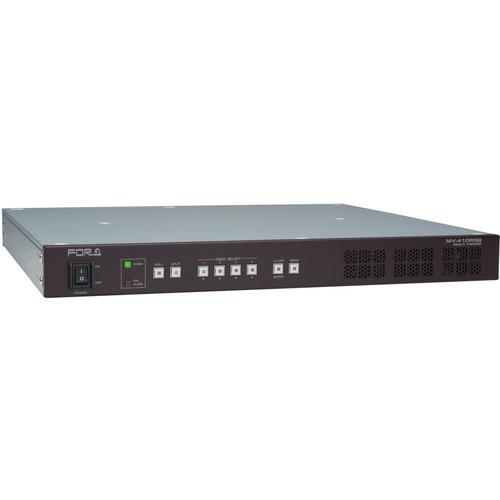

The MV-410RGB PC/Video High Resolution Quad Viewer from For.A is a 4 split-screen system supporting mixed input of DVI (digital and analog RGB) and analog composite signals. High-resolution video output is possible using the DVI terminal. It also supports user-created patterns.
If you own a For.A multi viewer processors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the For.A MV-410RGB PC/Video High Resolution Quad Viewer MV-410RGB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the For.A MV-410RGB PC/Video High Resolution Quad Viewer MV-410RGB:
Specifications
    Inputs Video:
    Analog composite: 1.0 Vp-p, 75Ω, 4 inputs, BNC
    NTSC, PAL (mixed input and asynchronous input are possible)
    PC:
    DVI-I connector (analog or digital), 4 inputs
    Resolution (analog): 1280 x 1024, 1360 x 768, 1024 x 768, 640 x 480 / Frequency: 60Hz Resolution (digital): 1920 x 1200, 1600 x 1200, 1280 x 1024, 1360 x 768, 1024 x 768, 640 x 480 / Frequency: 60Hz
    Video Input:
    -Four channels are available for simultaneously displayable input (choose from a menu for each channel).
    - DVI-I connectors support both analog and digital input. Each connector can be connected for either one type of input.
    - No frame rate conversion function between input videos and input/output videos.
    *If video is displayed with different frame rates, dropped frames, etc. may occur periodically.
    Outputs Video Output:
    DVI-I connector (analog and digital), 1 output
    Resolution: 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200, 1440 x 900, 1360 x 768, 1280 x 1024, 1280 x 720
    Frequency: 60Hz/ 59.94Hz/ 50Hz
    Performance Quantization:
    8-bit
    I/O Delay:
    1 to 3 frames
    Split-Screen Patterns:
    Full screen, user-selected screen (4-pattern touch button recall memory)
    Character Display:
    Display characters: Maximum of 16 characters x 1 line per input channel
    Character types: Alphanumeric, symbols (two-byte characters)
    Tally Display:
    Tally indication appears as border (red or green) around each channel screen
    Time Display:
    Analog clock display (accuracy within +/-10 sec per month.)
    Interfaces RS-232C: 1 port, 9-pin D-sub (male) - Baud rate 9600bps, Data length 8 bit, Stopbit 1 bit, No parity - Control: Video output selection TALLY IN: 1 port, 50-pin D-sub (female) *Shared with REMOTE IN - 4 inputs x 2 colors (red or green color frame display) TTL negative logic level signal or make-contact input REMOTE IN: 1 port, 50-pin D-sub (female) *Shared with TALLY IN - Control: Switching between full screen and split-screen display TTL negative logic level signal or make-contact input LAN: 10Base-T/100Base-TX, 1 port, RJ-45 (CAT5 support) - Control: Video output selection
    Power 100 to 240VAC +/-10%, 50Hz/60Hz / 52VA (51W)
    Dimensions (HxWxD) 1.73 x 16.93 x 15.74" (44 x 430 x 400mm)
    Weight 11.02 lbs (5kg)
