User manual FotodioX C-200RS FlapJack LED Bi-Color Edge Light LED-C-200-RS

Operating instructions and pdf manual for use - FotodioX C-200RS FlapJack LED Bi-Color Edge Light LED-C-200-RS User manual, User manual FotodioX C-200RS FlapJack LED Bi-Color Edge Light LED-C-200-RS, FotodioX, C-200RS, FlapJack, LED, Bi-Color, Edge


User manual for FotodioX C-200RS FlapJack LED Bi-Color Edge Light LED-C-200-RS

FotodioX C-200RS FlapJack LED Bi-Color Edge Light LED-C-200-RS
  • Manufacturer: FotodioX
  • Basic description and contents of package
  • Product classification: Lighting & Studio - Continuous Lighting - LED Light Kits
  • Safety instructions
  • Startup and operation of the led light kits
  • Tips for setting up your FotodioX
  • Settings and expert assistance
  • Contact FotodioX service
  • Troubleshooting
  • Warranty information
  • Price: 260 USD
We recommend checking out our discussion threads on the FotodioX C-200RS FlapJack LED Bi-Color Edge Light LED-C-200-RS, which address similar problems with connecting and setting up LED Light Kits FotodioX.



User manual for the FotodioX C-200RS FlapJack LED Bi-Color Edge Light LED-C-200-RS

The user manual for the FotodioX C-200RS FlapJack LED Bi-Color Edge Light LED-C-200-RS provides necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - LED Light Kits.

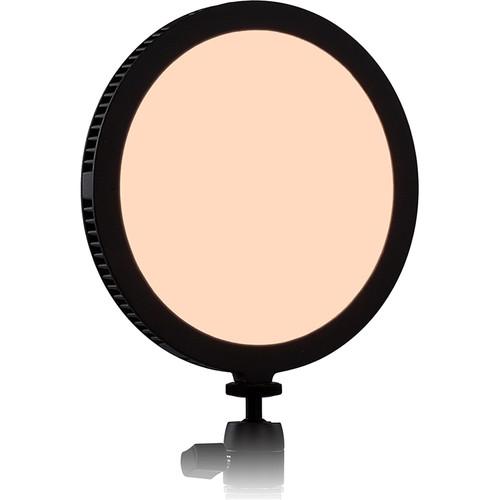

The 7" diameter C-200RS FlapJack LED Bi-Color Edge Light from Fotodiox is a light source that uses Edgelight technology that entails pointing LEDs toward the outer edge of the fixture and reflecting them back toward the middle for ultra soft results. This versatile light also has color that's variable from 3200 to 5600K while maintaining a CRI of 91 to 92 for faithful rendition of colors and even the subtlest hues. It's dimmable as well from 10-100%. A back-lit LCD indicator shows light level, color temperature and battery life status. At only 1/2 inch thick the C-200RS fits where other lights just can't go. And you can work close-up too, without fear of causing the talent discomfort since running the light all day at full power barely makes it warm to the touch.
If you own a FotodioX led light kits and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the FotodioX C-200RS FlapJack LED Bi-Color Edge Light LED-C-200-RS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the FotodioX C-200RS FlapJack LED Bi-Color Edge Light LED-C-200-RS:
Specifications
Type LED
Color Balance 3200 to 5600 K (+/- 200K)
CRI At 5590 K: 91 @ 3.28' (1.0 m)
At 3209 K: 92 @ 3.28' (1.0 m)
Light Intensity At 3200 K: 6.0 EV/ 220 lux @ 3.28' (1.0 m)
At 5600 K: 6.3 EV/ 245 lux @ 3.28' (1.0 m)
Dimming 10-100%
Mounting Light stand mounting bracket with ball joint
Power Included 110-240 VAC supply
Included 1x NP-F740 style battery (7.4v - 4400 mAh, 32.56 Wh)
Battery Run Time 50% Power: approx. 6 hr 11 min
100% Power approx. 2 hr 42 min
Dimensions Housing: 7.0" (17.8 cm) Diameter x 0.5" (1.3 cm) thick
Illuminated area: 5.9" (15 cm) diameter
Weight Not specified by manufacturer
Packaging Info
Package Weight 4.65 lb
Box Dimensions (LxWxH) 16.4 x 12.9 x 4.2"
The user manual for the FotodioX C-200RS FlapJack LED Bi-Color Edge Light LED-C-200-RS can be downloaded in .pdf format if it did not come with your new led light kits, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other FotodioX users keep a unique electronic library for FotodioX led light kitss, where you can use our link to download the user manual for the FotodioX C-200RS FlapJack LED Bi-Color Edge Light LED-C-200-RS.

The user manual lists all of the functions of the FotodioX C-200RS FlapJack LED Bi-Color Edge Light LED-C-200-RS, all the basic and advanced features and tells you how to use the led light kits. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from FotodioX service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the FotodioX C-200RS FlapJack LED Bi-Color Edge Light LED-C-200-RS. User manuals are also available on the FotodioX website under Lighting & Studio - Continuous Lighting - LED Light Kits.
