User manual for the Fredenstein F603A High-Q Four Band Equalizer F603A

The user manual for the Fredenstein F603A High-Q Four Band Equalizer F603A provides necessary instructions for the proper use of the product Pro Audio - Recording - Equalizers.

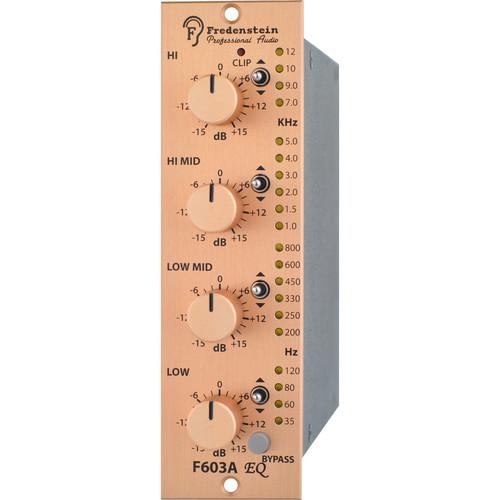

The F603A from Fredenstein is a high performance High-Q four band equalizer for tracking and mixing. The F603A features a Q Factor of 2, and passive LC (Inductor / Capacitor) filters combined with a very short signal pass. The low and high frequency filters are shelving types, while the mid frequencies are band pass filters. Each shelving filter has four different frequencies while the band pass filters offer six. The active filter range is indicated by LEDs. To facilitate sound comparisons, a hard bypass is available. The gain range for each filter is +/- 16 dB. All filters are switched by relays to guarantee the highest possible sound quality. The high power output stage with an impedance of less than 20 ohms and a driving capability of up to +/- 200mA ensures no loss of performance even with demanding complex loads. The F603A is designed by a German-American team and manufactured in Taiwan.
If you own a Fredenstein equalizers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Fredenstein F603A High-Q Four Band Equalizer F603A in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Fredenstein F603A High-Q Four Band Equalizer F603A:
Specifications
Compatibility Bento Series enclosures
Frequency Response 20 Hz to 20 kHz, +/-0.2 dB
Distortion < 0.01%
S/N Ratio > 90 dB @ 0 dB gain
Input Impedance >10 kOhms
Maximum Input Level +24 dBu balanced
Output Impedance 20 ohms
Maximum Output Current +/-200 mA
Maximum Output Level +26 dBu balanced
High Frequency EQ Shelving Filter: 9 kHz - 12 kHz in 4 steps
Shelving Gain: +/- 16 dB
High-Mid Frequency EQ Band Pass Filter: 1000 Hz - 5000 Hz in 6 steps
Band Pass Gain: +/- 16 dB
Filter Q: 2
Low-Mid Frequency EQ Band Pass Filter: 200 Hz - 800 Hz in 6 steps
Band Pass Gain: +/- 16 dB
Filter Q: 2
Low Frequency EQ Shelving Filter: 35 Hz - 120 Hz in 4 steps
Shelving Gain: +/- 16 dB
Power Consumption +/-16V, +/-200 mA (600 Ohms load)
Dimensions Not Specified by Manufacturer
The user manual for the Fredenstein F603A High-Q Four Band Equalizer F603A can be downloaded in .pdf format if it did not come with your new equalizers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Fredenstein users keep a unique electronic library for Fredenstein equalizerss, where you can use our link to download the user manual for the Fredenstein F603A High-Q Four Band Equalizer F603A.

The user manual lists all of the functions of the Fredenstein F603A High-Q Four Band Equalizer F603A, all the basic and advanced features and tells you how to use the equalizers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Fredenstein service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Fredenstein F603A High-Q Four Band Equalizer F603A. User manuals are also available on the Fredenstein website under Pro Audio - Recording - Equalizers.
