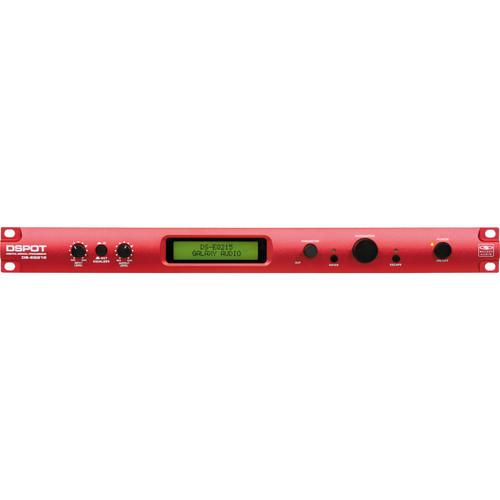

The Galaxy Audio DSPOT DS-EQ215 Dual-Channel 15-Filter Parametric and Graphic Digital Equalizer is designed for installed and portable live sound reinforcement applications. The 1RU rackmountable digital signal processor features balanced XLR and 1/4" inputs and outputs. It can be operated in stereo or dual independent channel configurations, and provides 15 bands of parametric or graphic EQ filters per channel. The unit also offers high-pass and low-pass filtering with a slope of up to 24 dB per octave as well as independent gain, phase, delay, and output mute controls on each channel. This makes it possible to time align and configure a loudspeaker system within a space.

The unit can be controlled via the front-panel LCD display control interface, via MIDI using the rear-panel MIDI in and out connectors, via an RS232 serial port, or via USB connection to an external PC. Control software is available via an included CD or via download from the manufacturer's website. The unit includes 16 factory memory presets and 16 user memory presets that can be recalled for different applications.
If you own a Galaxy Audio equalizers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Galaxy Audio DSPOT DS-EQ215 Dual-Channel 15-Filter DS-EQ215 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Galaxy Audio DSPOT DS-EQ215 Dual-Channel 15-Filter DS-EQ215:
Inputs 2x XLR-3F balanced
2x 1/4" TRS unbalanced
Input Level 9 dBu max
Outputs 2x XLR-3M balanced
2x 1/4" TRS unbalanced
Output Level 9 dBu max
EQ Type Parametric or graphic
Amplitude PEQ: ± 14 dB step 0.5 dB
Frequency Control PEQ: from 20 to 20,000 Hz in 1/12 octave steps
High pass: from 20 to 20,000 Hz in 1/12 octave steps
Low pass: from 20 to 20,000 Hz in 1/12 octave steps
Slope High: bypass, -6 dB/octave, -12 dB/octave
Low: bypass, -6 dB/octave, -12 dB/octave
Bandwidth PEQ: from 0.04 to 128 (vedi Tab. Q)
Delay Coarse adjustment: from 0 to 198 ms in 2 ms steps
Fine adjustment: from 0 to 1 ms in 21 us steps
Mute On/off
Resolution A/D and D/A: 20 bit
Process: 24 x 32-bit
Processes Equalizer
Display LCD 2x20 alphanumeric
Connectivity RS232
MIDI
USB
S/N Ratio >90 dBA (bypass)
THD + N <0.01% at -6 dBFS (bypass)
Frequency Response 20 to 20,000 Hz +1 to 0.5 dB
Dimensions (DxWxH) 7.75 x 19.0 x 1.75" (197 x 483 x 44.5 mm)
Weight 5.5 lb (2.5 kg)
Packaging Info
Package Weight 7.4 lb
Box Dimensions (LxWxH) 20.9 x 12.0 x 3.8"
