User manual Galaxy Audio DSPOT DS-EQ230 Dual-Channel 30-Filter DS-EQ230

Operating instructions and pdf manual for use - Galaxy Audio DSPOT DS-EQ230 Dual-Channel 30-Filter DS-EQ230 User manual, User manual Galaxy Audio DSPOT DS-EQ230 Dual-Channel 30-Filter DS-EQ230, Galaxy, Audio, DSPOT, DS-EQ230, Dual-Channel, 30-Filte


User manual for Galaxy Audio DSPOT DS-EQ230 Dual-Channel 30-Filter DS-EQ230

Galaxy Audio DSPOT DS-EQ230 Dual-Channel 30-Filter DS-EQ230
  • Manufacturer: Galaxy Audio
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Equalizers
  • Safety instructions
  • Startup and operation of the equalizers
  • Tips for setting up your Galaxy Audio
  • Settings and expert assistance
  • Contact Galaxy Audio service
  • Troubleshooting
  • Warranty information
  • Price: 390 USD
We recommend checking out our discussion threads on the Galaxy Audio DSPOT DS-EQ230 Dual-Channel 30-Filter DS-EQ230, which address similar problems with connecting and setting up Equalizers Galaxy Audio.



User manual for the Galaxy Audio DSPOT DS-EQ230 Dual-Channel 30-Filter DS-EQ230

The user manual for the Galaxy Audio DSPOT DS-EQ230 Dual-Channel 30-Filter DS-EQ230 provides necessary instructions for the proper use of the product Pro Audio - Recording - Equalizers.

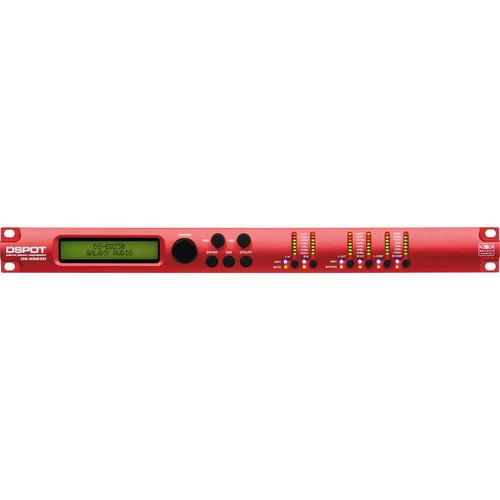

The Galaxy Audio DSPOT DS-EQ230 Dual-Channel 30-Filter Parametric and Graphic Digital Equalizer is designed for installed and portable live sound reinforcement applications. The 1RU rackmountable digital signal processor features balanced XLR inputs and outputs as well as a stereo digital SPDIF input.

It can be operated in stereo or dual independent channel configurations, and provides 30 bands of parametric or graphic EQ filters per channel. The unit also offers high-pass and low-pass filtering with a slope of up to 24 dB per octave as well as independent gain, phase, delay, RMS limiting, and output mute controls on each channel. This makes it possible to time align and configure a loudspeaker system within a space.

The unit can be controlled via the front-panel LCD display control interface, via RS485 control, or via USB connection to an external PC. Control software is available via an included CD or via download from the manufacturer's website. The unit includes 4 factory memory presets and 16 user memory presets that can be recalled for different applications.
If you own a Galaxy Audio equalizers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Galaxy Audio DSPOT DS-EQ230 Dual-Channel 30-Filter DS-EQ230 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Galaxy Audio DSPOT DS-EQ230 Dual-Channel 30-Filter DS-EQ230:
Specifications
    Inputs 2x XLR-3F balanced analog
    1x stereo digital SPDIF
    1x RS485
    1x USB type A port
    Input Level +20 dBu max
    Outputs 2x XLR-3M balanced analog
    1x RS485
    Output Level +20 dBu max
    DSP SAM3716, 24-bits (data) x 96-bits (coefficient)
    A/D Converters AKM5392, 24-bits
    D/A Converters AJN4396, 24-bits
    Sampling Frequency 48 kHz
    SPDIF 32 kHz, 44.1 to 48 kHz sources accepted
    EQ Type Parametric or graphic
    S/N Ratio 110 dBA
    THD + N 0.005%
    Frequency Response 20 to 20,000 Hz ± 1 dB
    Power Supply Switching power supply
    Dimensions (DxWxH) 9.25 x 19.0 x 1.75" (235 x 483 x 44.5 mm)
    Weight 6.3 lb (2.9 kg)
    Packaging Info
    Package Weight 7.0 lb
    Box Dimensions (LxWxH) 24.0 x 14.0 x 6.0"
    The user manual for the Galaxy Audio DSPOT DS-EQ230 Dual-Channel 30-Filter DS-EQ230 can be downloaded in .pdf format if it did not come with your new equalizers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Galaxy Audio users keep a unique electronic library for Galaxy Audio equalizerss, where you can use our link to download the user manual for the Galaxy Audio DSPOT DS-EQ230 Dual-Channel 30-Filter DS-EQ230.

    The user manual lists all of the functions of the Galaxy Audio DSPOT DS-EQ230 Dual-Channel 30-Filter DS-EQ230, all the basic and advanced features and tells you how to use the equalizers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Galaxy Audio service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Galaxy Audio DSPOT DS-EQ230 Dual-Channel 30-Filter DS-EQ230. User manuals are also available on the Galaxy Audio website under Pro Audio - Recording - Equalizers.
