User manual Garmin RINO 650 Two-Way FRS/GMRS GPS Radio 010-00928-01

Operating instructions and pdf manual for use - Garmin RINO 650 Two-Way FRS/GMRS GPS Radio 010-00928-01 User manual, User manual Garmin RINO 650 Two-Way FRS/GMRS GPS Radio 010-00928-01, Garmin, RINO, 650, Two-Way, FRS/GMRS, GPS, Radio, 010-00928-01


User manual for Garmin RINO 650 Two-Way FRS/GMRS GPS Radio 010-00928-01

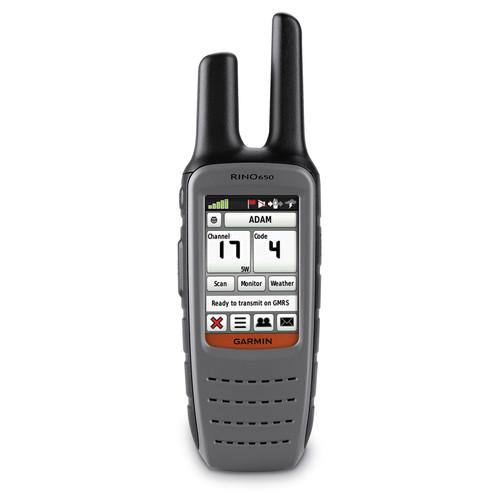

Garmin RINO 650 Two-Way FRS/GMRS GPS Radio 010-00928-01
  • Manufacturer: Garmin
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - 2-Way Radios
  • Safety instructions
  • Startup and operation of the 2-way radios
  • Tips for setting up your Garmin
  • Settings and expert assistance
  • Contact Garmin service
  • Troubleshooting
  • Warranty information
  • Price: 399 USD
We recommend checking out our discussion threads on the Garmin RINO 650 Two-Way FRS/GMRS GPS Radio 010-00928-01, which address similar problems with connecting and setting up 2-Way Radios Garmin.



User manual for the Garmin RINO 650 Two-Way FRS/GMRS GPS Radio 010-00928-01

The user manual for the Garmin RINO 650 Two-Way FRS/GMRS GPS Radio 010-00928-01 provides necessary instructions for the proper use of the product Pro Audio - Location Sound - 2-Way Radios.

Whether you are hiking, biking or just running around town you can keep track of all members in your party wirelessly using the RINO 650 Two-Way FRS/GMRS GPS Radio from Garmin. These two-way radios feature Global Positioning System technology built-in to transmit your position to other RINO units using the General Mobile Radio Service frequencies keeping you visible to friends and family even if you can't see each other. This unit features 30 channels of FRS and GMRS frequencies including 8 GMRS repeater channels which are easily selected using the 2.6" sunlight-readable touchscreen. With up to 5W of transmission power you can even communicate silently via unit to unit text messages without disturbing your surroundings. NOAA weather alerts warn you of impending storm systems and other weather related issues.

This unit utilizes both GPS and GLONASS satellites for quicker signal acquisition so you get a fix on your position approximately 20 times faster than GPS alone. The receiver also can interpret Wide Area Augmentation System (WAAS) signals so you can receive information from terrestrial antennas even when your view of the sky is obstructed. The WAAS system also provides greater position accuracy overall. Adding to the GPS technologies, this device also features HotFix satellite prediction which uses an algorithm to mimic the movement of the Earth. This technology allows the receiver to quickly regain satellite connection after a couple days of non-use eliminating long initialization times. A worldwide basemap is stored on the unit's internal memory so you will always have an idea of where you are.

The unit's built-in 3-axis tilt-compensated electronic compass shows your heading even while standing still, no matter how it is positioned. It also houses a barometric altimeter which tracks changes in pressure to pinpoint your precise altitude so you will know your distance from sea level. The altimeter also lets you plot barometric pressure over time which can help you keep an eye on changing weather conditions.

You can wirelessly share your data and images using the built-in ANT+ connectivity. Exchange photos, geocaches, adventures, routes and custom maps between Rino devices. Store up to 2000 waypoints on the receiver's built-in memory as well as 10,000 points and 200 saved tracks. A micro SD card slot lets you load TOPO 24K maps for hiking, Trailhead Series TOPO maps for famous trails, BlueChart g2 charts for boating, or City Navigator NT maps data for turn-by-turn routing on roads. A lithium-ion battery pack and charger are included.
If you own a Garmin 2-way radios and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Garmin RINO 650 Two-Way FRS/GMRS GPS Radio 010-00928-01 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Garmin RINO 650 Two-Way FRS/GMRS GPS Radio 010-00928-01:
Channels 1-7: FRS/GMRS
8-14: FRS only
15-22: GMRS only
15R-22R: GMRS repeater channels
Channels 1-7 & 15-22: High Power, FCC License Required
Channels 1-7 & 8-14: Low Power, License-Free
Frequency Band 462.550 - 467.7125 MHz
Privacy Codes 38 analog / CTCSS, 83 digital / DCS
Weather Alert Specific Area Message Encoding Alerts
VOX 10 Levels
Antenna Type Quad Helix
Output Power Transmitter: 0.5 W on Low, 5.0 W on High
Certifications FCC Certification, Part 95
Compliance FCC RF Exposure Guidelines: 47 CFR Part 2 Sub-Part J
ANSI/IEEE C95. 1-1992, IEEE C95. 1-1999
RoHS
TIA/EIA-603-B for Suppression of False Signals
Display Size 1.43 x 2.15" (3.6 x 5.5 cm)
Display Size (Diagonal) 2.6" (6.6 cm)
Display Resolution 160 x 240 pixels
Display Type Transflective Color TFT Touchscreen
Runtime 14 h (up to 18 h with Optional AA Battery Pack)
Stored Waypoints 2000
Track Log 10000 Points, 200 Saved Tracks
Altimeter Yes, Barometric
Compass Yes, Tilt-Compensated 3-axis
Memory 1.7 GB
Memory Card Slot 1 x Micro SD
Cable Port Mini USB
File Types Supported Basecamp
Homeport
GPX
GPI Custom POI Files
Waterproofing IPX7, Temporary Immersion
Operating Temperature -4 to 140° F / -20 to 60° C
Battery Rechargeable Lithium-Ion Battery Pack or Optional 4 x AA Adapter
Connectivity ANT+ for Use with Wireless Accessories
NMEA 0183 Compatible
1/8" Headset Jack
Dimension 2.4 x 7.5 x 1.8" (6 x 19 x 4.5 cm)
Weight 11.3 oz (320 g) with Battery Pack
Packaging Info
Package Weight 1.55 lb
Box Dimensions (LxWxH) 8.2 x 5.7 x 2.9"
The user manual for the Garmin RINO 650 Two-Way FRS/GMRS GPS Radio 010-00928-01 can be downloaded in .pdf format if it did not come with your new 2-way radios, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Garmin users keep a unique electronic library for Garmin 2-way radioss, where you can use our link to download the user manual for the Garmin RINO 650 Two-Way FRS/GMRS GPS Radio 010-00928-01.

The user manual lists all of the functions of the Garmin RINO 650 Two-Way FRS/GMRS GPS Radio 010-00928-01, all the basic and advanced features and tells you how to use the 2-way radios. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Garmin service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Garmin RINO 650 Two-Way FRS/GMRS GPS Radio 010-00928-01. User manuals are also available on the Garmin website under Pro Audio - Location Sound - 2-Way Radios.
