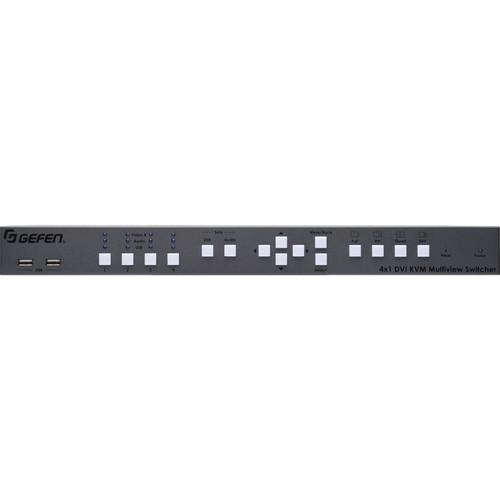

The EXT-DVIK-MV-41 4x1 DVI KVM Multiview Switcher from Gefen is designed for controlling four computers from a dual monitor workstation. The operator can observe up to 4 pictures on one screen, while a second monitor can be switched to display the picture that needs closer attention.
This product is HDCP compliant, supporting input and output resolutions up to 1920 x 1200 (WUXGA) and 1080p Full HD. The two front panel USB ports and/or bi-directional audio (mic and headphones/speaker) can be independently routed from any of the four computers to the workstation.
Four default factory presets provide most commonly used arrangements of windows on a display, including single window output, picture-in-picture, quad view, and picture-and-picture. The 4x1 DVI KVM Multiview Switcher is controllable via front panel, keyboard/mouse, and RS-232. An intuitive on-screen graphical user interface simplifies system configuration and operation. Up to 8 DVI KVM switchers can be daisy-chained together to create an elaborate 32 computer workstation. This product is field firmware upgradable with the Gefen Syner-G software suite.
If you own a Gefen kvm switches and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Gefen EXT-DVIK-MV-41 4x1 DVI KVM Multiview EXT-DVIK-MV-41 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Gefen EXT-DVIK-MV-41 4x1 DVI KVM Multiview EXT-DVIK-MV-41:
Specifications
Pixel Clock Frequency
Maximum Pixel Clock: 165 MHz
TMDS Clock Frequency
Maximum TMDS Clock: 225 MHz
Video Input Connectors
4 x DVI-I, 29-pin, female (digital only)
Video Output Connectors
2 x DVI-I, 29-pin, female (digital only)
USB Connectors
Front Panel: 2 x Type A, 5 V DC at 1 A maximum shared current Rear Panel: 2 x Type A, 5 V DC at 1 A maximum shared current Rear Panel: 4 x Type B
Microphone Input
1 x 3.5 mm mini-mono jack
Microphone Output
4 x 3.5 mm mini-mono jacks
Audio Input / Output
L/R Audio Inputs: 4 x 3.5 mm mini-stereo jacks L/R Audio Output: 1 x 3.5 mm mini-stereo jack
Power Switch
Main Power Switch: 1 x toggle, on back panel
Ground Contact
1 x Machine screw, on back panel
Front Panel Controls
10 x tact-type, blue backlight 6 x tact-type
Power Indicators
1 x LED, blue
Video B Indicators
4 x LEDs, blue
Audio Indicators
4 x LEDs, blue
USB Indicators
4 x LEDs, blue
Power Supply Connector
1 x 3-pin, locking
Power Supply
12 V DC
Power Consumption
40 W maximum
Operating Temperature
32 to 122°F / 0 to 50°C
Operating Humidity
5 to 90% RH, non-condensing
Storage Temperature
-4 to 185°F / -20 to 85°C
Storage Humidity
0 to 95% RH, non-condensing
MTBF
50,000 hours
Dimensions
17.2 x 1.2 x 7.9" / 437 x 30 x 200 mm
Weight
3.7 lb / 1.6 kg
