User manual for the Gemini UHF-4200M: Dual 100-Channel UHF Wireless System UHF-4200M
The user manual for the Gemini UHF-4200M: Dual 100-Channel UHF Wireless System UHF-4200M provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Systems.

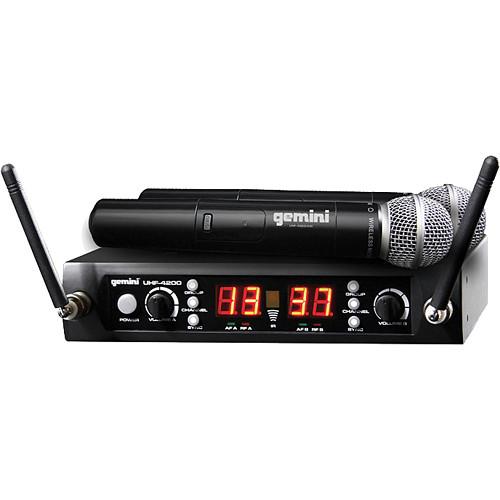

The Gemini UHF-4200M: Dual 100-Channel UHF Wireless System is designed for live sound reinforcement applications such as for concerts, DJs, lectures, karaoke, and houses of worship. The system consists of a dual-channel UHF wireless receiver and two UHF wireless transmitter microphones. The system allows you to transmit on 100 different UHF transmission channels and has a range of 250'. You can set your transmission frequency manually or let the system do it automatically.
To prevent phasing problems, the system utilizes a specialized phase locked loop circuit. The front panel of the receiver features rotary volume controls, buttons for group selection, channel selection, transmitter sync, and LED indicators for transmission channel, RF, and AF signal strength. The back of the unit features balanced XLR and unbalanced 1/4" outputs to make it easy to connect to different mixers and signal processors.
This system comes included with two handheld microphone transmitters. Up to eight microphones can be connected within the transmission frequency band using multiple receivers. Each handheld microphone transmitter is designed with high sensitivity unidirectional cardioid capsule and noise absorbing components in the microphone barrel to eliminate handling noise and the shock of flipping the power switch. Each includes a power on/mute button and will run for up to 8 hours on two AA batteries.
|
If you own a Gemini wireless systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Gemini UHF-4200M: Dual 100-Channel UHF Wireless System UHF-4200M in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Gemini UHF-4200M: Dual 100-Channel UHF Wireless System UHF-4200M:
| Frequency Range | USA: 682 to 698 MHz
Europe: 854 to 865 MHz | | Transmission Range | 250' (76.2 m) | | Receiving System | PLL synthesized | | Frequency Stability | ± 0.005% | | Frequency Response | 50 to 15,000 Hz ±3 dB | | Signal-to-Noise Ratio | 90 dB | | Modulation Mode | FM | | IF Frequency | 80.5 MHz | | THD | 1% at 1,000 Hz | | Sensitivity | 10 dBuV (FM: 40 kHz, S/N > 85 dB) | | Power Supply | 12 VDC | | Audio Output | Balanced XLR
Unbalanced 1/4" | | Dimensions (HxDxL) | 1.8 x 5.43 x 8.27" (45 x 138 x 210 mm) | | Weight | Not specified by the manufacturer | | RF Power Output | < 10 dBm | | Oscillation Mode | PLL Synthesized | | Spurious Emission | > 50 dB below carrier frequency | | Modulation | ± 60,000 Hz | | Current Consumption | 100 mA | | Battery Type | 2 x AA Alkaline | | Battery Life | 8 Hours | | Microphone Element | Unidirectional Dynamic Microphone | | Polar Pattern | Cardioid | | Dimensions (Diam. x L) | 1.5 x 9.84" (38 x 250 mm) | | Weight | Not specified by the manufacturer | | Package Weight | 4.45 lb | | Box Dimensions (LxWxH) | 15.5 x 12.1 x 4.1" | |
