User manual for the Golden Age Project Comp-54 Vintage Style Compressor COMP54 MK2

The user manual for the Golden Age Project Comp-54 Vintage Style Compressor COMP54 MK2 provides necessary instructions for the proper use of the product Pro Audio - Recording - Dynamics Processors.

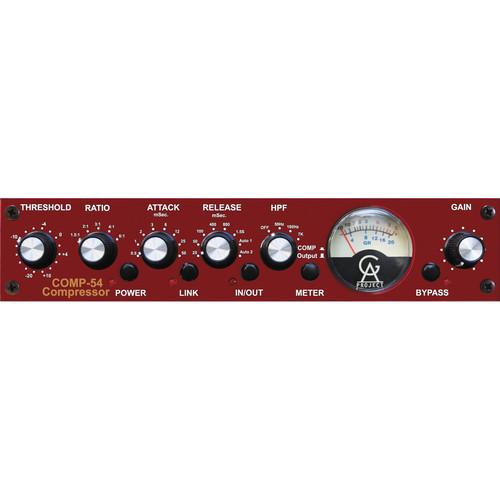

The Golden Age Project Comp-54 Vintage Style Compressor is a Class A diode bridge circuit, built in the style of a Neve 2254. It incorporates all the warmth and coloration of a vintage dynamics processer with a few modern amenities.

The Comp-54 offers very tweakable controls. The threshold has a wide gain range, allowing you to find the ideal slope at all signal levels. The 5-position ratio selector starts at 1.5:1 soft knee compression and increases up to 6:1 limiting. The onboard VU meter can monitor the compressor's gain reduction as well as the overall output volume.

The Comp-54 has a fast attack, ranging from 0.5 to 50mS. The release can be set as fast as 25mS, but allows lengths up to 1.5 seconds. Two auto-release modes are also selectable for program-responsive behavior. A makeup gain stage is included at the end of the signal chain to add an extra boost where needed.

The signal path of the Comp-54 also includes a bypassable sidechain high pass filter, which makes the compressor ignore frequencies below 50Hz, 100Hz, or 7kHz. With the 7kHz sidechain high pass filter engaged, the Comp-54 will act as a de-esser.

The Comp-54 Vintage Style Compressor has all the tone and coloration that older designs are revered for, with added versatility found in today's signal processors.
If you own a Golden Age Project dynamics processors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Golden Age Project Comp-54 Vintage Style Compressor COMP54 MK2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Golden Age Project Comp-54 Vintage Style Compressor COMP54 MK2:
Specifications
    Inputs/Outputs
    Inputs Balanced XLR x1
    Balanced 1/4" TRS x1
    Nominal Operating Level +4 dBu
    Maximum Input Level +26 dBu
    Maximum Output Level +26 dBu with 600 ohm load
    Output Impedance 600 Ohm; Selectable 600 ohm termination
    Outputs Balanced XLR x1
    Balanced 1/4" TRS x1
    Compressor
    Threshold -20 to +10 dB
    Attack Time 0.5 - 50 mS
    Release Time 25 mS - 1.5 seconds; two auto-release settings
    Make-up Gain 0 - 20 dB
    Sidechain HPF @ 50 Hz, 100 Hz, or 7 kHz.
    Bypass Compressor bypass and true bypass
    Link Connector 1/4" stereo-link bus
    VU Meter Switchable: output level or gain reduction
    Performance
    Frequency Response +/- 0.5 dB, 20 Hz - 33 kHz relative to 1kHz, measured at +4 dBu
    Noise - 75 dBu @ unity gain and no compression, input and output terminated with 600 ohm
    THD 0.012% @ 1 kHz, +4 dBu in and out, 600 ohm load, no compression
    General
    Power 24 VAC external power supply
    Dimensions (W x H x D) 8.5 x 1.75 x 11" (21.6 x 4.4 x 27.9 cm)
    Weight 7.6 lbs (3.45 kg) shipping weight
    Packaging Info
    Package Weight 8.05 lb
    Box Dimensions (LxWxH) 14.3 x 12.8 x 3.8"
    Product Tutorial
    The user manual for the Golden Age Project Comp-54 Vintage Style Compressor COMP54 MK2 can be downloaded in .pdf format if it did not come with your new dynamics processors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Golden Age Project users keep a unique electronic library for Golden Age Project dynamics processorss, where you can use our link to download the user manual for the Golden Age Project Comp-54 Vintage Style Compressor COMP54 MK2.

    The user manual lists all of the functions of the Golden Age Project Comp-54 Vintage Style Compressor COMP54 MK2, all the basic and advanced features and tells you how to use the dynamics processors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Golden Age Project service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Golden Age Project Comp-54 Vintage Style Compressor COMP54 MK2. User manuals are also available on the Golden Age Project website under Pro Audio - Recording - Dynamics Processors.
