User manual Grace Design m802 Microphone Preamp AM802

Operating instructions and pdf manual for use - Grace Design m802 Microphone Preamp AM802 User manual, User manual Grace Design m802 Microphone Preamp AM802, Grace, Design, m802, Microphone, Preamp, AM802, Video


User manual for Grace Design m802 Microphone Preamp AM802

Grace Design  m802 Microphone Preamp AM802
  • Manufacturer: Grace Design
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Microphone Preamps
  • Safety instructions
  • Startup and operation of the microphone preamps
  • Tips for setting up your Grace Design
  • Settings and expert assistance
  • Contact Grace Design service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Grace Design m802 Microphone Preamp AM802, which address similar problems with connecting and setting up Microphone Preamps Grace Design.



User manual for the Grace Design m802 Microphone Preamp AM802

The user manual for the Grace Design m802 Microphone Preamp AM802 provides necessary instructions for the proper use of the product Pro Audio - Recording - Microphone Preamps.

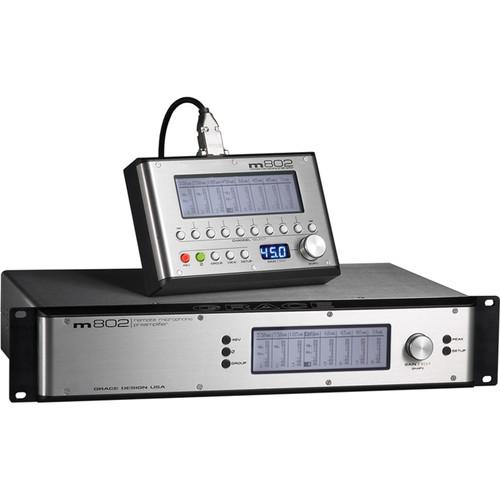

The m802 from Grace Design is an eight channel, remote controllable microphone preamplifier designed for unmatched audio performance with massive headroom and ultra-wide bandwidth. The unit can effortlessly resolve even the lowest level ambient information, resulting in a sonic picture of absolute clarity and detail, which serves to capture the essential character of the music being recorded.
If you own a Grace Design microphone preamps and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Grace Design m802 Microphone Preamp AM802 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Grace Design m802 Microphone Preamp AM802:
Number of Channels Eight
Inputs 8 x XLR
Output 8 x XLR
8 x XLR parallel outputs
Phantom Power 48V
Multi Function No
Gain Range -7dB to +63.5dB, in 1.5dB steps
Maximum Output Level +27dBu, balanced
+21dBu, unbalanced
Frequency Response 4.5Hz to 1MHz, +/-3dB @ 40.5dB gain (50Ω source)
Noise -129dB, @ 60dB gain 50Ω source
Dimensions (WxDxH) Preamplifier: 19" x 10" x 3 1/2"
Power Supply: 8 1/2" x 8 1/2" x 1 3/4"
Weight Preamplifier: 14.7 lbs
Power Supply: 6.25 lbs
Specialties Can be controlled directly from Digidesign ProTools HD systems, compatible control surfaces and many other MIDI devices

Phase reverse available on each channel

Packaging Info
Package Weight 25.5 lb
Box Dimensions (LxWxH) 26.4 x 18.5 x 11.0"
The user manual for the Grace Design m802 Microphone Preamp AM802 can be downloaded in .pdf format if it did not come with your new microphone preamps, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Grace Design users keep a unique electronic library for Grace Design microphone preampss, where you can use our link to download the user manual for the Grace Design m802 Microphone Preamp AM802.

The user manual lists all of the functions of the Grace Design m802 Microphone Preamp AM802, all the basic and advanced features and tells you how to use the microphone preamps. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Grace Design service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Grace Design m802 Microphone Preamp AM802. User manuals are also available on the Grace Design website under Pro Audio - Recording - Microphone Preamps.
