User manual for the Henry Engineering Talent Pod Microphone & Headphone TP

The user manual for the Henry Engineering Talent Pod Microphone & Headphone TP provides necessary instructions for the proper use of the product Pro Audio - In-Line Problem Solvers - Pads & Mute Switches.

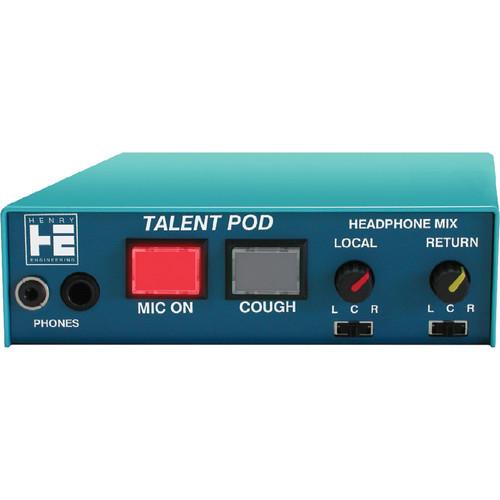

The Henry Engineering Talent Pod is a user friendly device that establishes control over microphone and headphone levels for announcers. Announcers at sporting events, news casts and other applications have the ability to mix their own microphone audio and headphone output signals without effecting broadcasts, recordings, etc. The Talent Pod may be used as a standalone device, or linked with several Talent Pods via Cat-5 cable. Power is also distributed to additional Talent Pods while linked together. Additional features include microphone pre output, local and return control and left, center and right controls.
If you own a Henry Engineering pads & mute switches and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Henry Engineering Talent Pod Microphone & Headphone TP in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Henry Engineering Talent Pod Microphone & Headphone TP:
Specifications
    Mic Input Any Lo-Z balanced microphone, female XLR
    Mic Output Same as mic input, Lo-Z, balanced, male XLR
    Gain 30-50 dB, adjustable via rear panel Gain trim
    Output Mic Pre Output: -10 dBu nom, unbal, 1K load max, 3.5mm jack
    Sends/Returns Local, Return Inputs: -10 dBu to +4 dBu, 20K bal or 10K unbal, ¼" TRS jack
    Link Links multiple units with cat5 cable, distributes Power, Local, Return audio to all units
    Mode Switch Selects split-mono or stereo headphone audio
    LOC switch: Selects Local input or Mic preamp as Local source
    Headphone Output > 24 ohms, ¼" and 3.5mm jacks provided
    Power 12VAC, 50ma per unit, provided by wall transformer or MultiPhones Master unit or SixMix USB audio console
    Enclosure Steel
    Dimensions 5.75 x 5.50 x 1.60" (14.60 x 13.97 x 4.06cm)
    Weight 3 lb (1.36kg)
    Packaging Info
    Package Weight 1.7 lb
    Box Dimensions (LxWxH) 8.7 x 6.3 x 1.9"
    The user manual for the Henry Engineering Talent Pod Microphone & Headphone TP can be downloaded in .pdf format if it did not come with your new pads & mute switches, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Henry Engineering users keep a unique electronic library for Henry Engineering pads & mute switchess, where you can use our link to download the user manual for the Henry Engineering Talent Pod Microphone & Headphone TP.

    The user manual lists all of the functions of the Henry Engineering Talent Pod Microphone & Headphone TP, all the basic and advanced features and tells you how to use the pads & mute switches. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Henry Engineering service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Henry Engineering Talent Pod Microphone & Headphone TP. User manuals are also available on the Henry Engineering website under Pro Audio - In-Line Problem Solvers - Pads & Mute Switches.
