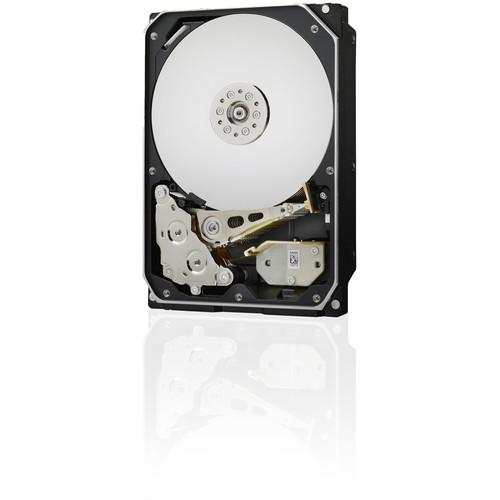

User manual HGST 8TB Ultrastar He8 3.5" Helium Platform 0F23267

Operating instructions and pdf manual for use - HGST 8TB Ultrastar He8 3.5" Helium Platform 0F23267 User manual, User manual HGST 8TB Ultrastar He8 3.5" Helium Platform 0F23267, HGST, 8TB, Ultrastar, He8, 3.5, Helium, Platform, 0F23267,


User manual for HGST 8TB Ultrastar He8 3.5" Helium Platform 0F23267

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
HGST 8TB Ultrastar He8 3.5
  • Manufacturer: HGST
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - Internal Drives
  • Safety instructions
  • Startup and operation of the internal drives
  • Tips for setting up your HGST
  • Settings and expert assistance
  • Contact HGST service
  • Troubleshooting
  • Warranty information
  • Price: 589 USD
We recommend checking out our discussion threads on the HGST 8TB Ultrastar He8 3.5" Helium Platform 0F23267, which address similar problems with connecting and setting up Internal Drives HGST.



User manual for the HGST 8TB Ultrastar He8 3.5" Helium Platform 0F23267

The user manual for the HGST 8TB Ultrastar He8 3.5" Helium Platform 0F23267 provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Internal Drives.

Store and access up to 8TB of your files when installed in a desktop computer, data center, storage array, or backup environment with the 8TB Ultrastar He8 3.5" Helium Platform Enterprise Hard Drive from HGST. 8TB will allow you to store movies, photos, music, documents, and much more. Compatible with systems running Windows, Mac OS, and Linux, this hard drive connects to your system's 3.5" bay via the SATA 6 GB/s interface. Through the SATA 6 Gb/s interface, the system also features internal data transfer speeds up to 600 MB/s and sustained data transfer rates up to 205 MB/s. This drive operates at 7200 rpm and the 128MB cache helps ensure uninterrupted data transfers.

Designed with Enterprise-use in mind, this drive may be used in 24x7 always-on operating environments. This Ultrastar drive contains several features to help ensure a strong operating life including the ability to withstand temperatures up to 158°F, 2.5 million hours MTBF, and 600,000 load/unload cycles.

This 8TB Ultrastar He8 drive is filled with helium instead of regular air. As helium is lighter than air, this helps reduce vibration, power consumption, noise levels, temperature, and weight, while also increasing drive capacity by up to 50% over the previous generation.
If you own a HGST internal drives and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the HGST 8TB Ultrastar He8 3.5" Helium Platform 0F23267 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the HGST 8TB Ultrastar He8 3.5" Helium Platform 0F23267:
Specifications
Capacity 8 TB
Interface SATA 6 Gb/s
Sector Size (variable, Bytes/sector) 4Kn: 4096, 512e: 512
Max Areal Density 664 Gbits/in2
Form Factor 3.5"
Performance
Data Buffer 128 MB
Rotational Speed 7200 rpm
Latency Average 4.16 ms
Interface Transfer Rate (max) 600 MB/s
Sustained Transfer Rate (typical) 205 MB/s
195 Mib/s
Seek time (read, typical) 8.5 ms (read)
9.0 ms (write)
Reliability
Non-Recoverable Read Errors Per Bits Read 1 in 1015
MTBF 2.5 million hours
Annual Failure Rate 0.35%
Load/Unload Cycles 600,000
Availability (hrs/day x days/wk) 24x7
Acoustics
Idle (Bels) 2.0 (idle)
3.6 (operating)
Power
Requirements +5 V DC
+12 V DC
Startup Current (max) Not Available from Manufacture
Watts Low Power Idle (W, avg): 5.1
Operating (W, typical): 7.4
Power Consumption Efficiency Index (W/GB): 0.64 W/TB, 0.00064 W/GB
Environmental (operating)
Ambient Temperature 41 to 140°F / 5 to 60°C
Shock (half-sine wave) 70
Vibration (5 to 500 Hz) 0.67 (XYZ)
Environmental (non-operating)
Ambient Temperature -40 to 158°F / -40 to 70°C
Shock (half-sine wave) 300
Vibration (5 to 500 Hz) 1.04(XYZ)
Physical Size
Dimensions 1.0 x 4.0 x 5.8" / 26.1 x 101.6 x 147.0 mm
Weight 22.9 oz / 650.0 g
Packaging Info
Package Weight 1.65 lb
Box Dimensions (LxWxH) 9.2 x 7.3 x 4.1"
The user manual for the HGST 8TB Ultrastar He8 3.5" Helium Platform 0F23267 can be downloaded in .pdf format if it did not come with your new internal drives, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other HGST users keep a unique electronic library for HGST internal drivess, where you can use our link to download the user manual for the HGST 8TB Ultrastar He8 3.5" Helium Platform 0F23267.

The user manual lists all of the functions of the HGST 8TB Ultrastar He8 3.5" Helium Platform 0F23267, all the basic and advanced features and tells you how to use the internal drives. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from HGST service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the HGST 8TB Ultrastar He8 3.5" Helium Platform 0F23267. User manuals are also available on the HGST website under Computers & Solutions - Drives & Storage - Internal Drives.
