User manual Hikvision 1.3MP IR Indoor/Outdoor Mini Dome Camera with 2.8mm

Operating instructions and pdf manual for use - Hikvision 1.3MP IR Indoor/Outdoor Mini Dome Camera with 2.8mm User manual, User manual Hikvision 1.3MP IR Indoor/Outdoor Mini Dome Camera with 2.8mm, Hikvision, 1.3MP, IR, Indoor/Outdoor, Mini, Dome,


User manual for Hikvision 1.3MP IR Indoor/Outdoor Mini Dome Camera with 2.8mm

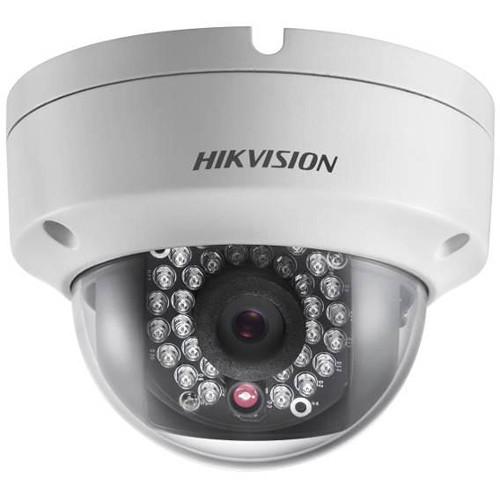

Hikvision 1.3MP IR Indoor/Outdoor Mini Dome Camera with 2.8mm
  • Manufacturer: Hikvision
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your Hikvision
  • Settings and expert assistance
  • Contact Hikvision service
  • Troubleshooting
  • Warranty information
  • Price: 454 USD
We recommend checking out our discussion threads on the Hikvision 1.3MP IR Indoor/Outdoor Mini Dome Camera with 2.8mm, which address similar problems with connecting and setting up Wired IP Cameras Hikvision.



User manual for the Hikvision 1.3MP IR Indoor/Outdoor Mini Dome Camera with 2.8mm

The user manual for the Hikvision 1.3MP IR Indoor/Outdoor Mini Dome Camera with 2.8mm provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

This B&H Kit consists of 4 Hikvision 1.3MP IR Indoor/Outdoor Mini Dome Cameras which use 1/3" progressive scan CMOS sensor to capture images at up to a 1280 x 960 resolution. The cameras' DSP offer DNR, digital WDR, and BLC functions. Thanks to the built-in IR cut filters with auto-switch function and IR LEDs, the cameras can capture clear images in almost complete darkness. Each camera features integrated IR LEDs which provide illumination up to 100' from the camera. The built-in microSD/SDHC/SDXC card slots allow for local storage of images and video footage.
If you own a Hikvision wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Hikvision 1.3MP IR Indoor/Outdoor Mini Dome Camera with 2.8mm in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Hikvision 1.3MP IR Indoor/Outdoor Mini Dome Camera with 2.8mm:
Specifications
  • 4 x Hikvision 1.3MP IR Indoor/Outdoor Mini Dome Camera with 2.8mm Fixed Lens
    Camera
    Sensor 1/3" progressive scan CMOS
    Minimum Illumination 0.01 lux @ f/1.2, AGC on; 0 lux with IR
    0.028 lux @ f/2.0, AGC on; 0 lux with IR
    Shutter Speed 1/3 to 1/100,000 sec
    Lens 2.8mm fixed
    Aperture f/2.0
    Angle of View 92.5°
    Lens Mount M12
    Day/Night IR cut filter with auto-switch
    DNR 3D
    Digital Wide Dynamic (D-WDR) Yes
    Angle Adjustment Pan: 0 to 355°
    Tilt: 0 to 75°
    Rotation: 0 to 355°
    IR Range Up to 100' (30 m)
    Video
    Compression H.264 (Main profile) / MJPEG
    Bit Rate 32 kbps to 12 Mbps
    Dual Streaming Yes
    Maximum Resolution 1280 x 960
    Frame Rate 50 Hz: 25 fps @ 1280 x 960, 25 fps @ 1280 x 720
    60 Hz: 30 fps @ 1280 x 960 and 1280 x 720
    Image Settings Rotate mode, saturation, brightness, contrast adjustable by client software or Web browser
    Backlight Compensation Yes, configurable zone
    Region of Interest Yes
    Network
    Communication 1 x RJ45 10/100 Mbps Ethernet
    Storage Local storage: Built-in microSD/SDHC/SDXC card slot, up to 64 GB (card not included)
    NAS (supports NFS, SMB/CIFS)
    Protocol Support TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour
    Other Functions One-key reset, flash prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, anonymous access
    Standard ONVIF, PSIA, CGI, ISAPI
    General
    Operating Temperature -22 to 140°F (-30 to 60°C)
    Operating Humidity ≤95% non-condensing
    Power Supply 12 VDC ±10%, PoE (802.3af)
    Power Consumption 5 W maximum (7 W with IR-cut filter on)
    Ingress Protection Rating IP66
    Impact Protection EC60068-2-75Eh, 20J; EN50102, up to IK10
    Dimensions (Ø x H) 4.4 x 3.2" (11.1 x 8.2 cm)
    Weight 1.1 lb (0.5 kg)
    Packaging Info
    Box Dimensions (LxWxH) 5.354 x 5.276 x 4.488"
The user manual for the Hikvision 1.3MP IR Indoor/Outdoor Mini Dome Camera with 2.8mm can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Hikvision users keep a unique electronic library for Hikvision wired ip camerass, where you can use our link to download the user manual for the Hikvision 1.3MP IR Indoor/Outdoor Mini Dome Camera with 2.8mm.

The user manual lists all of the functions of the Hikvision 1.3MP IR Indoor/Outdoor Mini Dome Camera with 2.8mm, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Hikvision service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Hikvision 1.3MP IR Indoor/Outdoor Mini Dome Camera with 2.8mm. User manuals are also available on the Hikvision website under Surveillance - Surveillance Video - Wired IP Cameras.
