User manual for the Honeywell HVE1 1-Channel H.264 Video/Audio Encoder HVE1

The user manual for the Honeywell HVE1 1-Channel H.264 Video/Audio Encoder HVE1 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Video Transmission - Video Encoders & Decoders.

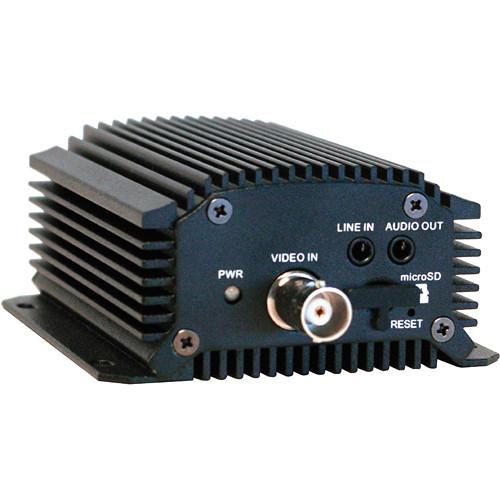

The HVE1 1-Channel H.264 Video/Audio Encoder from Honeywell allows you to connect an analog camera into an IP network. This encoder supports H.264, MPEG4, MPEG2, and MJPEG video compression formats for reduced bandwidth and storage requirements. It is capable of encoding up to 30 fps at 4CIF resolution, with the capability of dual streaming. This encoder can also record audio and features an audio output to perform bidirectional audio communication.

The encoder can control PTZ cameras through the RS-485 port and supports third party PTZ protocols. Alarm inputs and relay outputs are available to trigger events on an NVR and to control external devices. These alarms and events can be reported to the NVR, and can also be sent either by email or by FTP uploads directly from the encoder along with a captured JPEG image.

The 1-channel encoder supports local storage via a microSD card (not included) for storing of alarm-triggered, continuous, and scheduled recorded footage. Recorded or live video can be viewed remotely through an intuitive web browser (IE, Firefox, Chrome, or Safari) that supports HTTPS to ensure high security.
If you own a Honeywell video encoders & decoders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Honeywell HVE1 1-Channel H.264 Video/Audio Encoder HVE1 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Honeywell HVE1 1-Channel H.264 Video/Audio Encoder HVE1:
Operational
Video Compression H.264, MPEG4, MPEG2, MJPEG
Video Input 1-channel
Audio Compression G.711u
Audio Input 1-channel
2-Way Audio 1-channel
Audio Output 1-channel
Recording Resolution 4CIF, 2CIF, CIF, QCIF
Frame Rate H.264, MPEG4, MPEG2 Encoding: 25 fps (P) / 30 fps (N)
Video Bit Rate 32 to 3072 kb/s, or user defined (maximum 8192 Mb/s)
Audio Bit Rate 64 kb/s
Dual Streaming Supported
Stream Type Video/Video + Audio
Data Storage Type: NAS, microSD
Capacity: 4 GB up to 32 GB, Class 6 and above microS
Network Protocols IPv4/v6, HTTP, HTTPS, QoS layer3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP/RTCP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SOCKSv4/v5, PSIA, ONVIF, HIKCGI, netFilter, HVE
Electrical
Power Supply 12 VDC, PoE
Power Consumption ≤ 8 W
Connectors
Power Screw terminal block
Video Input BNC (1.0 Vpp, 75 Ω)
Audio Input 3.5 mm interface (2.0 Vpp, 1 kΩ) (Line Input)
Audio Output 3.5 mm interface (Linear, 600 Ω)
2-Way Audio 3.5 mm interface (2.0 Vpp, 1 kΩ) (Line Input)
Network Interface 1 x RJ-45 10 M/100 Mb/s adaptive Ethernet interface (PoE)
Serial Interface 1 x Half-duplex RS-485 interface spring terminal block (20 to 28 AWG)
Alarm Input 1 x Spring terminal block (20 to 28 AWG)
Alarm Output 1 x Spring terminal block (20 to 28 AWG)
Data Storage 1 x microSD interface

Available Separately

Environmental
Compatible with MAXPRO NVR 2.5 SP1 and greater
Operating Temperature 14 to 131°F (-10 to 55°C)
Storage Temperature -4 to 149°F (-20 to 65°C)
Relative Humidity 10 to 90%, non-condensing
Regulatory
Emissions FCC, EN 55022
Immunity EN 50130-4
Safety EN 60950-1
North America UL listed to UL/CSA 60950-1
Mechanical
Construction Die-cast aluminum
Dimensions (W x H x D) 3.1 x 1.5 x 3.5" (78.7 x 38.1 x 88.9 mm)
Weight ≤ 1.1 lb (≤ 0.4 kg)
The user manual for the Honeywell HVE1 1-Channel H.264 Video/Audio Encoder HVE1 can be downloaded in .pdf format if it did not come with your new video encoders & decoders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Honeywell users keep a unique electronic library for Honeywell video encoders & decoderss, where you can use our link to download the user manual for the Honeywell HVE1 1-Channel H.264 Video/Audio Encoder HVE1.

The user manual lists all of the functions of the Honeywell HVE1 1-Channel H.264 Video/Audio Encoder HVE1, all the basic and advanced features and tells you how to use the video encoders & decoders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Honeywell service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Honeywell HVE1 1-Channel H.264 Video/Audio Encoder HVE1. User manuals are also available on the Honeywell website under Surveillance - Surveillance Video - Video Transmission - Video Encoders & Decoders.
