User manual for the Honeywell Voyager 1250g Handheld Linear Barcode Scanner 1250G-2
The user manual for the Honeywell Voyager 1250g Handheld Linear Barcode Scanner 1250G-2 provides
necessary instructions for the proper use of the product Photography - Scanners - Barcode Scanners.

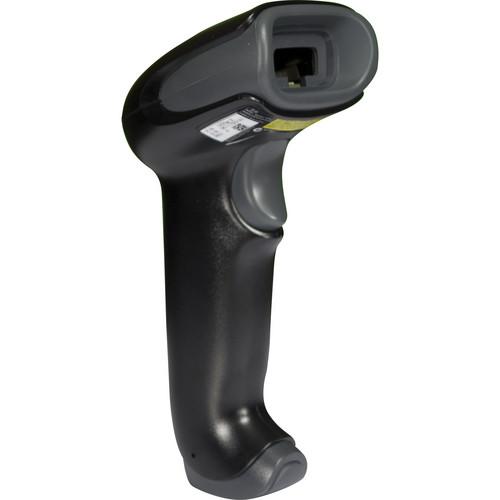

The black Voyager 1250g Handheld Linear Barcode Scanner from Honeywell features a lightweight, ergonomic design that is drop-resistant up to 4.9 feet. The scanner's design takes the guesswork out of proper positioning and angling. Thanks to its wide angle of coverage (side-to-side, up and down, and tilt), it's easy to learn how to use and will shorten the lines at the register or speed up any other job. Additionally, you can seamlessly switch between hands-free and handheld modes thanks to automatic in-stand detection. The scanner is compatible with many barcode formats including UPC, EAN, Code 39, Code 128, Code 93, MSI, Code 11, and IATA codes. The scanner features USB, keyboard wedge, and RS232 interfaces; cables are not included.
|
If you own a Honeywell barcode scanners and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Honeywell Voyager 1250g Handheld Linear Barcode Scanner 1250G-2 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Honeywell Voyager 1250g Handheld Linear Barcode Scanner 1250G-2:
| Scanner Type | Single line | | Scan Rate | 100 lines per second | | Working Distance | 5.0 mil: 2.2 to 5.5" (57 to 139 mm)
7.5 mil: 1.1 to 9.7" (28 to 245 mm)
10.4 mil: 0.4 to 14.5" (9.0 to 369 mm)
13 mil: 0 to 17.6" (0 to 446 mm) | | Print Contrast | 20% minimum reflectance difference | | Angle | 30° horizontal | | Pitch | 60° | | Skew | 60° | | Bar-Code Types | Standard 1D and GS1 DataBar symbologies including:
Codabar, Code 11, Code 128, Code 32 Pharmaceutical, Code 39, Code 93, EAN, GS1, 2 of 5, IATA, MSI, Telepen, UPC | | Interfaces Supported | RS232: TTL +5V, 4 Signals
Keyboard Wedge
USB: HID Keyboard, Serial, IBM OEM
RS-232C (±12 V)
IBM RS485 supported via adapter cable | | Lux | 0 to 75,000 | | Drop Resistance | Withstands 30 drops to concrete from 59" (1.5 m) | | Electrostatic Discharge | Air: 15 kV
Contact: 8.0 kV | | Power Requirements | 5.0 V ±5.0% | | Power | Operating: 700 mW (140 mA) @ 5.0 V
Standby: 425 mW (85 mA) @ 5.0 V | | Certifications | IP41 environmental sealing | | Temperature / Humidity | Operating Temperature: 32 to 104°F (0 to 40°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Humidity: 0 to 95% | | Dimensions | 6.6 x 2.9 x 2.3" (168 x 74 x 60 mm) | | Weight | 4.7 oz (133 g) | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 6.9 x 3.4 x 2.3" | |
The user manual for the Honeywell Voyager 1250g Handheld Linear Barcode Scanner 1250G-2 can be downloaded in .pdf
format if it did not come with your new barcode scanners, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Honeywell users keep a unique electronic library
for Honeywell barcode scannerss,
where you can use our link to download the user manual for the Honeywell Voyager 1250g Handheld Linear Barcode Scanner 1250G-2.
The user manual lists all of the functions of the Honeywell Voyager 1250g Handheld Linear Barcode Scanner 1250G-2,
all the basic and advanced features and tells you how to use the barcode scanners.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Honeywell service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Honeywell Voyager 1250g Handheld Linear Barcode Scanner 1250G-2. User manuals are also
available on the Honeywell website under Photography - Scanners - Barcode Scanners.
