User manual for the Honeywell Xenon 1900 High Density Area-Imaging 1900GHD-2USB
The user manual for the Honeywell Xenon 1900 High Density Area-Imaging 1900GHD-2USB provides
necessary instructions for the proper use of the product Photography - Scanners - Barcode Scanners.

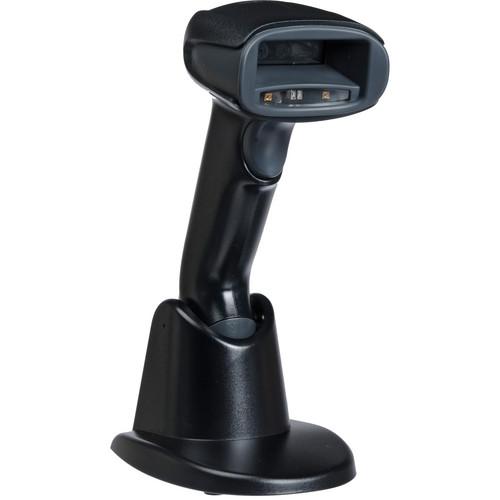

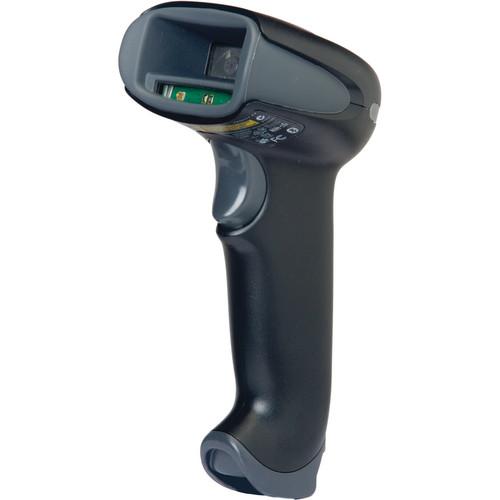

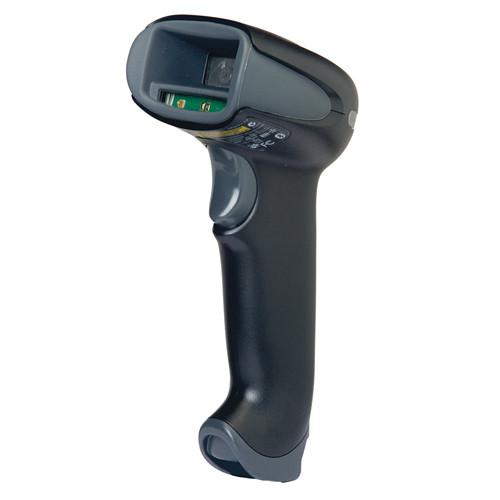

Using area-imaging technology and a grayscale sensor with a 838 x 640 resolution, the black Xenon 1900 High Density Area-Imaging Scanner from Honeywell/Sperian will provide reliable scanning for 1D, 2D, PDF, Postal, and OCR symbologies. With a field of view of 41.4° horizontally and 32.2° vertically it has a wide viewing area for reading and it uses Adaptus Imaging Technology 6.0 to deliver fast bar code scanning and digital image capture. Also, this version comes with a 9.8' USB cable for connection to a computer.
For portability and efficiency, Xenon 1900 works in a variety of areas and has a construction to match. To start, it works in light levels from 0 to 9,290 fc and is IP41-rated for sealing. Also, it uses a solid state design and solid construction to withstand multiple 6' drops to concrete. Adding to the versatility are USB, keyboard wedge, RS232 and RS485 connectivity options as well as the ability to work with Remote MasterMind Scanner Management software.
If you own a Honeywell barcode scanners and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Honeywell Xenon 1900 High Density Area-Imaging 1900GHD-2USB in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Honeywell Xenon 1900 High Density Area-Imaging 1900GHD-2USB:
Specifications
Sensor Resolution
838 x 640 grayscale
Field of View
Horizontal: 41.4° Vertical: 32.2°
Motion Tolerances
Up to 240 in/sec (610 cm/sec) for 13 mil UPC at optimal focus
Pitch
45°
Skew
65°
Print Contrast
20% minimum reflectance difference
Supported Symbologies
1D, PDF, 2D, Postal, and OCR
Image File Formats
BMP, TIFF, JPG
Interfaces
USB Keyboard wedge RS232 RS485
Sealing
IP41
Drop Resistance
Withstands multiple 6' (1.8 m) drops to concrete
Ambient Light Immunity
Total darkness to 9,290 fc (100,000 lux)
Power Requirements
4-5.5 VDC
Power Consumption
Operating: 2.3 W (450 mA at 5 VDC) Standby: 0.45 W (90 mA at 5 VDC)
Operating Conditions
Temperature: 32 to 122°F (0 to 50°C) Humidity: 0 to 95%, relative non-condensing
Storage Conditions
Temperature: -40 to 158°F (-40 to 70°C) Humidity: 0 to 95%, relative non-condensing
