User manual for the HP t410 All-in-One Smart Zero Client (ENERGY STAR) H2W21AT#ABA
The user manual for the HP t410 All-in-One Smart Zero Client (ENERGY STAR) H2W21AT#ABA provides
necessary instructions for the proper use of the product Computers & Solutions - Desktops & Workstations - Terminal & Thin Clients.

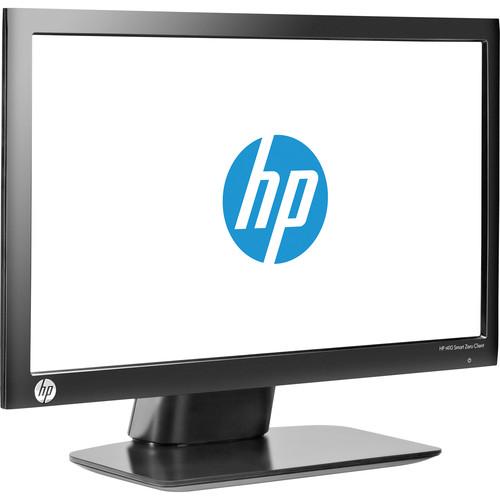

The t410 All-in-One Smart Zero Client (ENERGY STAR) from HP provides users with an all-in-one experience that features PC-like performance, enhanced security, and client virtualization. Designed to help businesses create simplified client virtualization desktops, the t410 is powered by a 1 GHz Texas Instruments TMS320DM8148 ARM Cortex-A8 and contains 1GB of 400 MHz DDR3 ECC SDRAM to help ensure uninterrupted performance and smooth multitasking.
For long term storage of your files, 2GB of flash storage offers quick access to your data. While flash storage may not have the large capacity of a traditional hard drive, it contains no moving parts and is more resistant to damage from bumps and drops. Flash storage also receives less wear and tear as it does not come into contact with read and write reads.
For those who wish to expand their t410, the system features 4 x USB 2.0 ports, two of which will be used by the keyboard and mouse. The integrated 18.5" WLED-backlit display features 32-bit color, a 1366 x 768 resolution, and a 16:9 aspect ratio. The display uses HP BrilliantView technology and is designed to deliver a sharp, clear picture. For connecting to the Internet, this all-in-one includes an integrated Gigabit Ethernet controller. However, please bear in mind that if this system is being powered via Power-over-Ethernet (PoE), the network speed will operate at 10/100 Mbps. Additionally, the use of PoE will not allow USB devices over 100mA to funciton.
The HP t410 Flexible Thin Client uses a 24W power supply that runs on 100-240VAC at 50-60 Hz and is ENERGY STAR qualified and EPEAT Gold registered. Included is a USB keyboard, a USB mouse, and the installed operating system is HP Smart Zero Core.
|
If you own a HP terminal & thin clients and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the HP t410 All-in-One Smart Zero Client (ENERGY STAR) H2W21AT#ABA in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the HP t410 All-in-One Smart Zero Client (ENERGY STAR) H2W21AT#ABA:
| Operating System | HP Smart Zero Technology | | Processor | 1 GHz Texas Instruments TMS320DM8148 ARM Cortex-A8 (Single-Core) | | Cache | 256 KB L2 cache | | Display | Integrated 18.5" / 47.0 cm diagonal WLED backlit display with HP BrilliantView Technology
Maximum resolution:1366 x 768 | | Supported Browsers | Mozilla Firefox 15 | | Memory | 1 GB 400 MHz DDR3 SDRAM | | Flash Memory | 2 GB Flash | | Protocols | Citrix ICA; Citrix HDX; Microsoft RemoteFX (RFX); Microsoft RDP; VMware Horizon View through PCoIP; VMware Horizon View through RDP | | Network Interface | 10/100/1000 Gigabit Ethernet (10/100 when using Power over Ethernet [PoE]) | | Additional Features | Wake on LAN (WOL), PXE, TCP/IP with DNS and DHCP, UDP | | Ports | 4 x USB 2.0
1 x RJ-45
1 x 1/8" (3.5 mm) microphone
1 x 1/8" (3.5 mm) headphone
1 x power connector
Two of the four USB 2.0 ports are used for the keyboard and mouse. When operating on PoE, only USB devices drawing 100 mA or less will function properly | | Audio | Internal stereo speaker
Audio output: 1/8" (3.5 mm) mini-jack, 16, 20, 24, or 32-bit stereo, 96 kHz sample rate
Audio input: 1/8" (3.5 mm) microphone mini-jack, 16, 20, 24, or 32-bit stereo, 96 kHz sample rate | | Energy Efficiency | ENERGY STAR qualified
EPEAT registered where applicable/supported | | Power | 24 W worldwide auto-sensing, 100-240 V AC, 50-60 Hz | | Dimensions | 17.70 x 6.26 x 13.40" / 44.96 x 15.90 x 34.04 cm (with stand) | | Weight | 8.05 lb / 3.65 kg (with stand) | |
