User manual iFamCare 1080p Day/Night Wireless Camera with 3.6mm 860321000116

Operating instructions and pdf manual for use - iFamCare 1080p Day/Night Wireless Camera with 3.6mm 860321000116 User manual, User manual iFamCare 1080p Day/Night Wireless Camera with 3.6mm 860321000116, iFamCare, 1080p, Day/Night, Wireless, Camera


User manual for iFamCare 1080p Day/Night Wireless Camera with 3.6mm 860321000116

iFamCare 1080p Day/Night Wireless Camera with 3.6mm 860321000116
  • Manufacturer: iFamCare
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wireless Cameras
  • Safety instructions
  • Startup and operation of the wireless cameras
  • Tips for setting up your iFamCare
  • Settings and expert assistance
  • Contact iFamCare service
  • Troubleshooting
  • Warranty information
  • Price: 150 USD
We recommend checking out our discussion threads on the iFamCare 1080p Day/Night Wireless Camera with 3.6mm 860321000116, which address similar problems with connecting and setting up Wireless Cameras iFamCare.



User manual for the iFamCare 1080p Day/Night Wireless Camera with 3.6mm 860321000116

The user manual for the iFamCare 1080p Day/Night Wireless Camera with 3.6mm 860321000116 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wireless Cameras.

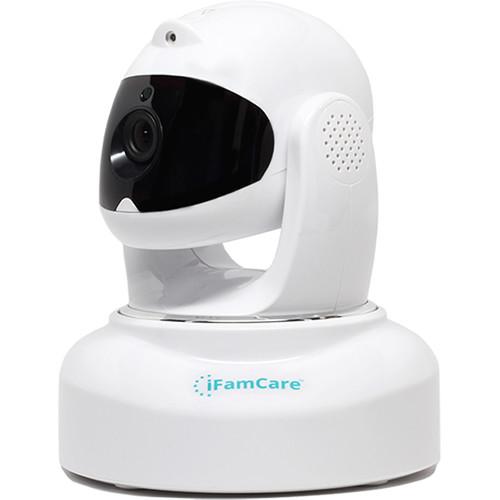

Monitor, speak to, and even remotely play with your pet using the 1080p Wireless Day/Night Camera from iFamCare. The camera features a built-in laser that you can control from your smartphone for keeping your pet entertained when you are not home. Additionally, an integrated microphone and speaker allow you to listen and speak to whoever you are monitoring. Ten IR LEDs enable 26.2' of night vision for use in dark rooms, and air-quality sensors alert you to unsafe environments.

The camera's resolution is configurable, allowing you to record in 1080p, 720p, or VGA for conserving your bandwidth when necessary. A frame rate of 30 fps ensures comprehensive recordings, and the 3.6mm fixed lens captures an inclusive field of view. On-site recording is supported via the microSD slot (microSD card available separately), and video is compressed as H.264 to economize your use of bandwidth and storage.

Connect the camera to your Wi-Fi or TCP/IP network for live viewing on your smartphone or tablet from anywhere in the world. Built-in motor control offers remote 355° horizontal panning and 110° vertical tilting. The mobile application also allows you to set up motion or sound alerts, digitally zoom within your field of view, and take still photos of the screen image. The software enables you to easily browse through video footage or store the footage to a Cloud account (subscription required). Up to four users can simultaneously access the camera, and public and private modes are available for regulating what each user has access to.
If you own a iFamCare wireless cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the iFamCare 1080p Day/Night Wireless Camera with 3.6mm 860321000116 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the iFamCare 1080p Day/Night Wireless Camera with 3.6mm 860321000116:
Specifications
Video
Resolution 1080p, 720p, VGA
Focal Length 3.6mm
Aperture Fixed f/2.0
Frame Rate Max: 30 fps
Night Vision Minimum Illumination: 0 lux (IR on automatically)
Lighting: 10 x IR LEDs
Illumination Distance: 26.2' / 8.0 m
Compression H.264
Audio
Compression G711
Input Internal microphone (1-way input)
Output Internal speaker (1-way output)
Wi-Fi
User Access 4 x simultaneous users
Protocol TCP/IP,HTTP, UDP, DHCP, UPNP, NTP, P2P
IP Addresses DHCP
Protocol Supports 802.11b/g/n
Encryption Supports WPA/WPA2
Antenna Ports 1 x external
General
Pan 355°
Tilt 110°
Laser 0.4 mW
Storage microSD slot
Buttons 1 x Reset
CPU Embedded Linux OS
32-bit RISC embedded processor
USB Interface 1 x Micro USB input
Mobile OS Support iOS 6.0 or later
Android 4.0 or later
Power 5 VDC, 1.5 A
Operating Power Consumption Daytime: 2.5 W
Night: 3 W
Operating Environment Temperature: 32 to 104°F / 0 to 40°C
Humidity: <75% @ 86°F / 30°C
Storage Environment Temperature: -40 to 131°F / -40 to 55°C
Humidity: <90% @ 104°F / 40°C
Certifications and Compliance FCC, CE , ROSH, RCM
Dimensions 5.0 x 8.0 x 4.0" / 12.7 x 20.3 x 10.2 cm
Weight 3.0 lb / 1.4 kg
Packaging Info
Package Weight 1.55 lb
Box Dimensions (LxWxH) 7.2 x 6.3 x 5.2"
The user manual for the iFamCare 1080p Day/Night Wireless Camera with 3.6mm 860321000116 can be downloaded in .pdf format if it did not come with your new wireless cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other iFamCare users keep a unique electronic library for iFamCare wireless camerass, where you can use our link to download the user manual for the iFamCare 1080p Day/Night Wireless Camera with 3.6mm 860321000116.

The user manual lists all of the functions of the iFamCare 1080p Day/Night Wireless Camera with 3.6mm 860321000116, all the basic and advanced features and tells you how to use the wireless cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from iFamCare service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the iFamCare 1080p Day/Night Wireless Camera with 3.6mm 860321000116. User manuals are also available on the iFamCare website under Surveillance - Surveillance Video - Wireless Cameras.



Discussion Question and answer discussion forum concerning user instructions and resolving problems with the iFamCare 1080p Day/Night Wireless Camera with 3.6mm 860321000116

Post new comment to iFamCare 1080p Day/Night Wireless Camera with 3.6mm 860321000116

Subject: Clicking noise
Date: 12.02.2017 01:06:12Author: Thomas
When low light conditions occur, the unit makes a steady clicking sound
