User manual for the ikan D7 Field Monitor Deluxe Kit with 900 Series Battery D7-DK-C

The user manual for the ikan D7 Field Monitor Deluxe Kit with 900 Series Battery D7-DK-C provides necessary instructions for the proper use of the product Professional Video - Monitors - On Camera Monitors.

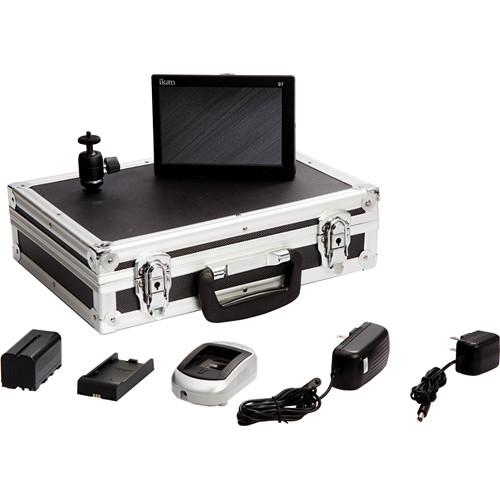

This ikan D7 Deluxe Kit includes the D7 7" monitor, Canon 900 Series battery plate, battery, charger, shoe mount, black and silver hard case, and power supply.

The D7 features a 1280 x 800 HD resolution and 3G-SDI and HDMI inputs. It offers an essential set of monitoring tools, including Peaking, False Color, and Pixel-to-Pixel, for setting up and fine-tuning your shots. A headphone output is available for monitoring audio while you shoot.

All the controls are located at the rear upper edges and include a rotary navigation wheel, input button for switching between live inputs, and four function-assignable buttons. The included battery plate is interchangeable with other supported ikan plates.
If you own a ikan on camera monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ikan D7 Field Monitor Deluxe Kit with 900 Series Battery D7-DK-C in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for ikan D7 Field Monitor Deluxe Kit with 900 Series Battery D7-DK-CDownload user manual for ikan D7 Field Monitor Deluxe Kit with 900 Series Battery D7-DK-C
(PDF file, 1.86 MB)
Additional parameters of the ikan D7 Field Monitor Deluxe Kit with 900 Series Battery D7-DK-C:
Monitor
Display LCD IPS, 7" screen (17.8 cm) (diagonally)
Resolution 1280 x 800
Brightness 400 nit
Contrast Ratio 800:1
Inputs 1x 3G/HD/SD-SDI
1x HDMI
Outputs 1x 3G/HD/SD-SDI loop-out
1x 3.5 mm headphone jack
Viewing Angle 178 x 178°
Aspect Ratio 16:10
Supported Resolutions 3G-SDI:
1920 x 1080p @ 50, 59.94, 60 Hz

HD-SDI:
1920 x 1080p @ 23.97, 24, 25, 29.94, 30 Hz
1920 x 1080i @ 50, 59.94, 60 Hz
1920 x 1080psf @ 23.98, 24, 25, 29.97, 30 Hz
1280 x 720p @ 50, 59.94, 60 Hz

SD-SDI:
720 x 576i @ 50 Hz
720 x 480i @ 60 Hz

HDMI:
1920 x 1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz
1920 x 1080i @ 50, 59.94, 60 Hz
1920 x 1080psf @ 24, 25, 29.97, 30 Hz
1280 x 720p @ 50, 59.94, 60 Hz
720 x 576i/@ 50 Hz
720 x 480i/p @ 59.94, 60 Hz
Response Time 32 ms
Pixel Pitch 0.117 x 0.117 mm
Power Consumption 6.7 W
Color System PAL, NTSC, SECAM (Auto-Detected)
Input Voltage 7-12 VDC
Build Plastic front, aluminum back
Operating Temperature 14 to 140°F (-10 to 60°C)
Dimensions 7 x 4.9 x 1" (17.8 x 12.4 x 2.5 cm)
Weight 1 lb (0.45 kg)
Packaging Info
Package Weight 7.05 lb
Box Dimensions (LxWxH) 15.4 x 12.1 x 4.8"
